Wildland Type I and II
The Ferrara Type l and ll Wildland Fire Trucks will meet the needs of your response geography, regardless of the terrain and the obstacles that your response area puts in front of you. Type l and ll have a 20 degree approach Custom cabs that will easily adapt to the toughest changes in terrain. Customize your ideal apparatus to create a functional, safe, and versatile wildland fire truck. These vehicles are available in 4X2 & 4X4 drivetrains with wheelbases that will allow tight turning radiuses required in Wildland Firefighting.
Features and Options

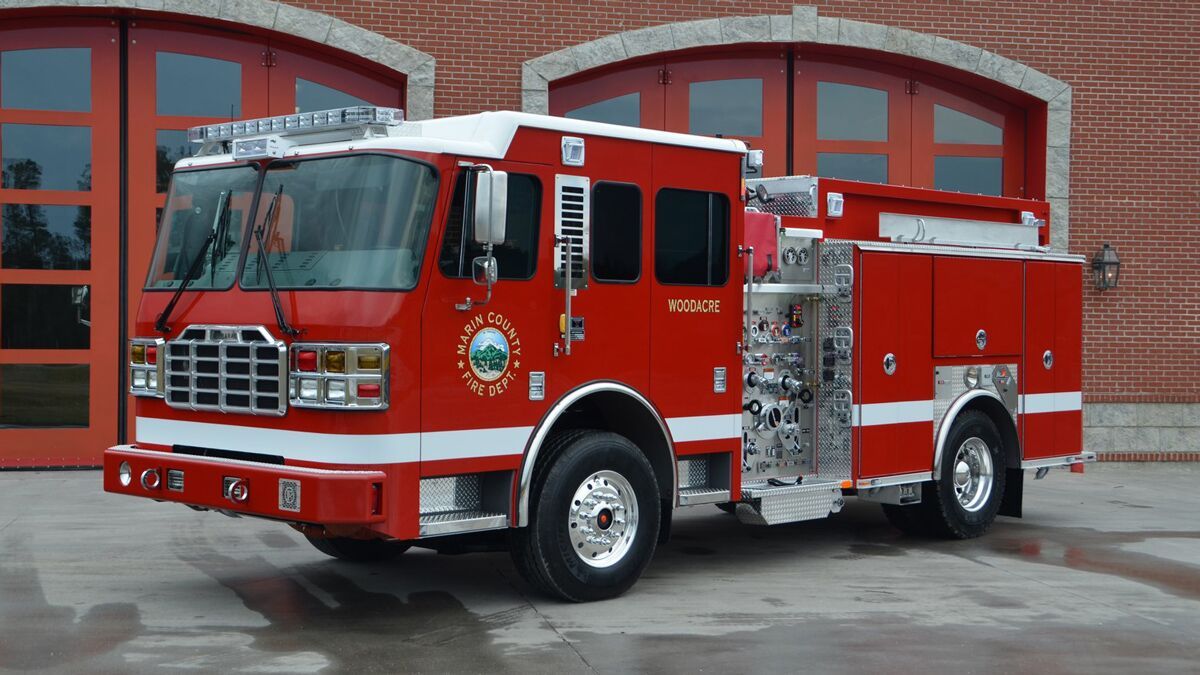

20 degree angle of approach

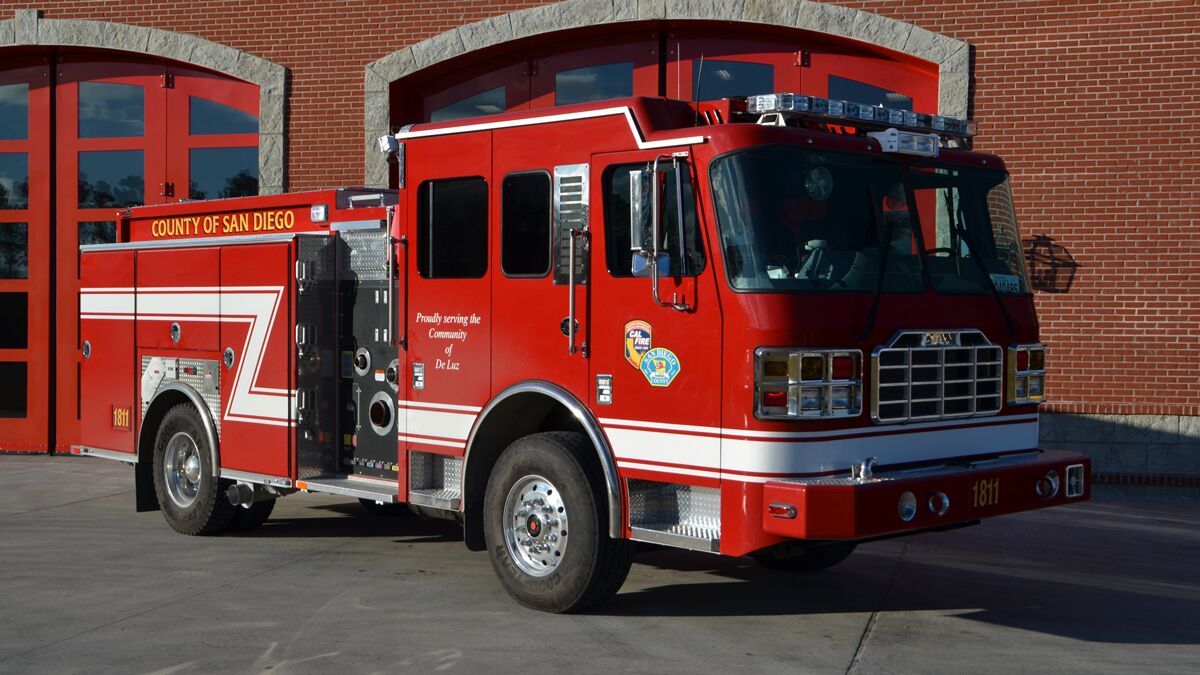

Barrier doors

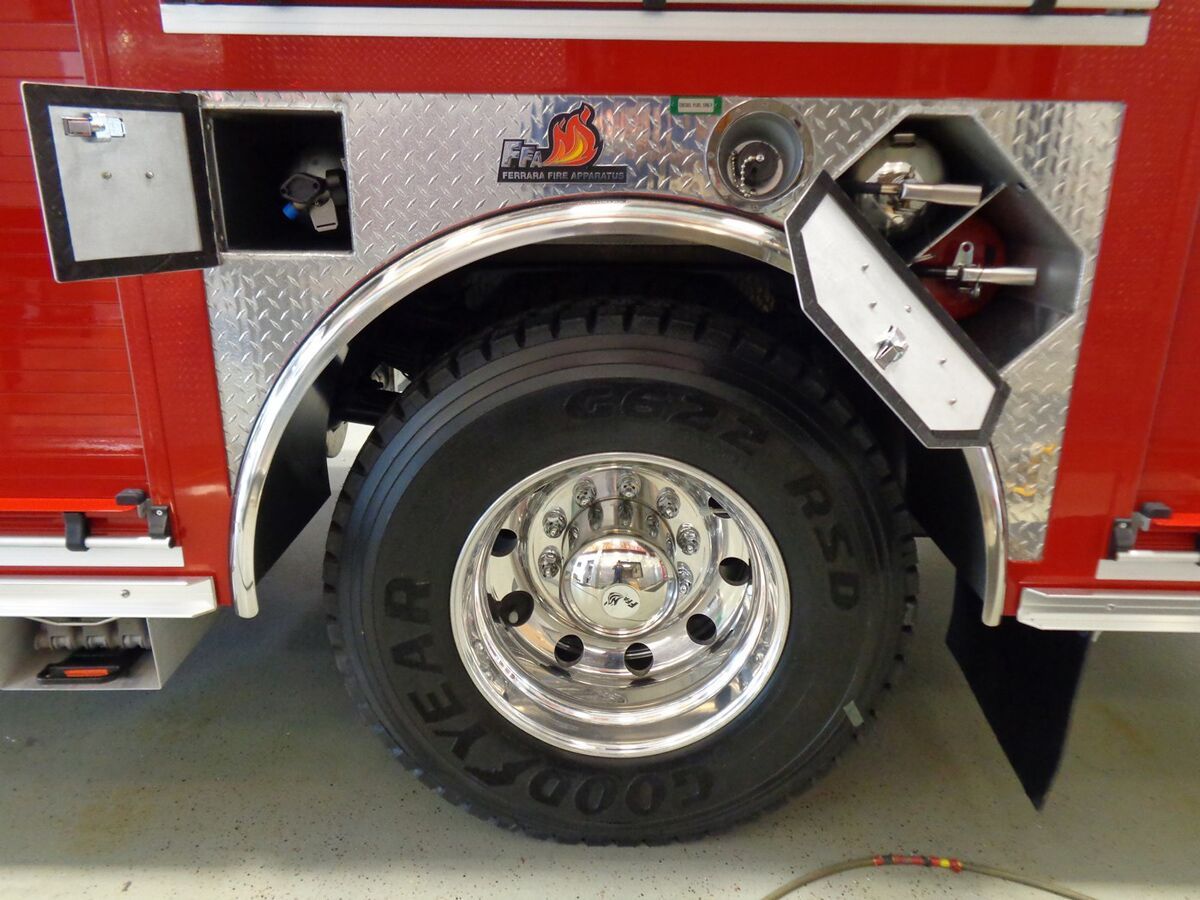

Extinguisher storage

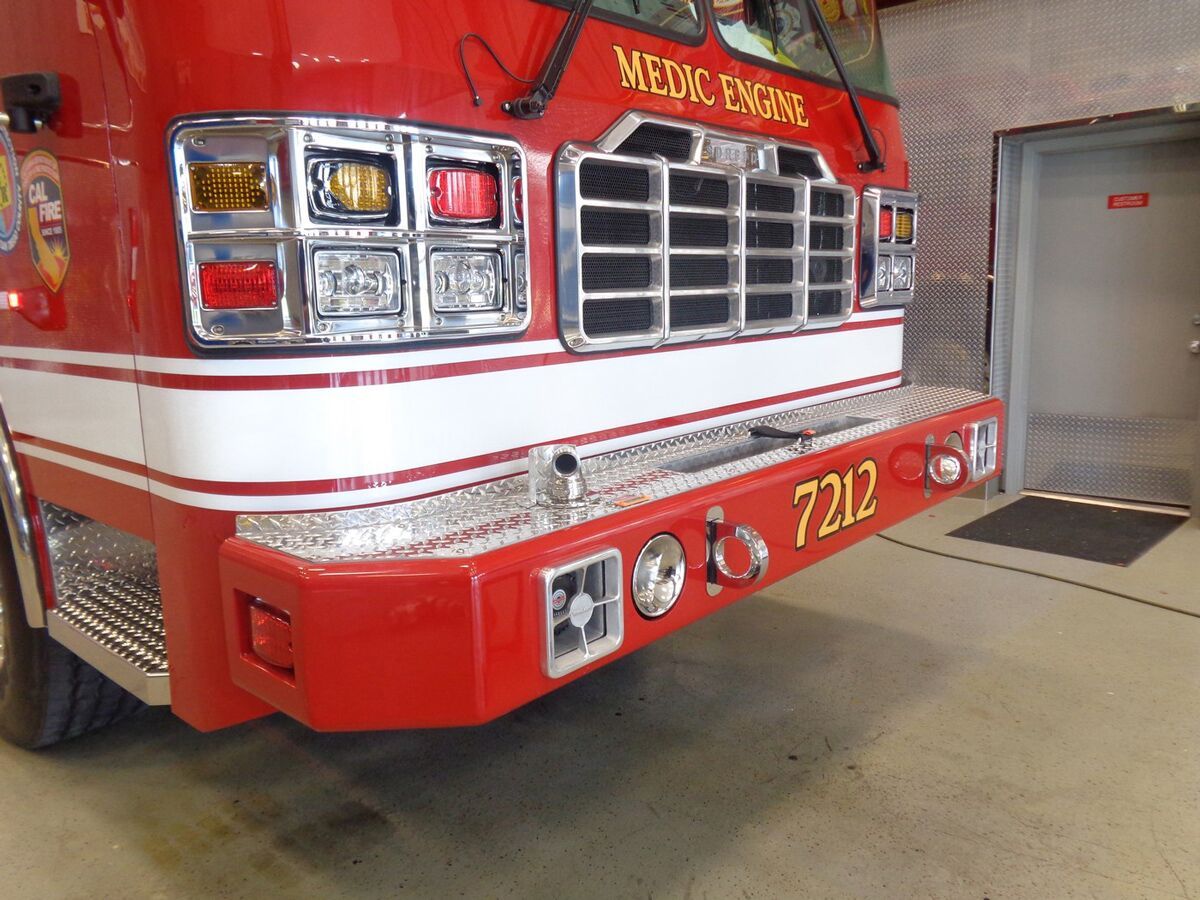

Frame rail bumper
Hose, ladder and backboard storage

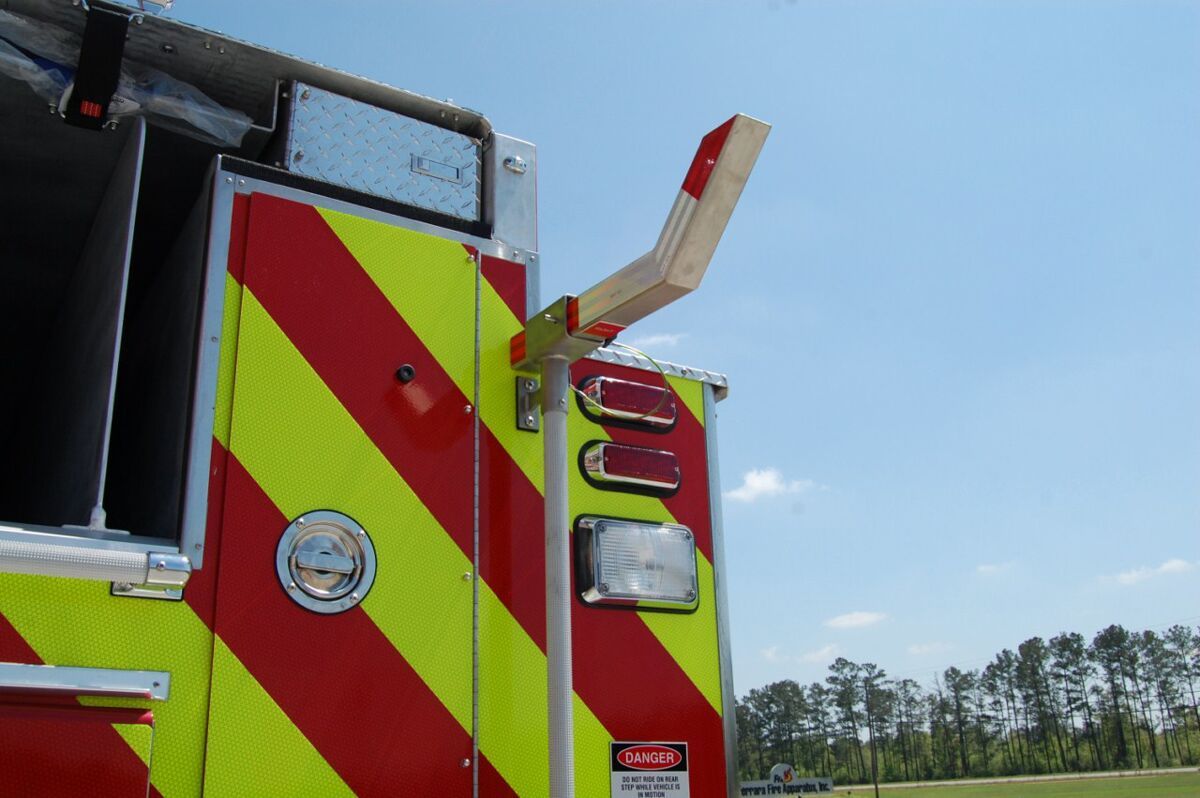

I-zone

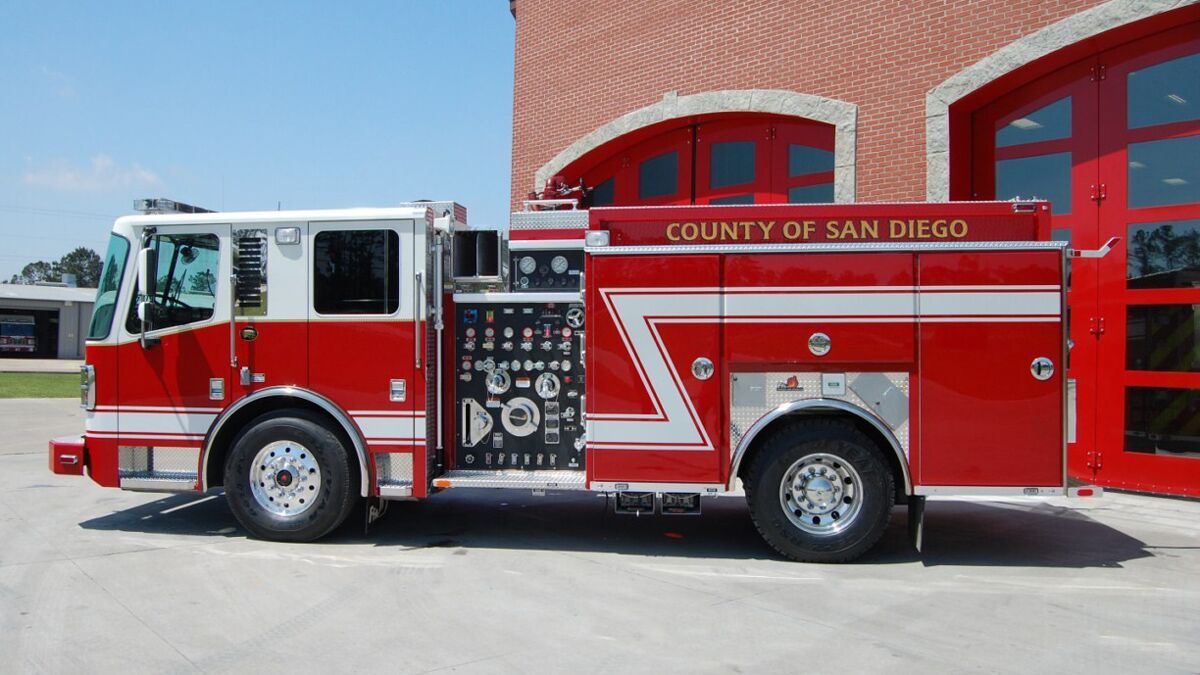

Short wheelbase

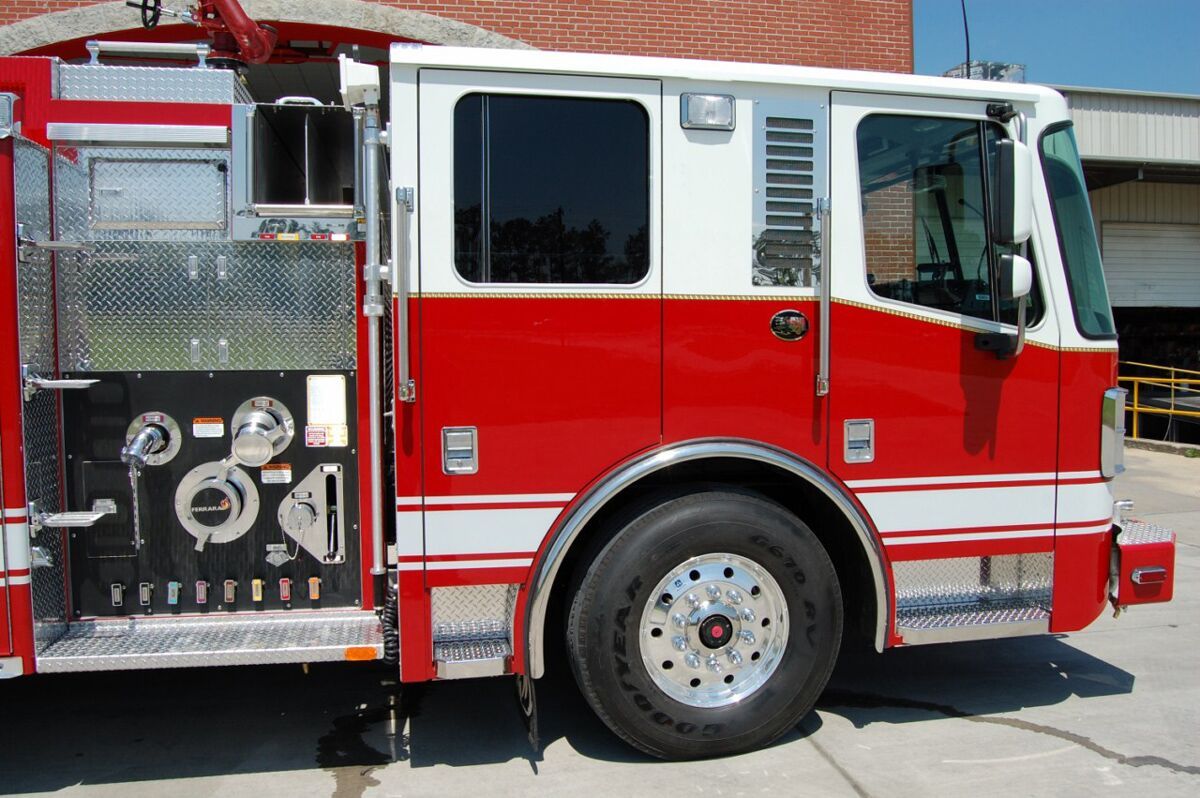

SMFD Cab

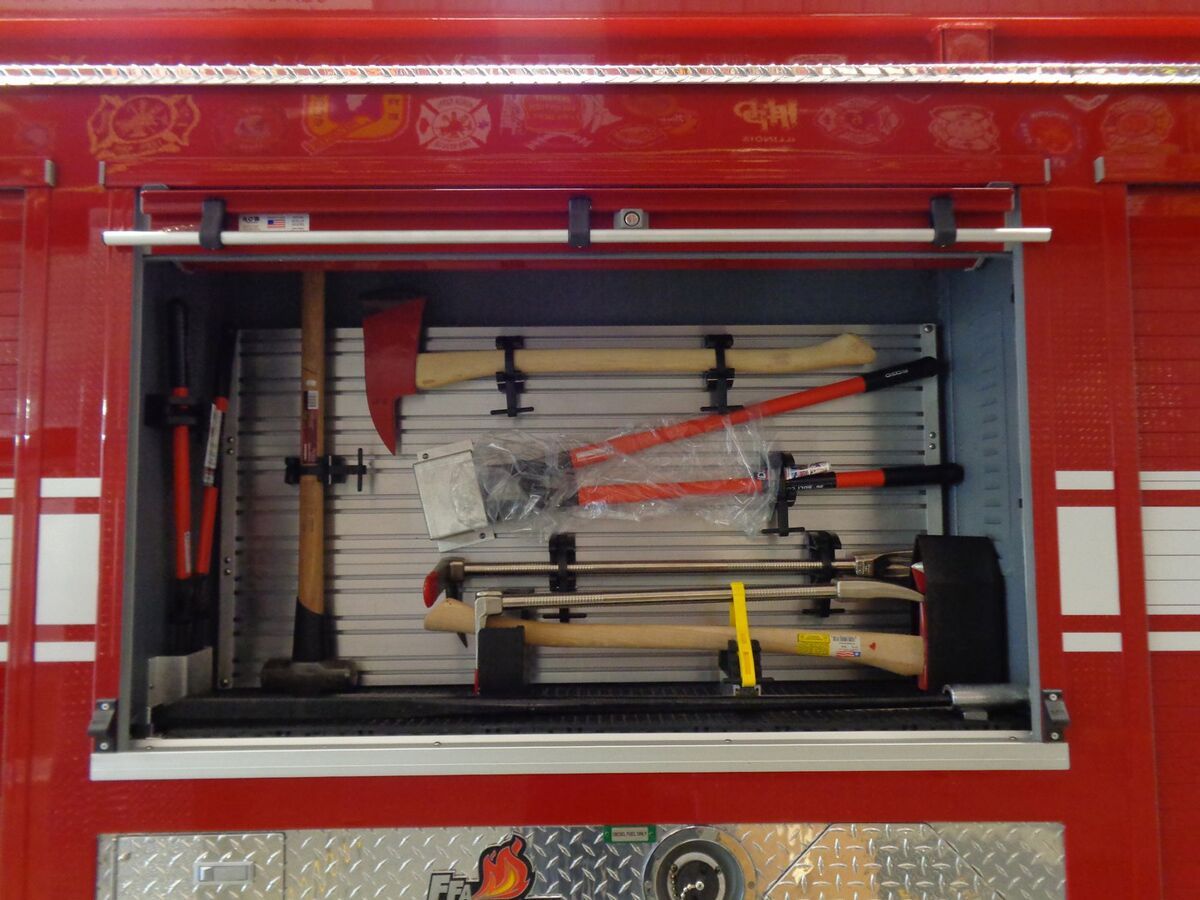

Tool storage
Specifications
| Chassis | 4×2 Cinder up to 450 hp 4×2 or 4×4 Igniter up to 450 hp, std or 20° approach 4×2 or 4×4 Inferno up to 605 hp, std or 20° approach 4×2 or 4×4 commercial chassis |
| Body | Extruded Aluminum Modular 12 Gauge Galvanneal Modular 3/16” Aluminum Modular 12 Gauge Stainless Steel |
| Compartments | Standard or rescue with full height compartments as deep as 28” |
| Ladder Storage | Thru-The-Tank TTT storage module Left or right body side Hydraulic ladder rack |
| Pump | Available in PTO, Mid-Ship and Auxiliary styles from 120 GPM to 2250 GPM |
| Pump Controls | Side mount or rear mount pump panels |
| Tank Size | Available from 200 gallons to 1250 gallons |
| Foam System | CAFS up to 200 CFM Class A injection from 0.1 to 12.0 GPM concentrate |
| Warranty | 2 year mechanical custom chassis, custom cab and body 10 year body and custom cab structural 10 year plumbing 10 year paint Lifetime booster tank |
| Brochure | Download |
