LP-102 Ladder
The LP-102 Ladder Fire Truck is perfect for smaller fire stations because of the small door openings and the limited length of vehicle that can be kept. The LP-102 can be built as low as 10’ 10” with a pre-piped waterway and 10’ 4” without waterway and, if needed, the truck can also come in under 39’ overall length.
Features and Options
Use our optional 500 pound capacity Rope Rescue Pulley system to safely and easily perform high angle rescue operations.

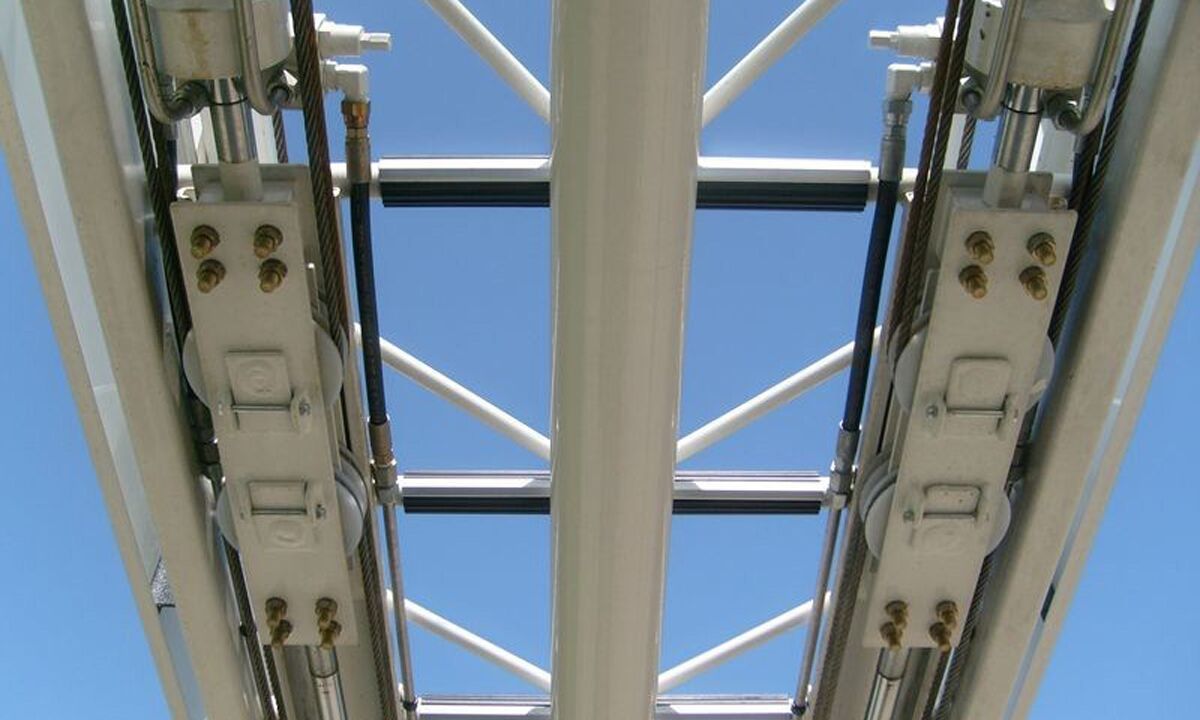

Extension/retraction is smooth and rapid with our dual Siamese extension cylinders. Why settle for 2 extension cylinders when you can have 4?

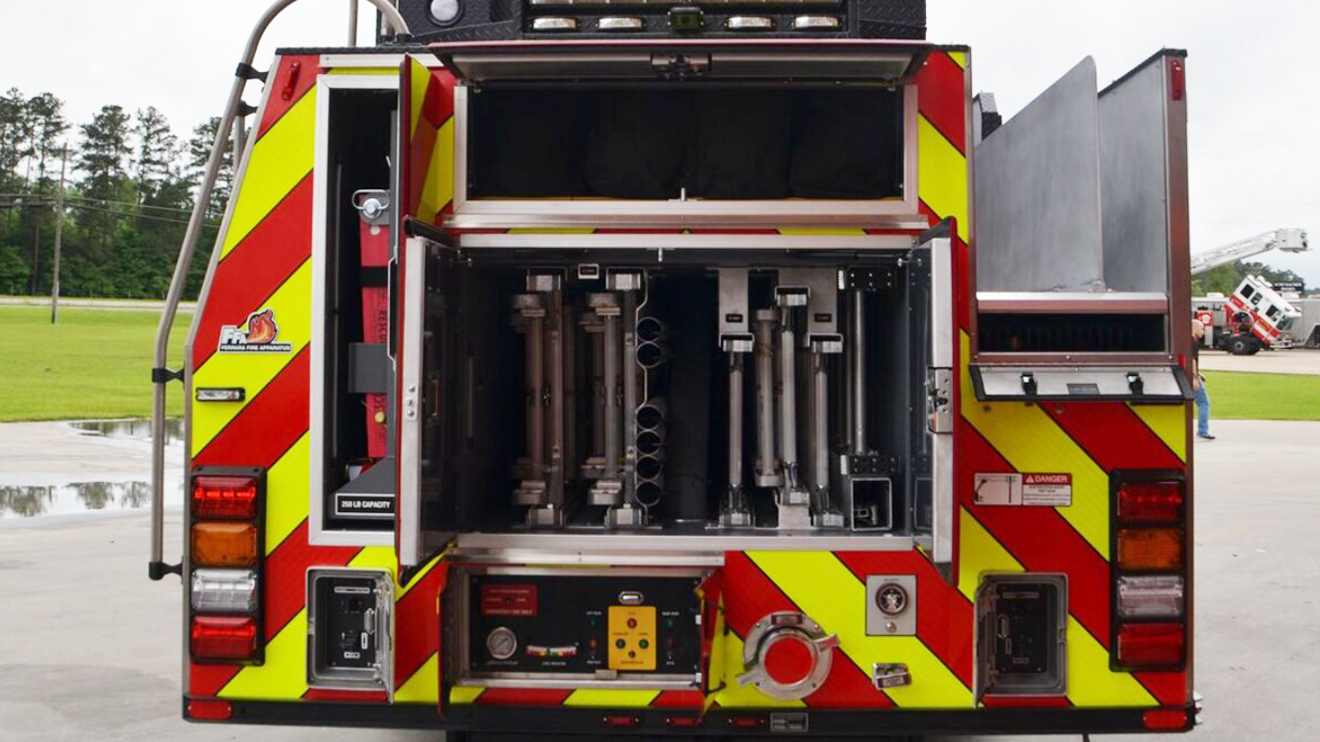

Max out your compartment space with our HD-77 MVP Rescue Ladder. Over 205 cubic feet of usable storage space plus over 150’ of ground ladders in the rear torque box opening. The right side EZ-Stack hose bed can car

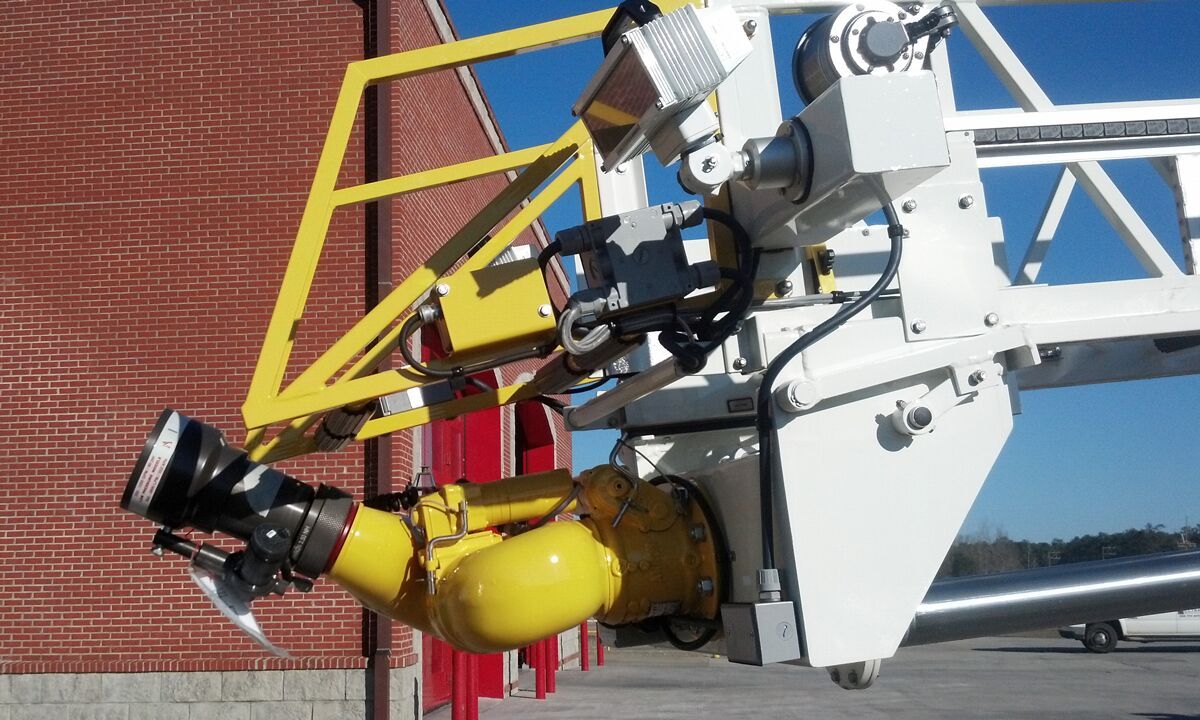

Quickly put out a fire in an attic or upper void area with our optional 165 vertical travel monitor. This allows you to flow a master stream at the ladder’s rated capacity up to 30 degrees above horizontal.

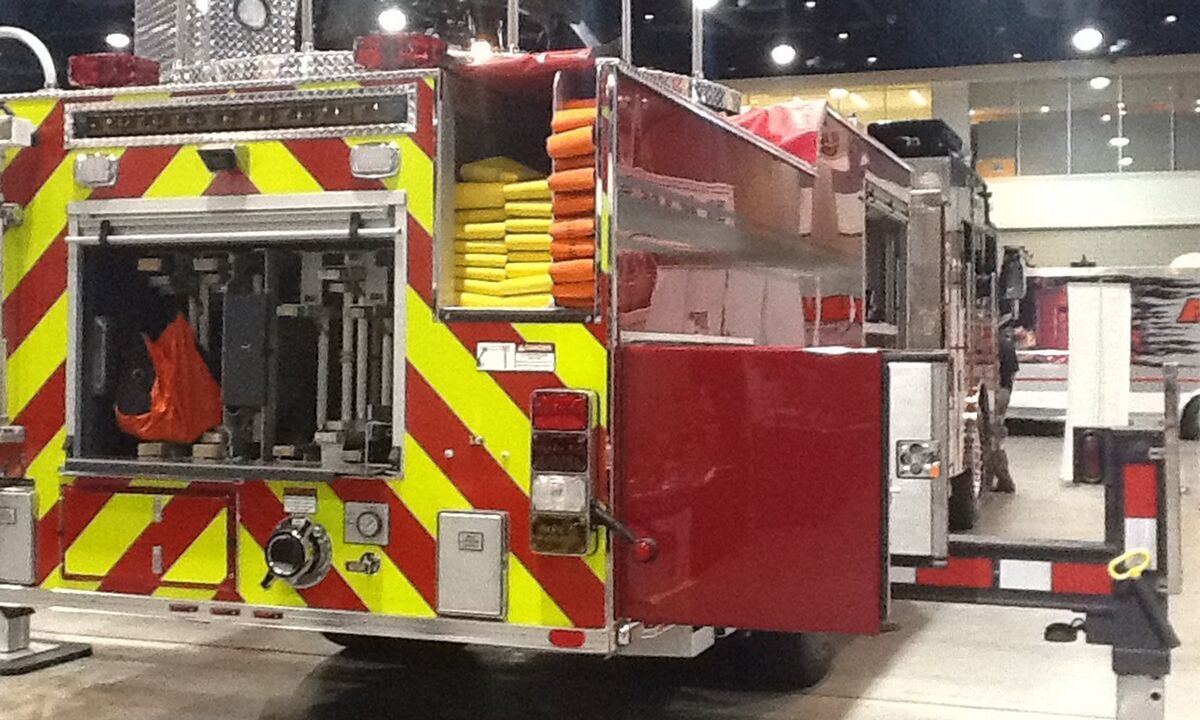

Ferrara’s HD-77 with right side EZ-Stack hose bed can easily carry 1000’ x 5” and 400’ x 2-1/2” and you still have a full height compartment ahead of the right wheel.
Save set up time and stop guessing where the auxiliary ground pads should be placed. We offer an optional recessed magnet in the auxiliary pad, allowing you to connect to the stabilizer foot pad prior to deployment.

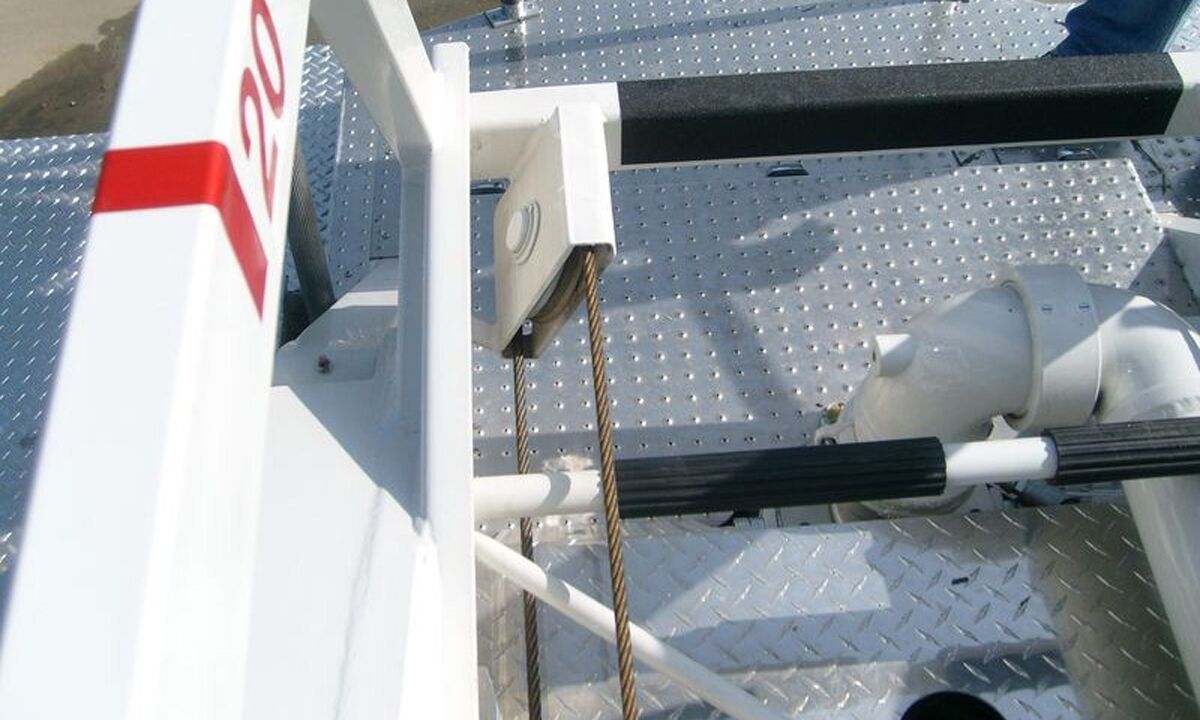

All sheaves are fully enclosed, so you don’t have to worry about getting PPE or other gear caught between the cable and pulley.

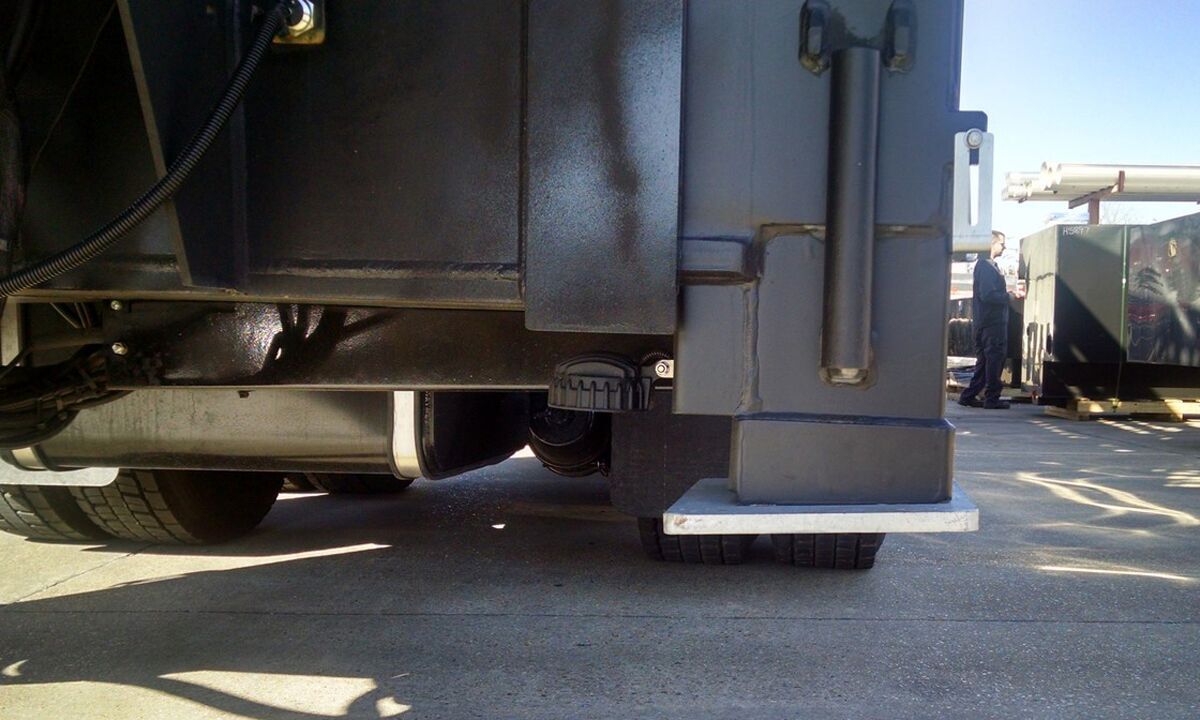

Stabilizer foot pads are angled slightly down toward the middle of the truck. During the winter, when you park the truck in your station, snow, ice and slush will melt and drain off the foot pad instead of melting there and causing the pad to rust.

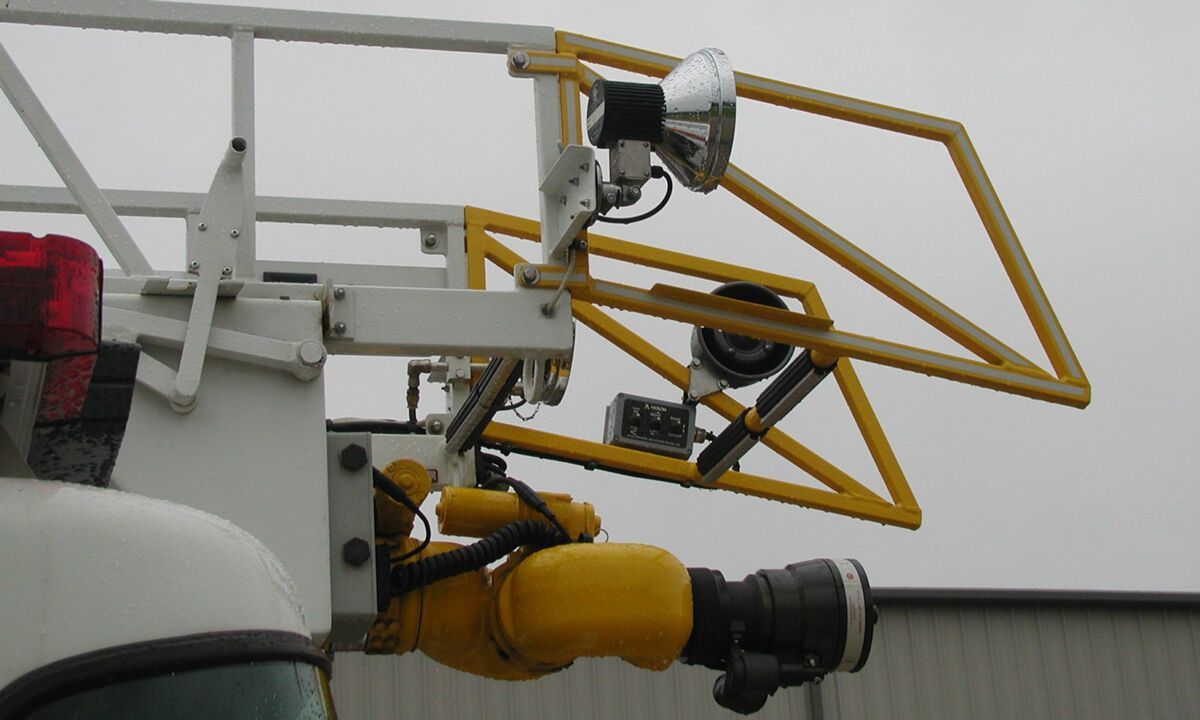

Standard on all Ferrara aerial ladders is an 11 degree angled, bolt-on egress section. The downward angle allows for easy transition to a window or roof. And because it’s bolt-on, is easily replaced if ever damaged.

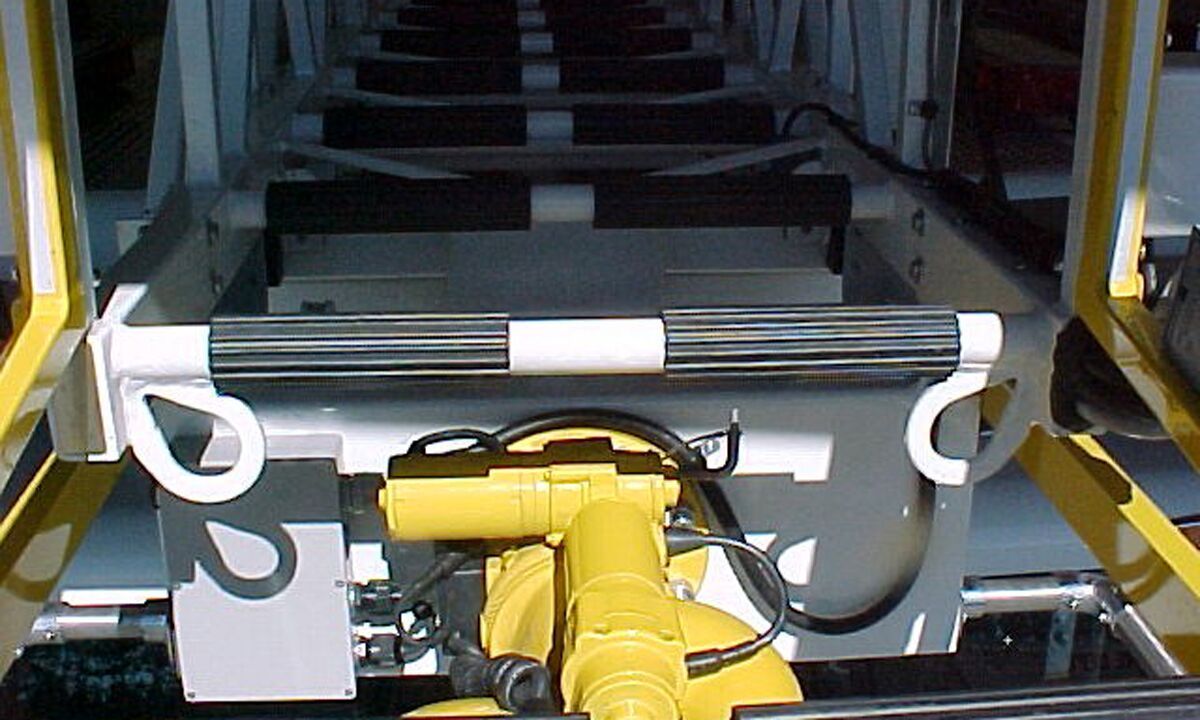

Standard equipment on all Ferrara aerials is a pair of load lifting eyes at the ladder tip. Rated at 500 pounds as a pair, they give you added rescue capability.
Supply a standpipe without disconnecting the nozzle on the aerial monitor with our optional 2-1/2” discharge at the ladder tip.

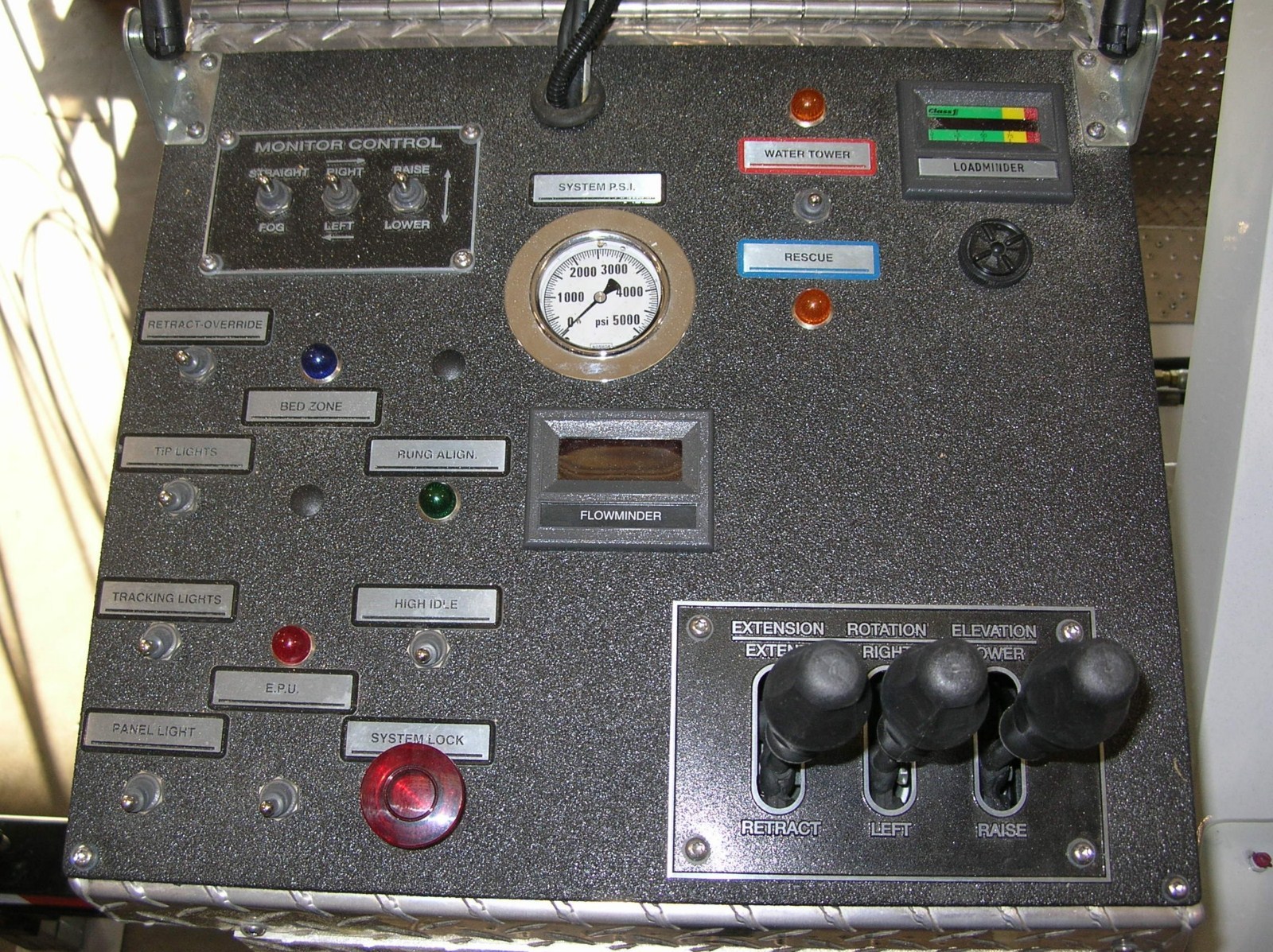

The turntable control console has a clean design with easy to find and read instruments. The ladder controls are direct hydraulic, requiring no manual overrides.
Well-lit ladder rungs for safe and easy night operations
Specifications
| Chassis | Inferno up to 605 hp |
| Body | Extruded Aluminum – quint or truck (no pump/tank) |
| Compartments | Quint 1: Left side full height x 24” deep; Right side full height w/EZ-Stack hose bed Quint 2: Left and right side full height 24” deep lower/12” deep upper w/hose chutes Truck: Left and right side full height, 24” deep lower/transverse upper ahead of aerial |
| Ladder Storage | Up to 200’ ground ladders enclosed in full length torque box |
| Pump | Up to 3000 gpm pump |
| Tank Size | Up to 500 gallons |
| Ladder and Reach | 4-section heavy duty rear mount aerial with – 8° to +72° operational envelope Over 180° rotation at – 8° 102’ vertical reach at 72° and 97’ horizontal reach at 0° Able to overcome setbacks with impressive 57’ vertical and 84’ horizontal reach at 30° |
| Rated Load Capacity | 500 pounds flowing 1250 GPM Up to 1750 pounds distributed + 500 pounds at the tip while flowing 1250 GPM No restrictions on aerial or monitor movement or placement while flowing 1250 GPM |
| Warranty | 10 year cab and body structural 25 year aerial structural 10 year waterway and waterway seals 15 year torque box & stabilizer 2 year mechanical, chassis, cab, body and aerial |
