Industrial Inundator SP-85 Boom
The Ferrara Industrial Inundator SP-85 Boom Fire Truck is essential for stream placement, providing effective cooling and extinguishment. The SP-85 Boom fire truck enables your department to flow in excess of 4000 gpm with maximum versatility, with a combined US Fire Pump HVP pump and the Schwing 85’ three-section articulating boom with an 8” waterway.
Features and Options

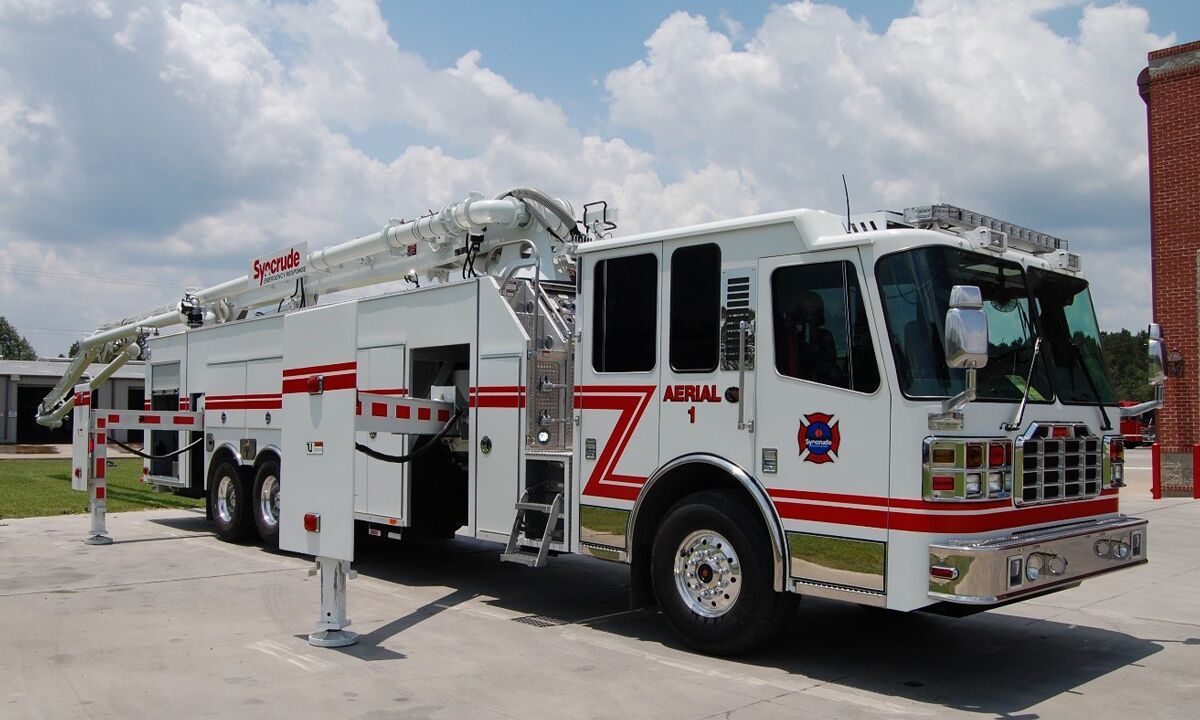

Available Top Mount Controlled Rear Mount Pump Configuration

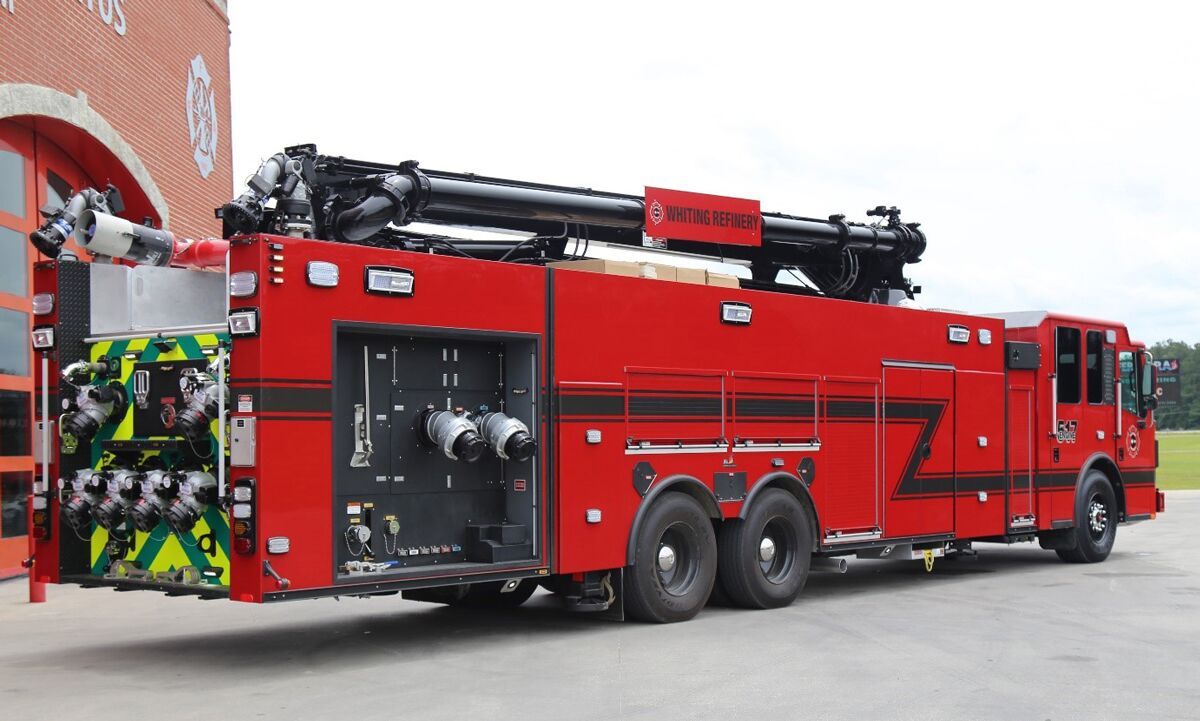

Dual 8” NST LDH Discharges

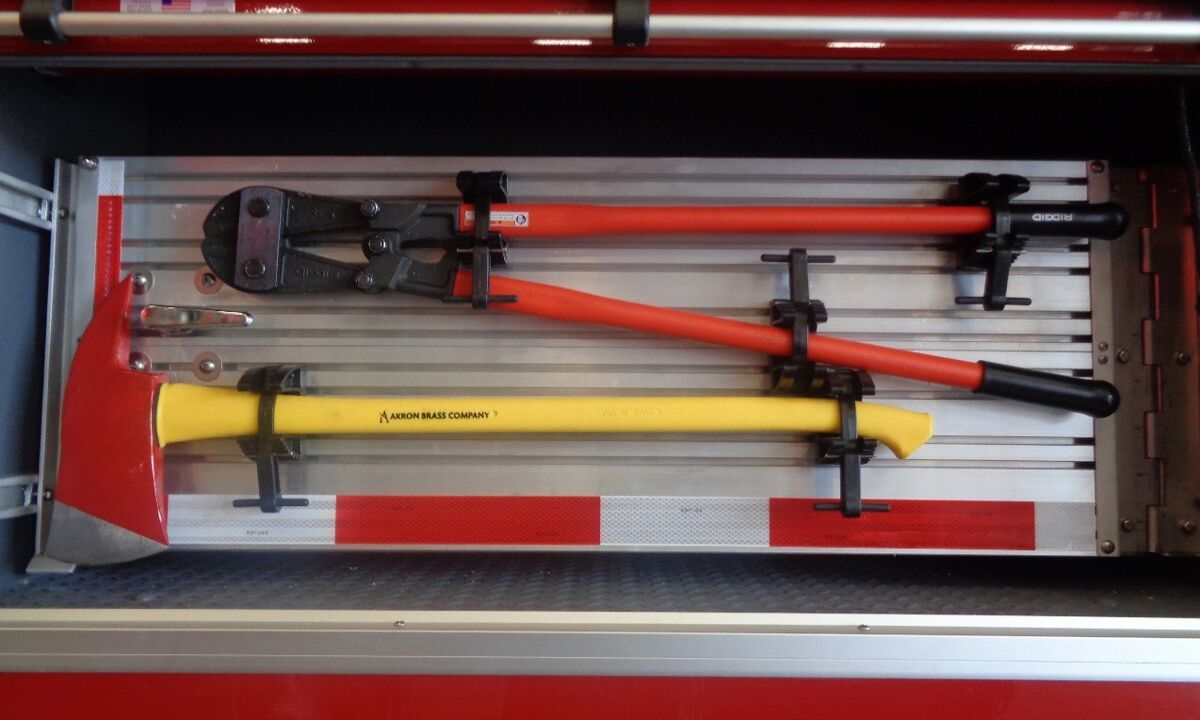

Hinged Tool / Fitting Storage Board Systems

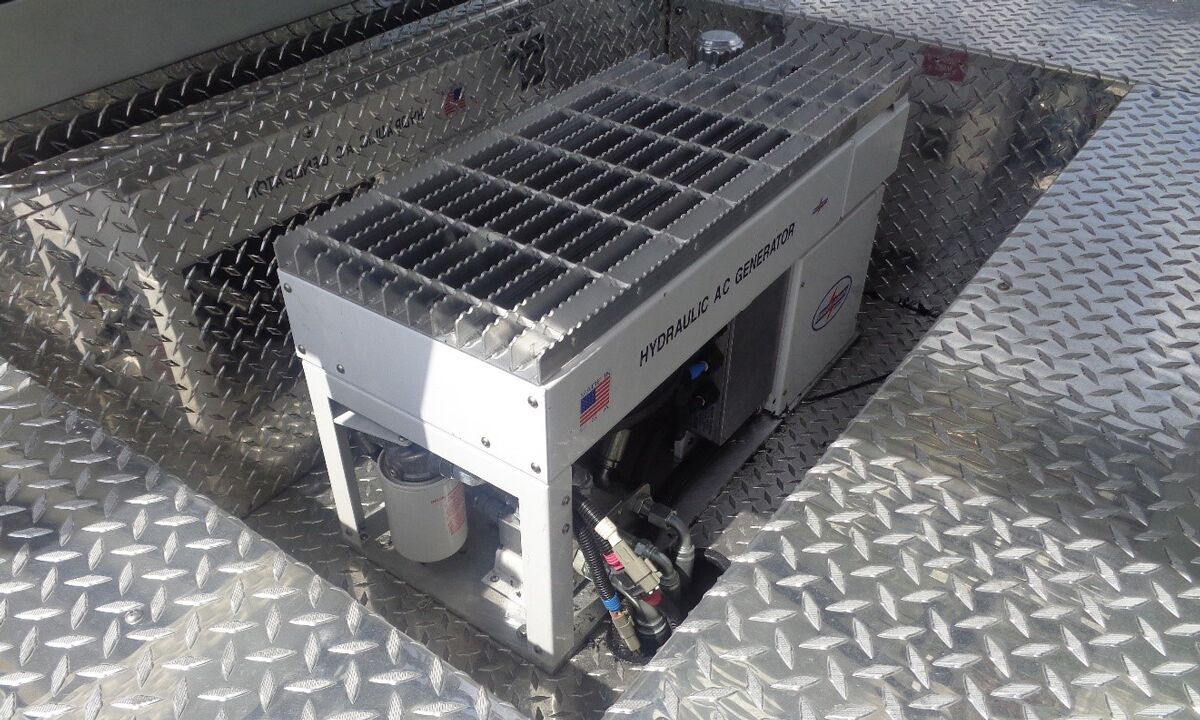

Hydraulic Generator System: Smart Power, Harrison, or Onan

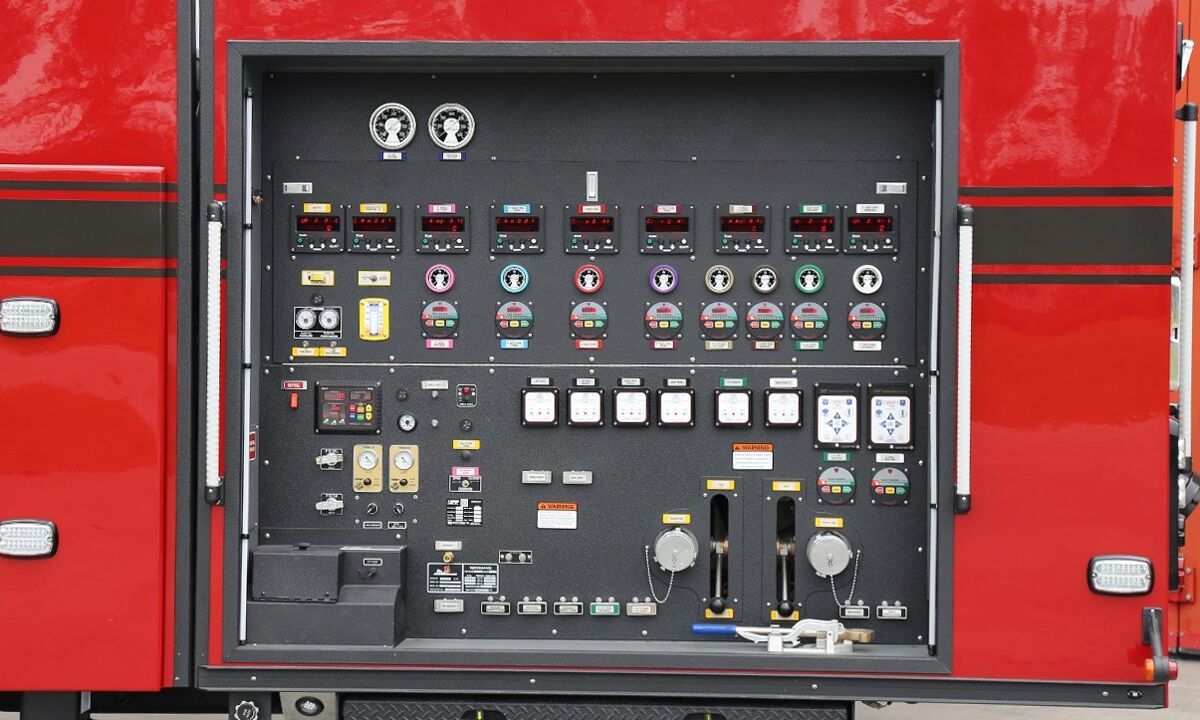

Open or enclosed rear pump control panel
Rear Cab Wall Tool Storage Systems

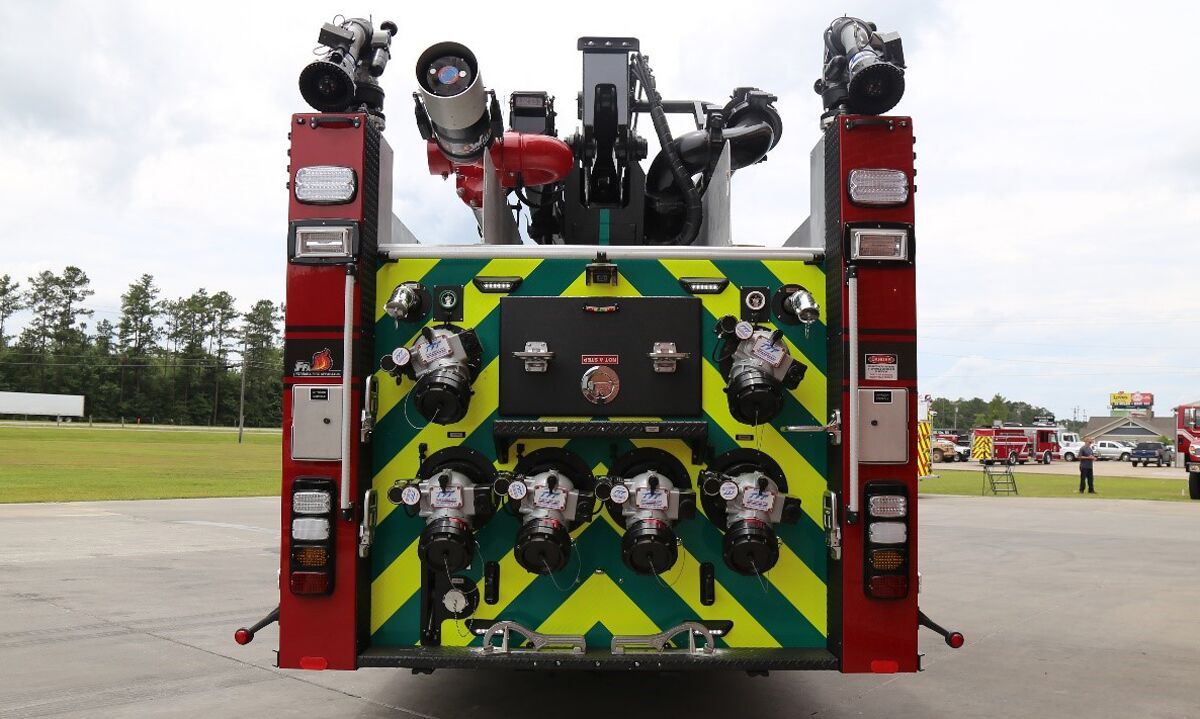

Rear Inlet / Outlet Connections with remote controlled TFT Jumbo Ball Valves with integral rear Deck Gun Plumbing

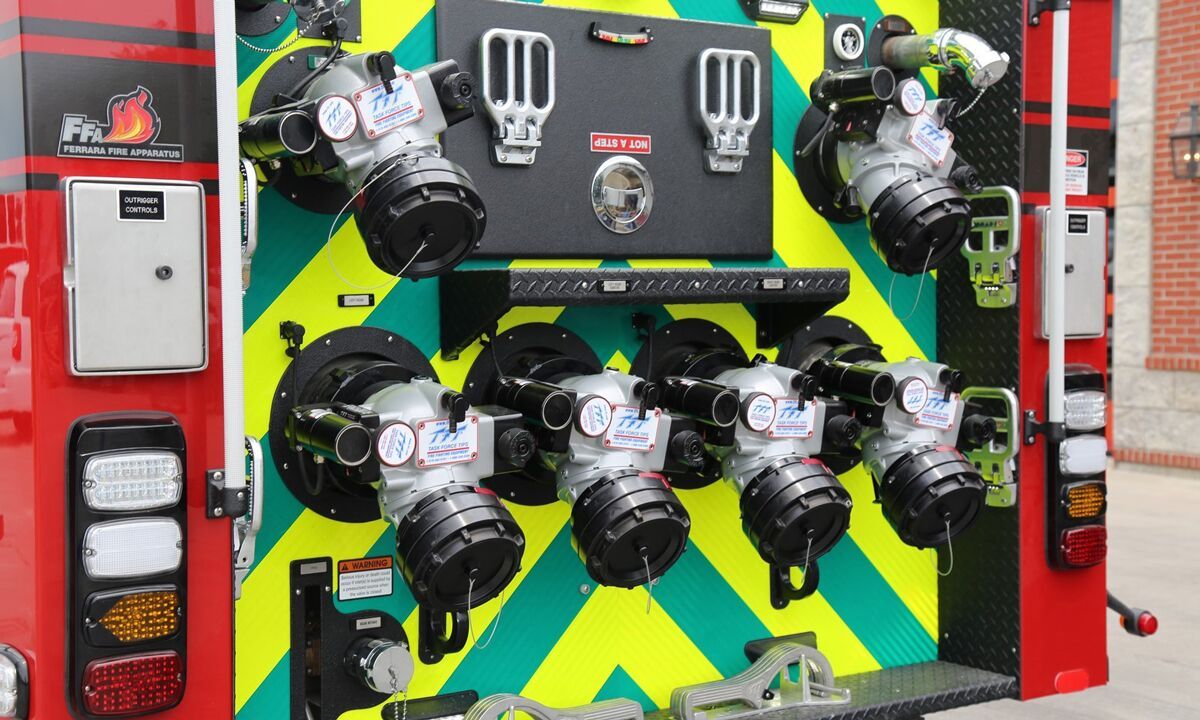

Remote Control Task Force Tips Low Profile Jumbo Ball Intake Valves

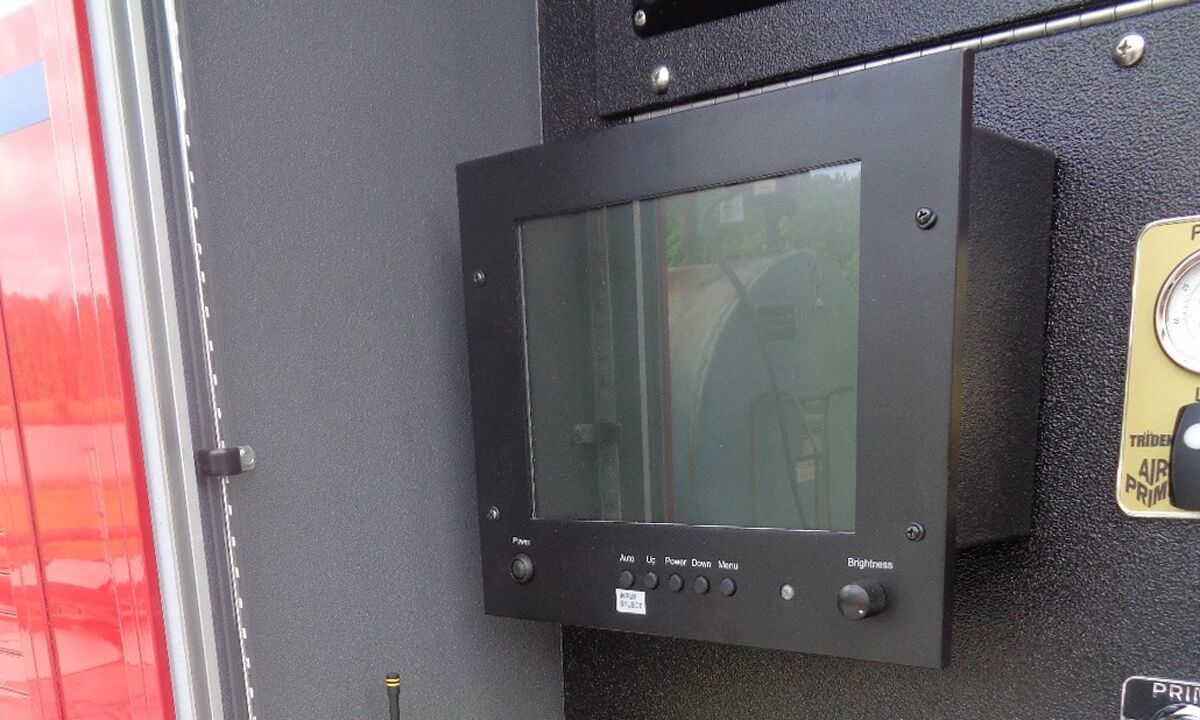

Sidewinder Thermal Imaging Camera System
Specifications
| Chassis | Inferno 600 hp |
| Body | Extruded Aluminum Modular 12 Gauge Stainless Steel |
| Compartments | Standard or rescue with full height compartments as deep as 28” |
| Pump | US Fire Pump 5500 gpm High Velocity Pump (HVP) in cast iron, cast bronze or stainless steel construction with pressurized lubrication system |
| Pump Control | Side controlled rear mount, top controlled rear mount |
| Tank Size | 750 gallons with split tank design available |
| Foam System | Foam Pro AccuMax 3300 Series Multi-Point Direct Injection System |
| Intakes | Four 8” NST |
| Discharges | Multiple configurations available |
| Aerial Devices | 85’ three section articulating boom |
| Monitors | Dual Elkhart, Akron, or Task Force Tips 2000 gpm |
| Warranty | Cab structural and body structural is 10 year or 100,000 miles |
| Brochure | Download |
