Heavy Duty 77 Ladder
The HD-77 Ladder Fire Truck is a Ferrara quint that is the most popular aerial every year. The HD-77 has the size tank of up to 500 gallons on a single axle or 1000 gallons on a tandem. With a compact wheelbase that’s shorter than some top mount custom pumpers, the HD-77 ladder fire truck is a tool that you want in your belt.
Features and Options

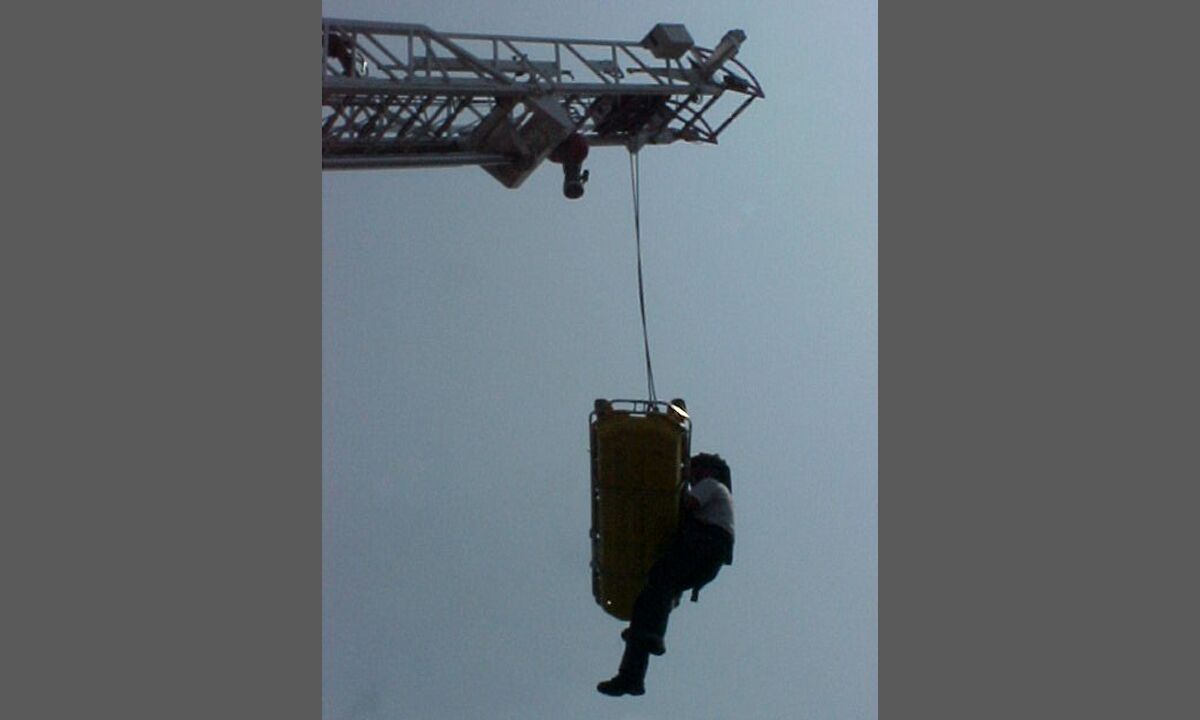

Use our optional 500 pound capacity Rope Rescue Pulley system to safely and easily perform high angle rescue operations.

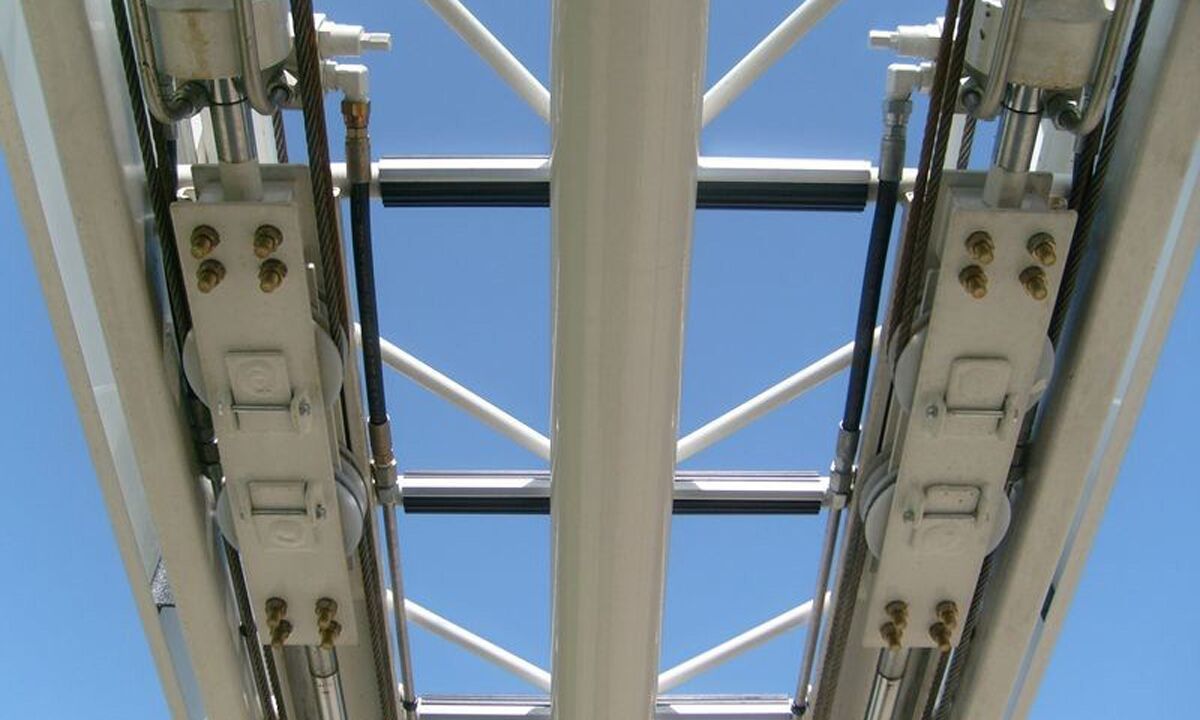

Extension/retraction is smooth and rapid with our dual Siamese extension cylinders. Why settle for 2 extension cylinders when you can have 4?

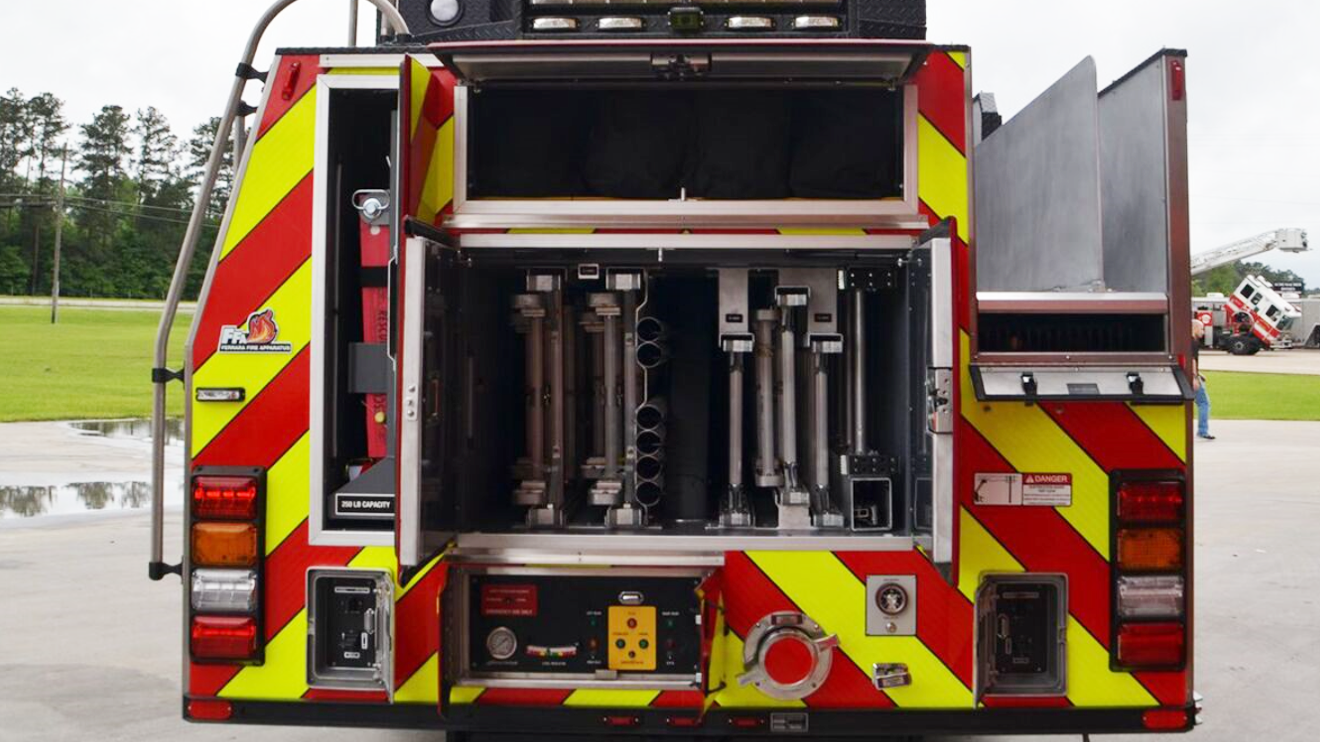

Max out your compartment space with our HD-77 MVP Rescue Ladder. Over 205 cubic feet of usable storage space plus over 150’ of ground ladders in the rear torque box opening. The right side EZ-Stack hose bed can carry 1000’ x 5” and 400’ x 2-1/2”.

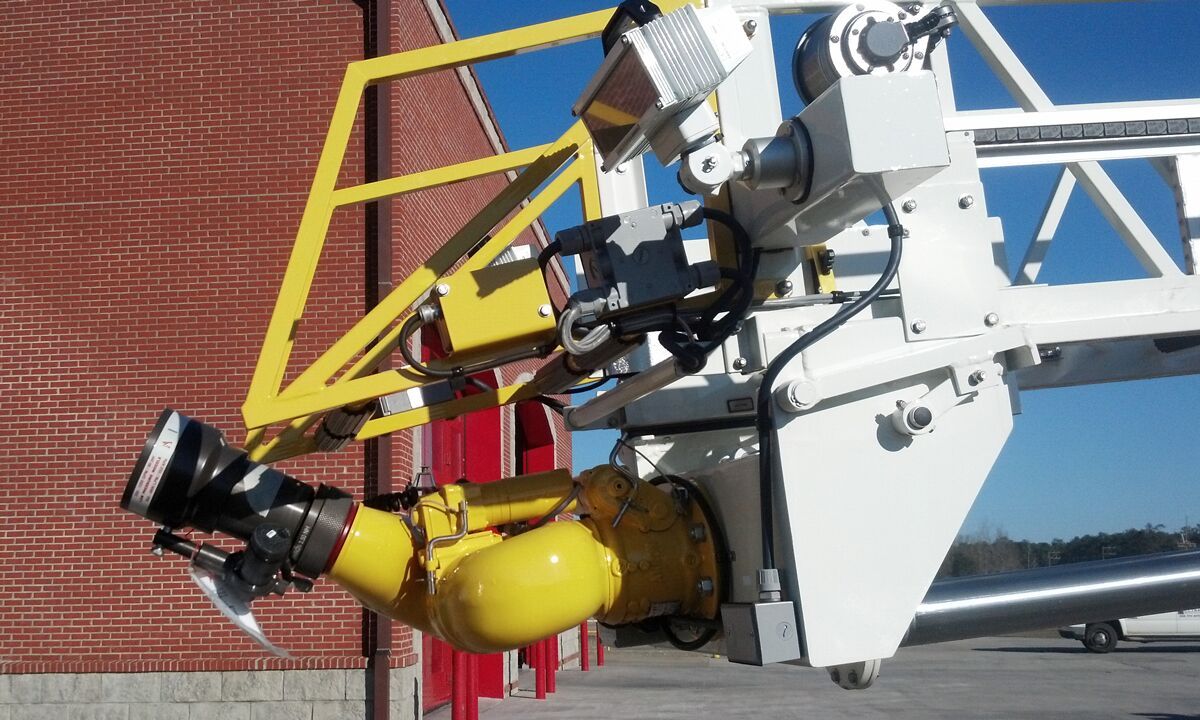

Quickly put out a fire in an attic or upper void area with our optional 165 vertical travel monitor. This allows you to flow a master stream at the ladder’s rated capacity up to 30 degrees above horizontal.

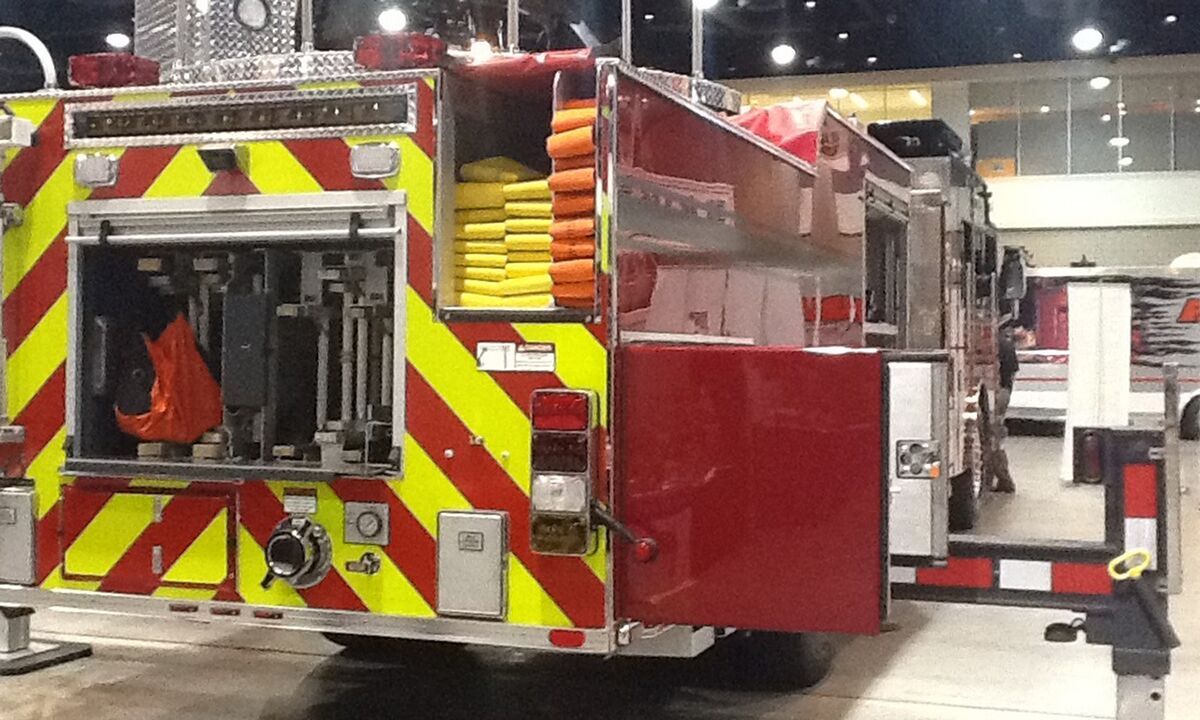

Ferrara’s HD-77 with right side EZ-Stack hose bed can easily carry 1000’ x 5” and 400’ x 2-1/2” and you still have a full height compartment ahead of the right wheel.

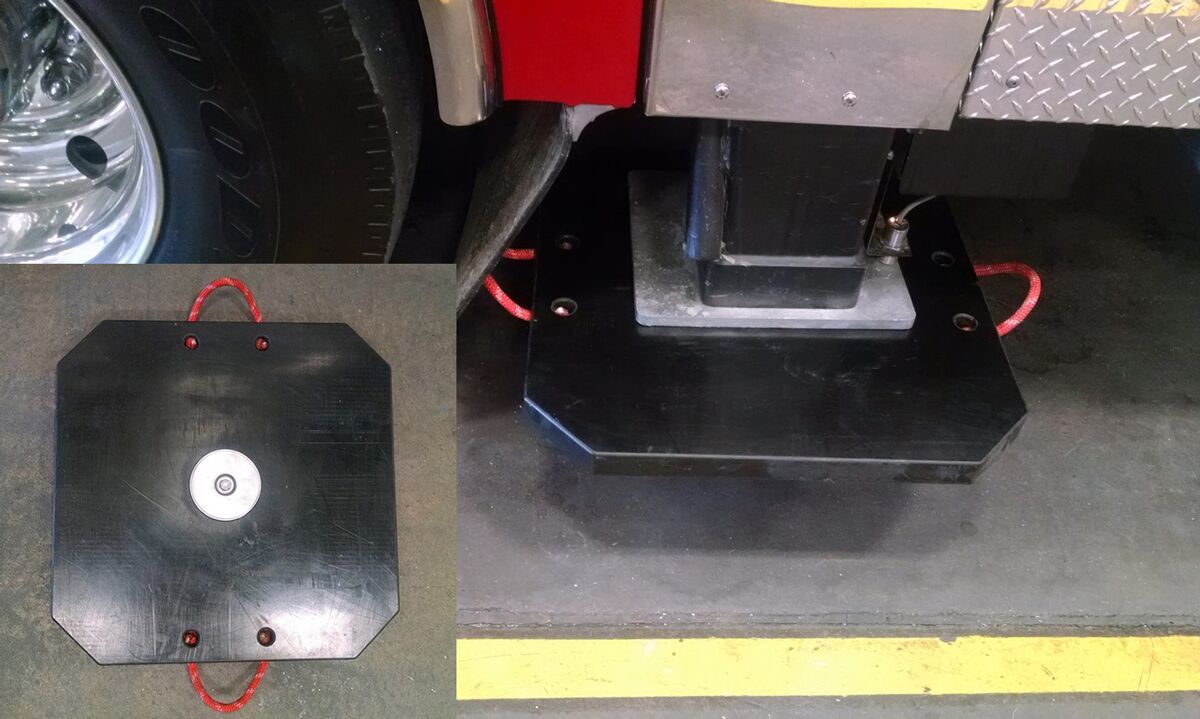

Save set up time and stop guessing where the auxiliary ground pads should be placed. We offer an optional recessed magnet in the auxiliary pad, allowing you to connect to the stabilizer foot pad prior to deployment.

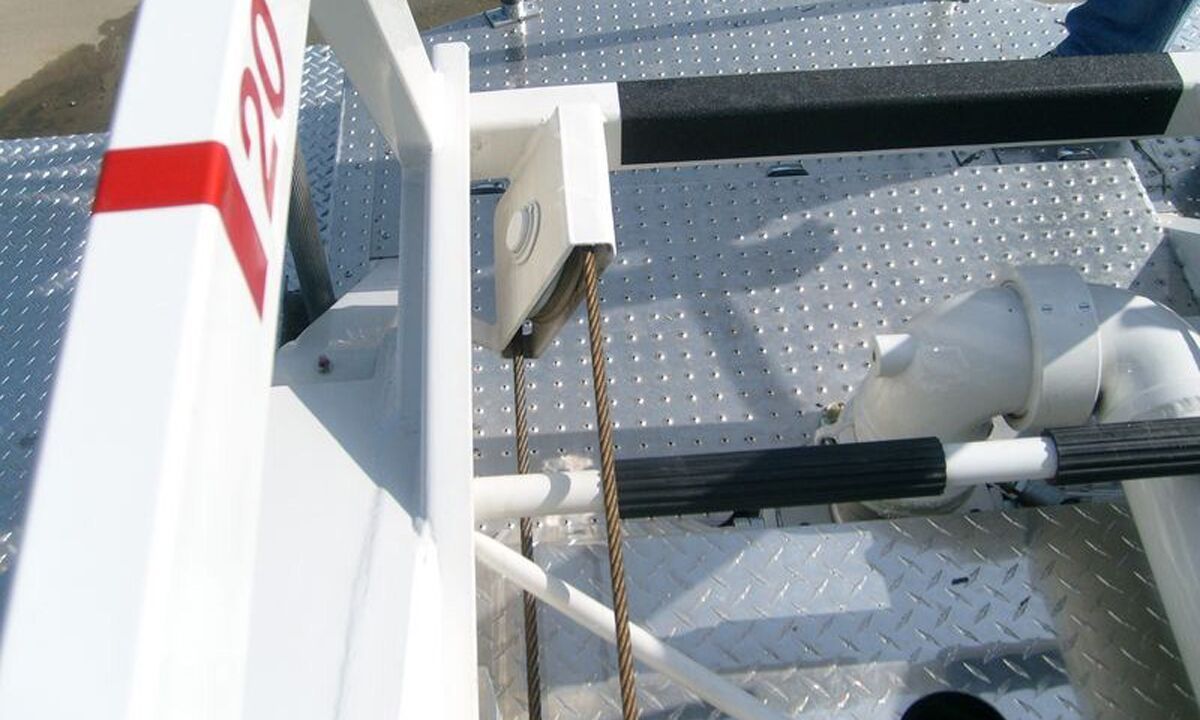

All sheaves are fully enclosed, so you don’t have to worry about getting PPE or other gear caught between the cable and pulley.

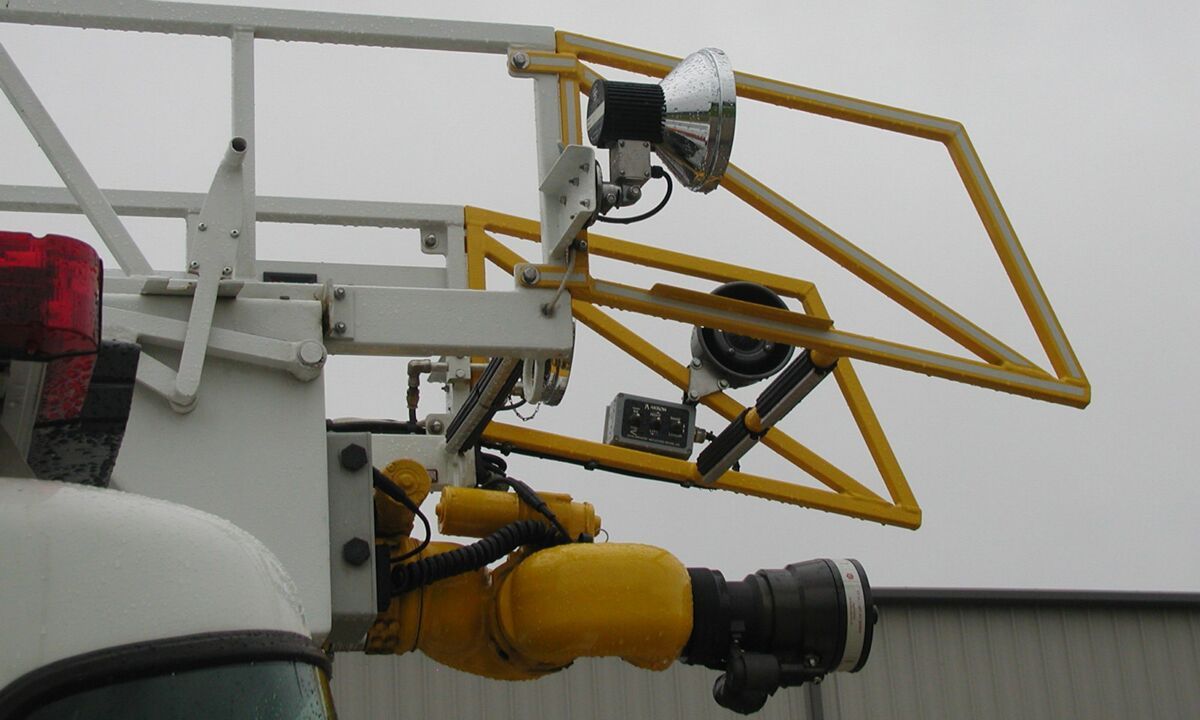

Standard on all Ferrara aerial ladders is an 11 degree angled, bolt-on egress section. The downward angle allows for easy transition to a window or roof. And because it’s bolt-on, is easily replaced if ever damaged.

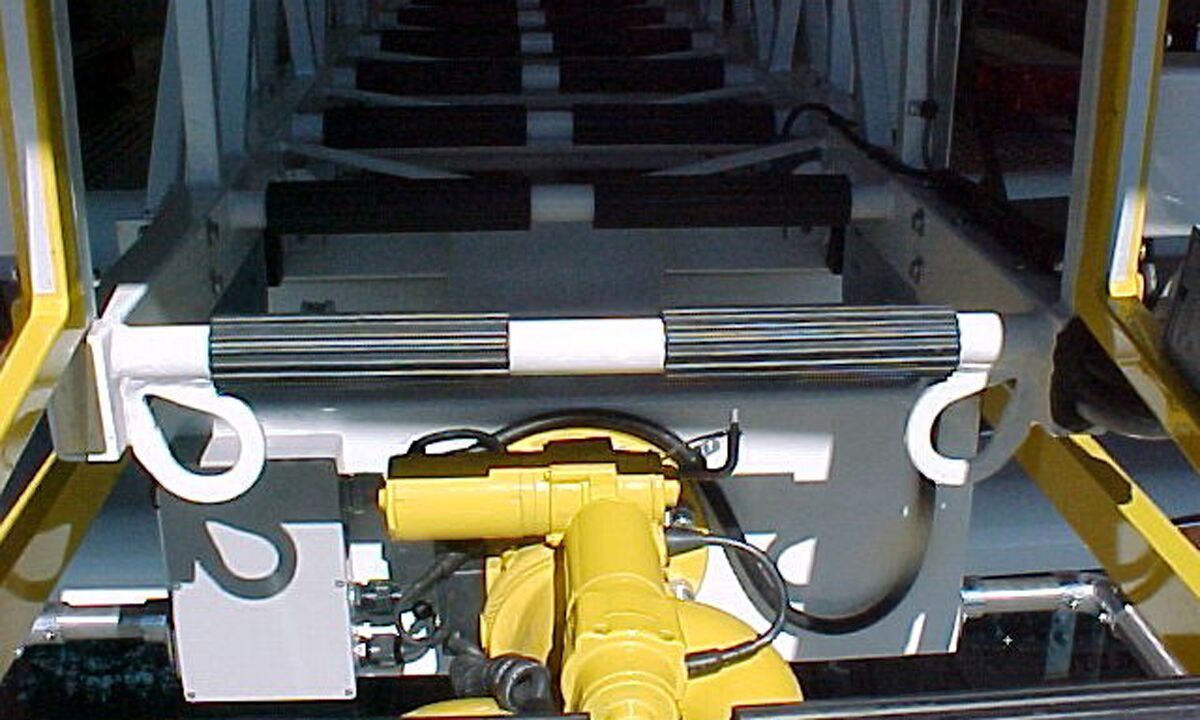

Standard equipment on all Ferrara aerials is a pair of load lifting eyes at the ladder tip. Rated at 500 pounds as a pair, they give you added rescue capability.
Supply a standpipe without disconnecting the nozzle on the aerial monitor with our optional 2-1/2” discharge at the ladder tip.

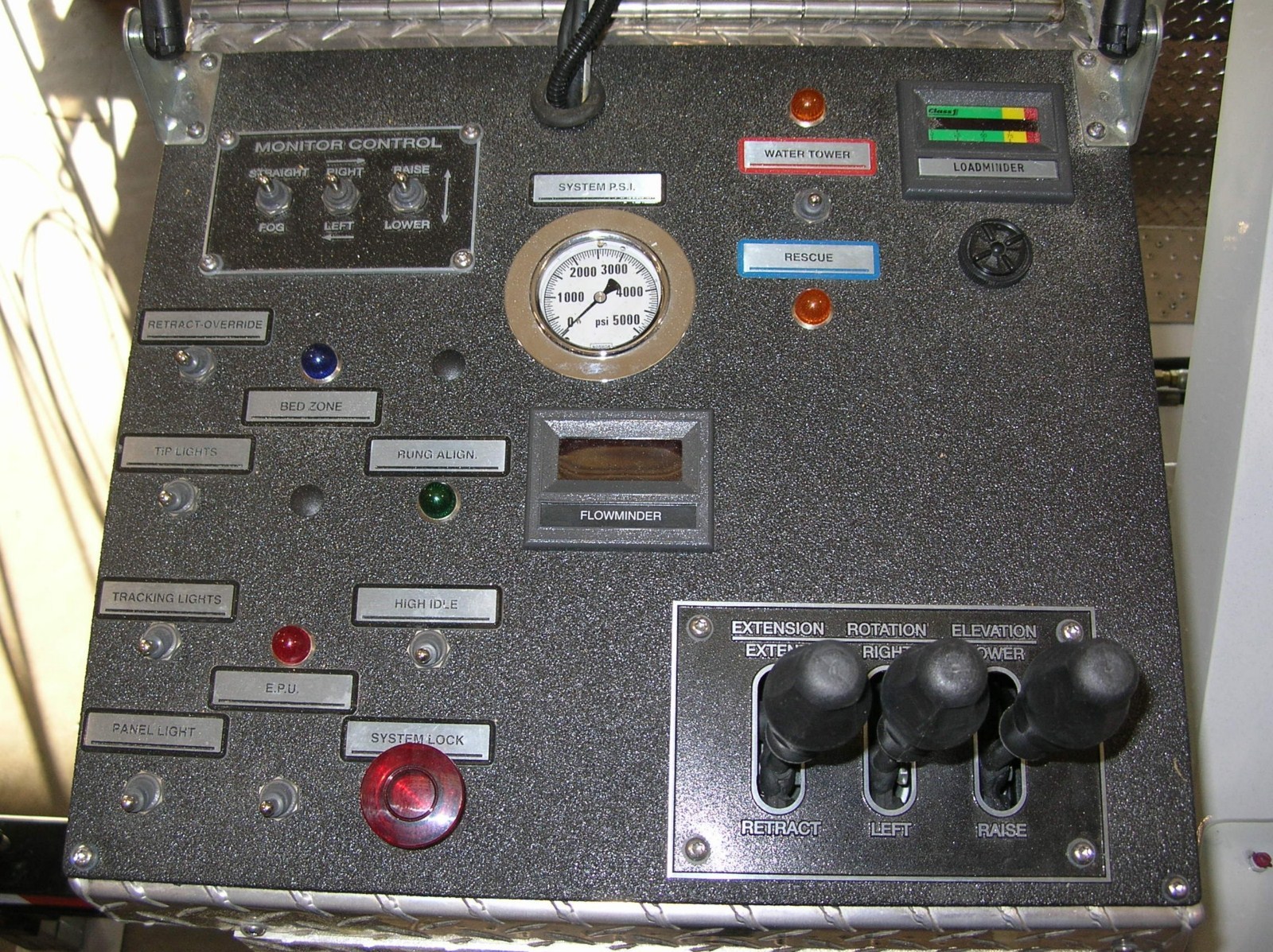

The turntable control console has a clean design with easy to find and read instruments. The ladder controls are direct hydraulic, requiring no manual override

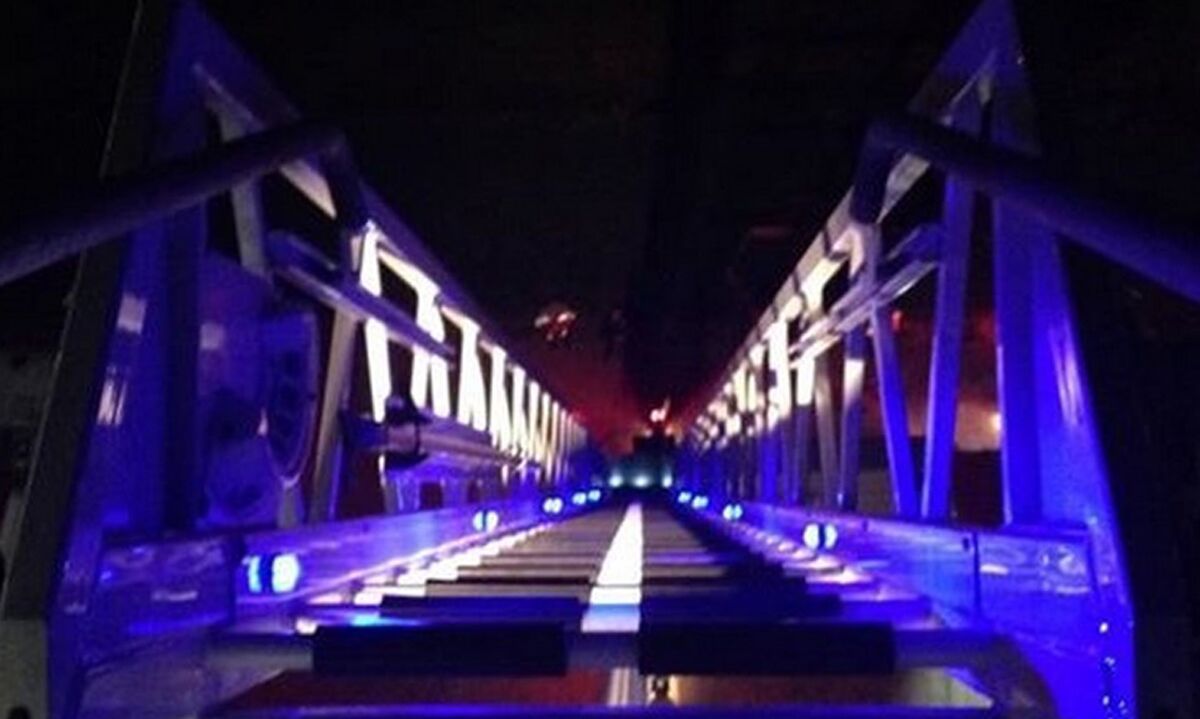

Well-lit ladder rungs for safe and easy night operations
Specifications
| Chassis | Cinder and Igniter up to 450hp Inferno up to 605 hp |
| Body | Extruded Aluminum – quint or truck (no pump/tank) |
| Compartments | Quint 1: Left side full height x 24” deep; Right side full height w/EZ-Stack hose bed Quint 2: Left and right side full height 24” deep lower/12” deep upper w/hose chutes Ferrara MVP: 6 compts left, 4 compts right plus EZ-Stack hose bed, 4 compts rear Truck: Left and right side full height, 24” deep lower/transverse upper ahead of aerial |
| Ladder Storage | 150’ to 156’ ground ladders enclosed in full length torque box |
| Pump | Up to 3000 gpm pump |
| Tank Size | Up to 500 gallons on single axle or 1000 gallons on tandem |
| Ladder and Reach | 3-section heavy duty steel ladder with -6° to +72° operational envelope Over 180° rotation at -6° 77’ vertical reach at 72⁰ and 70’ horizontal reach at 0⁰ 45’ vertical and 60’ horizontal reach at 30⁰ |
| Rated Load Capacity | 500 pounds dry / 500 pounds flowing 1500 gpm Up to 2000 pounds distributed + 500 pounds at the tip while flowing 1500 gpm No restrictions on waterway monitor positioning while flowing 1500 gpm Optional 750 pound tip load when equipped with front down jacks |
| Warranty | 10 year cab and body structural 25 year aerial structural 10 year waterway and waterway seals 15 year torque box & stabilizer 2 year mechanical, chassis, cab, body and aerial |
