Heavy Duty 100 Rear-Mount Platform
The Ferrara HD-100 Rear Mount Platform Fire Truck provides safety, the ability for heavy-duty construction, and high performance. For safety, the aerial has a full complement of safety interlocks, the cab and body have been load tested to 66,000 pounds in excess of NFPA 1901 requirements, and has a 3/16” thick aluminum cab and body plus a 100,000 psi steel aerial.
Features and Options

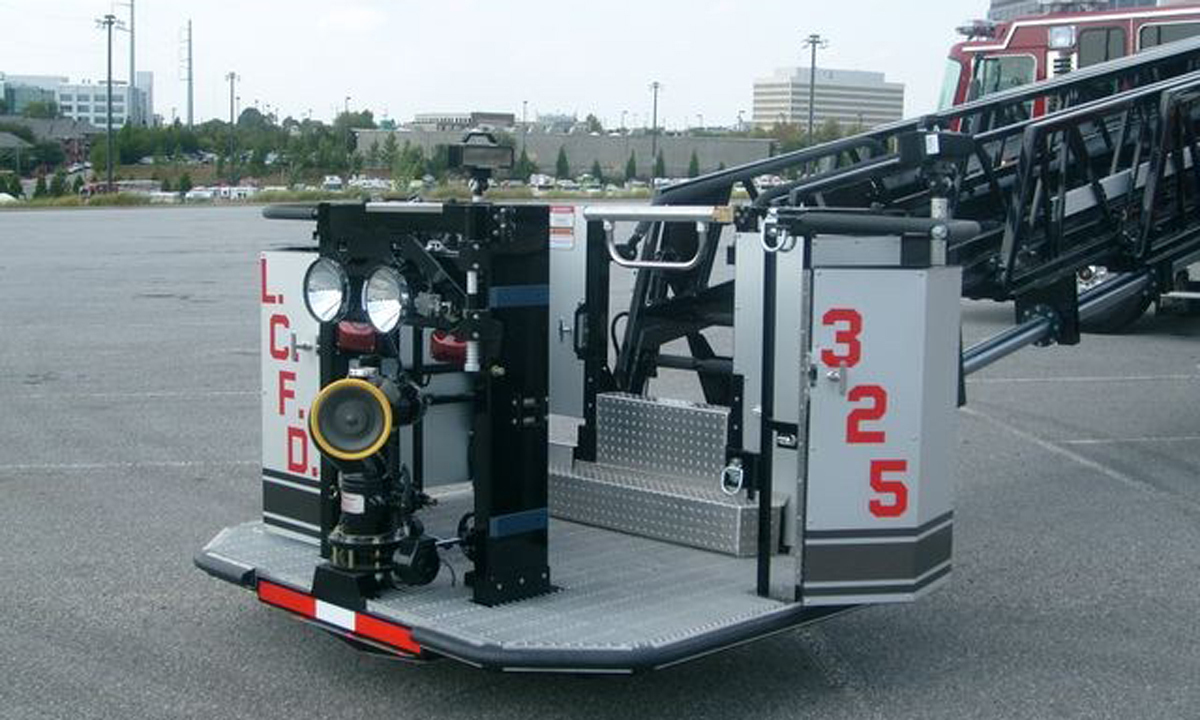

Bi-fold gates provide 23.5” opening on the mid-mount and 24” on the rear mount; wide enough to fit a patient in a stair chair.

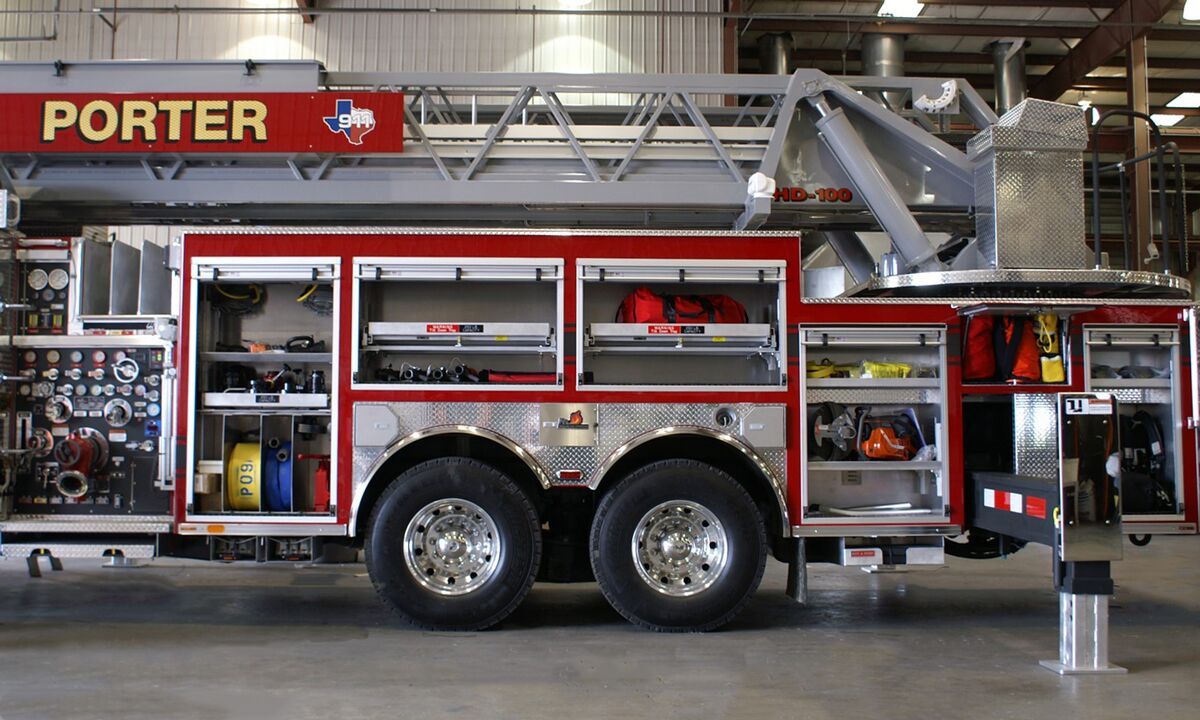

Carry more gear with Ferrara’s rescue style compartments. Each opening on the driver side is 24” deep x full height. Our standard quint body style has over 250 cubic feet of compartment space.

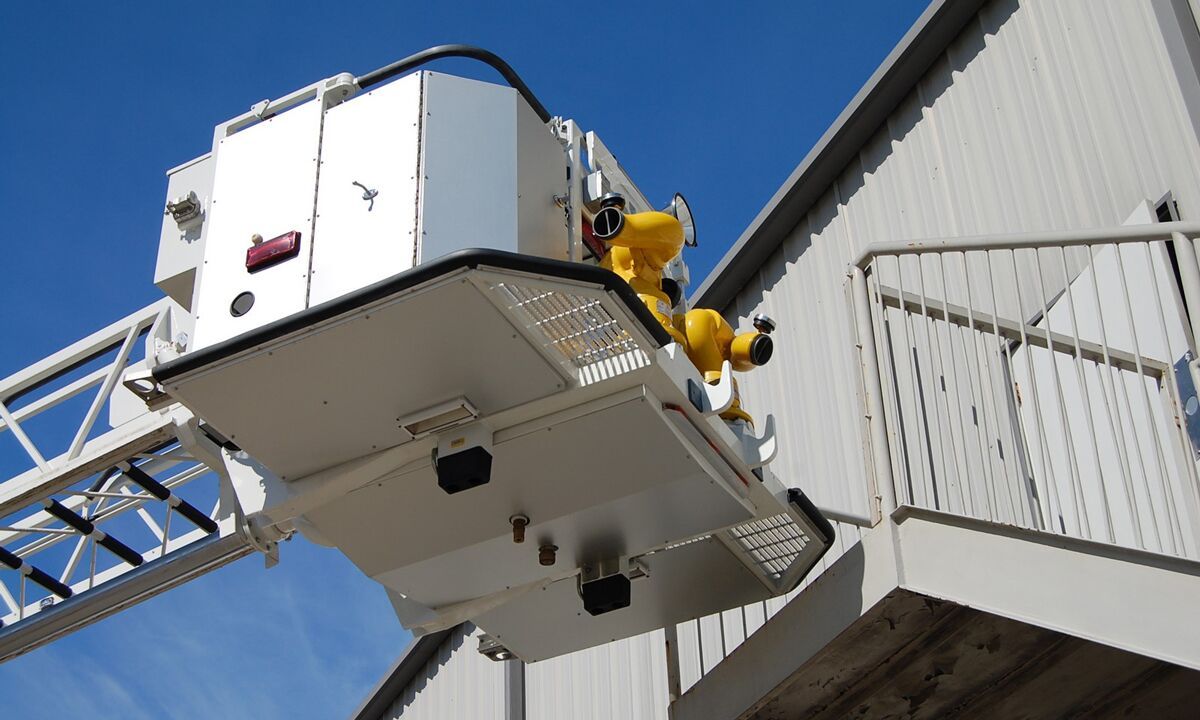

The corners on our platform have a 45 degree angle, making an easy transition from the platform to another structure.

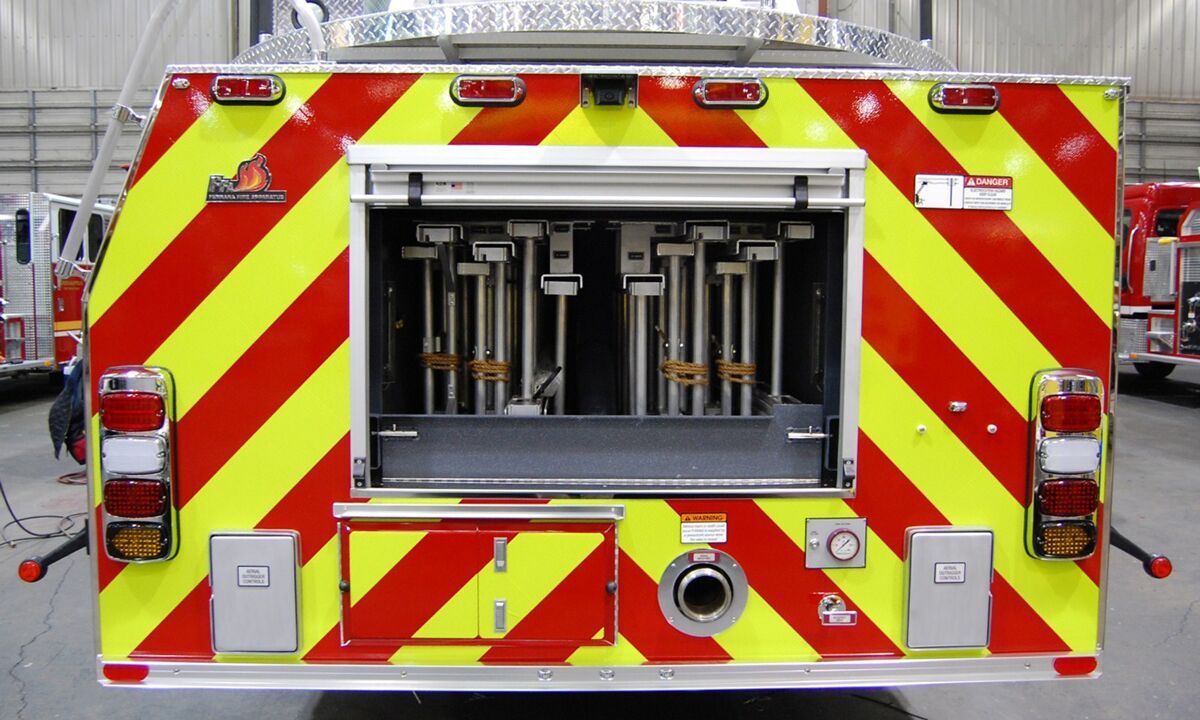

We custom design the ladder tunnel to your needs. When you need to throw ground ladders, you’ll need plenty of them. The full length torque box provides storage for up to 200’ of ground ladders in a single compartment.

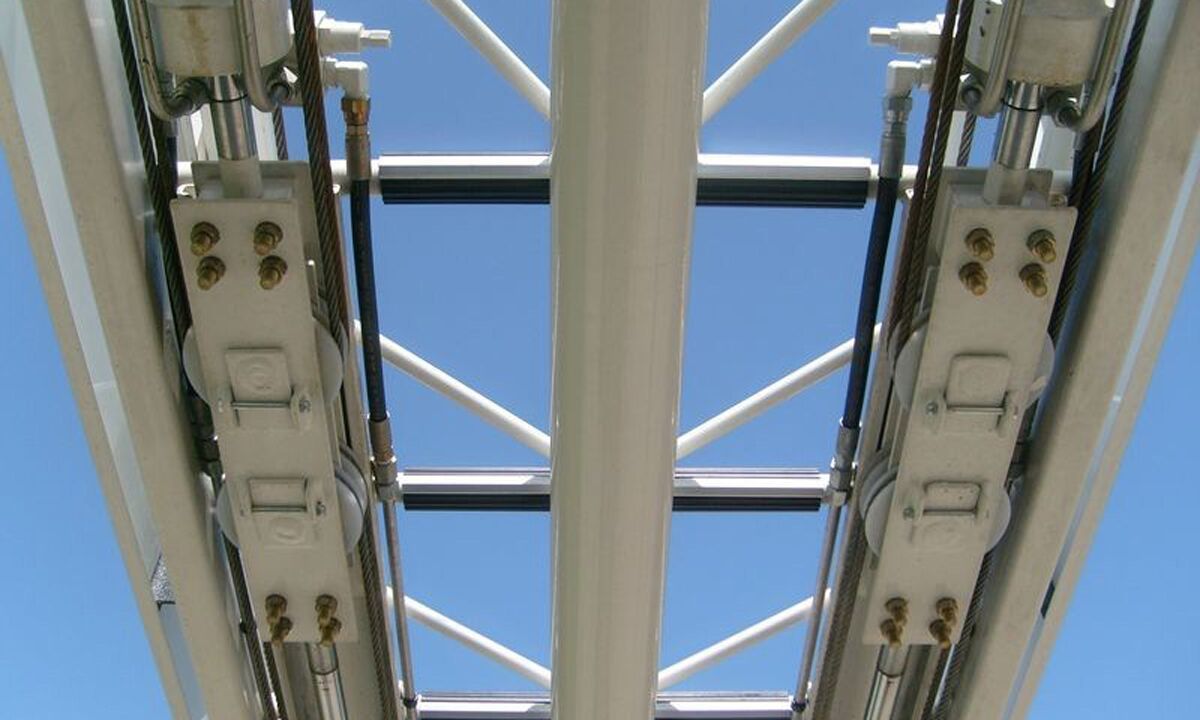

Extension/retraction is smooth and rapid with our dual Siamese extension cylinders. Why settle for 2 extension cylinders when you can have 4?

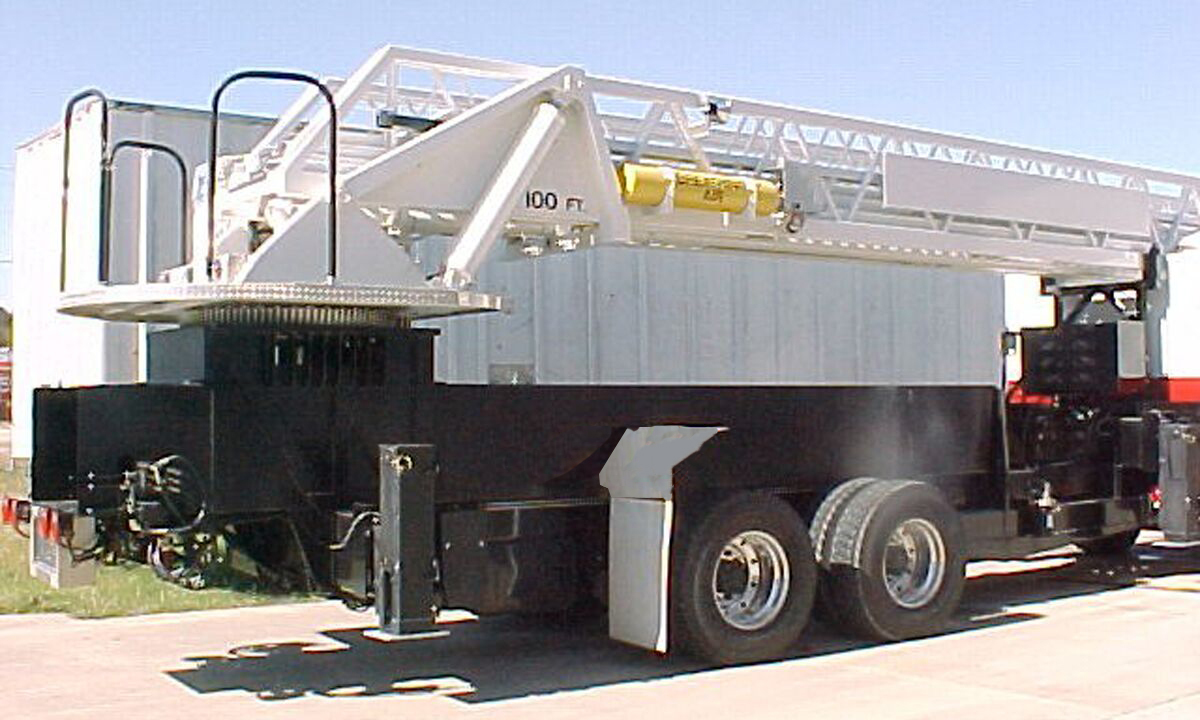

Ferrara aerials all feature a full length torques box, providing stability for the aerial and a smooth ride for occupants. The front outriggers are integral with the torque box, connected by massive 6” x 8” beams for added support and stability.

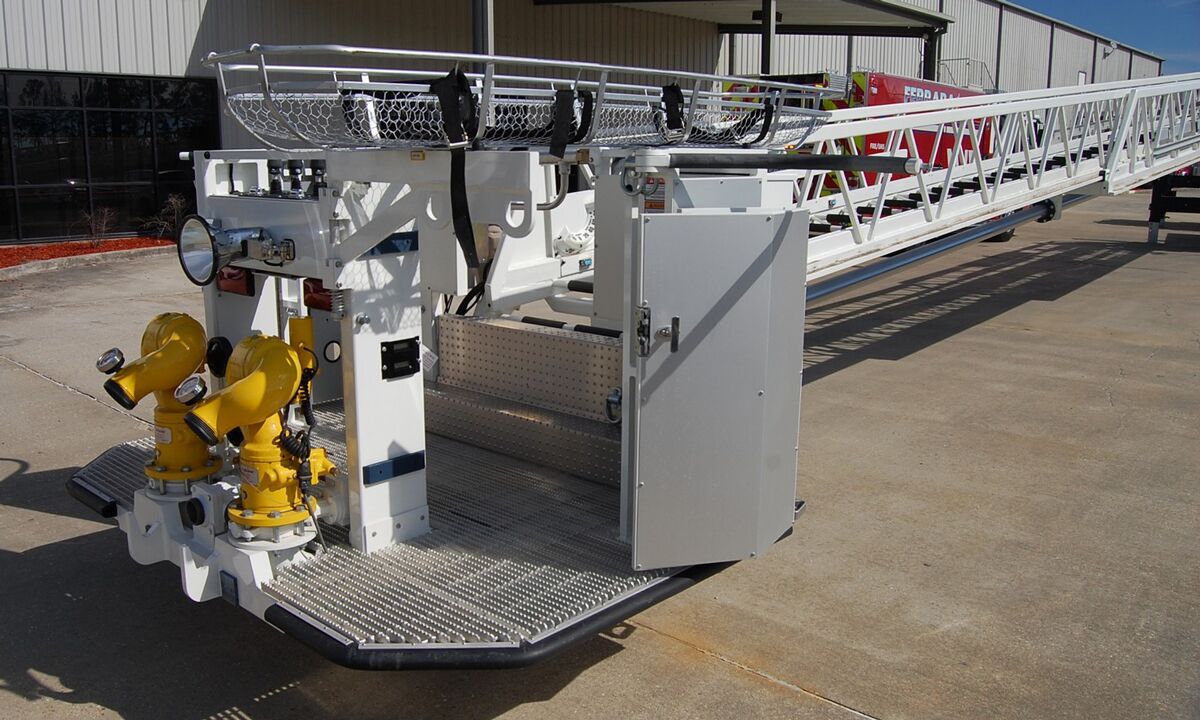

Ferrara’s optional rope rescue/lifting arm also doubles as a temporary stokes mount, including 2 tie-down points and straps to secure a patient. The stokes mount is to the left of the control panel and causes no interference for the platform operator.

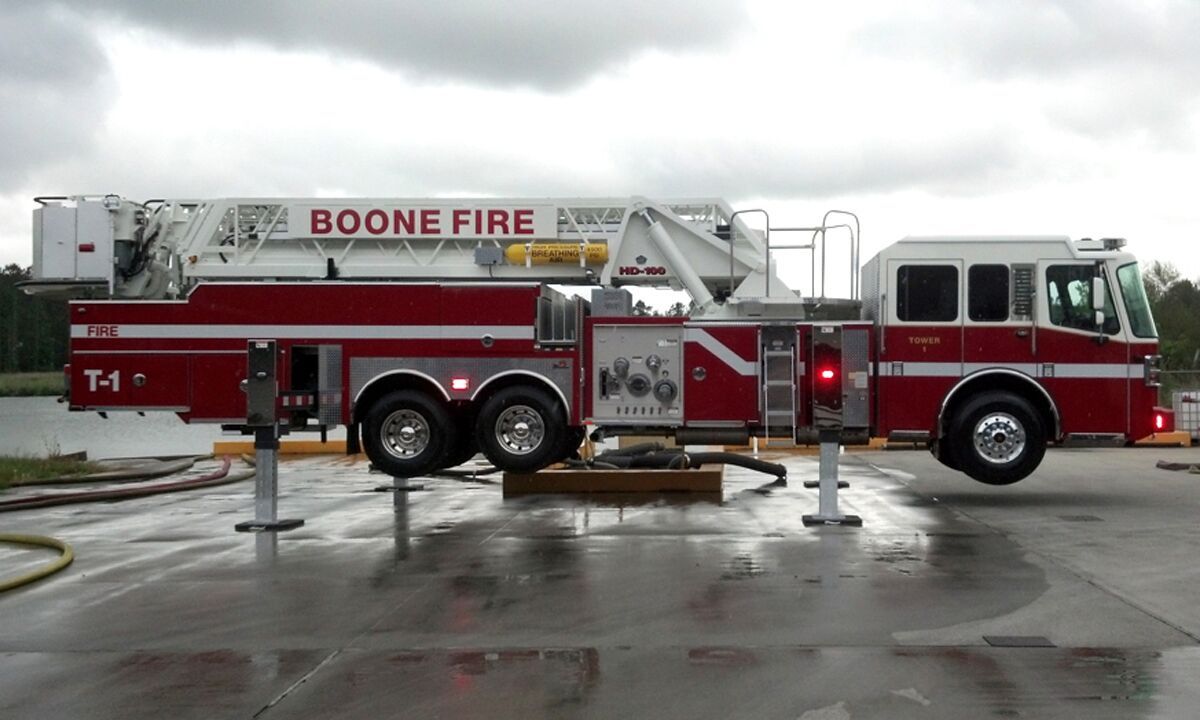

Forward stabilizers on all Ferrara 4-jack aerials are directly behind the cab. When you set the truck with the front wheels off the ground, the front jacks support the weight of the cab and chassis with little to no frame sag.

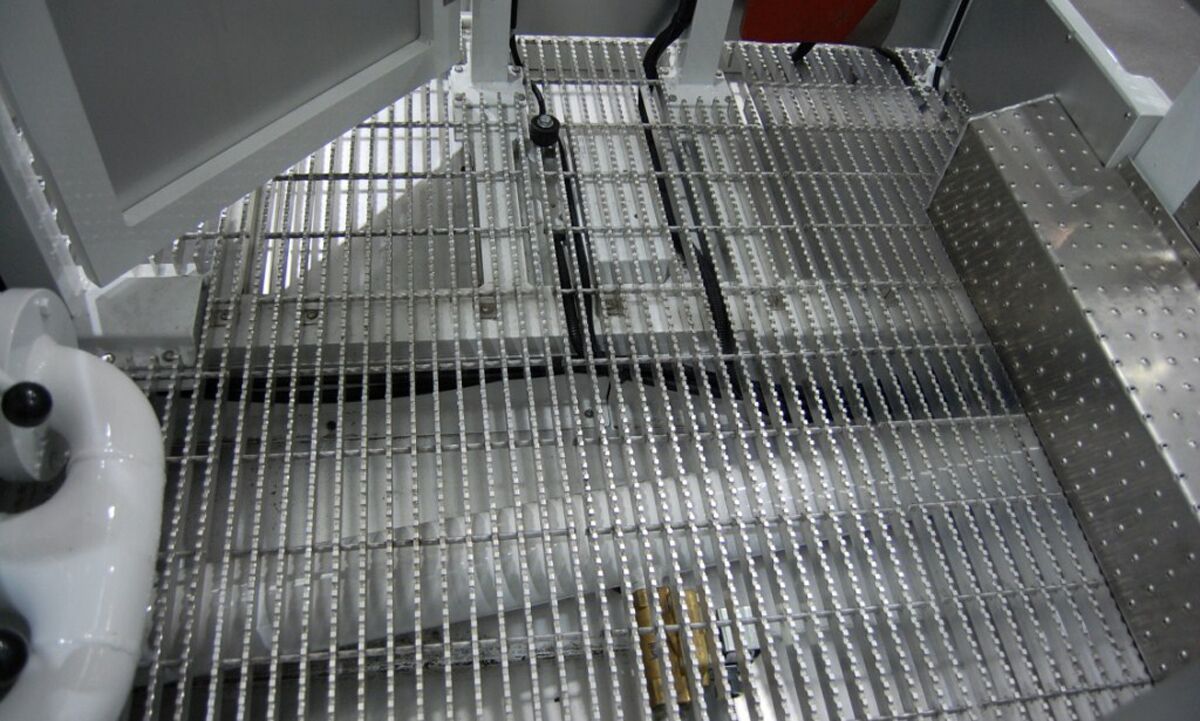

Open grate flooring in the platform gives you sure footing, even in winter time during freezing conditions.

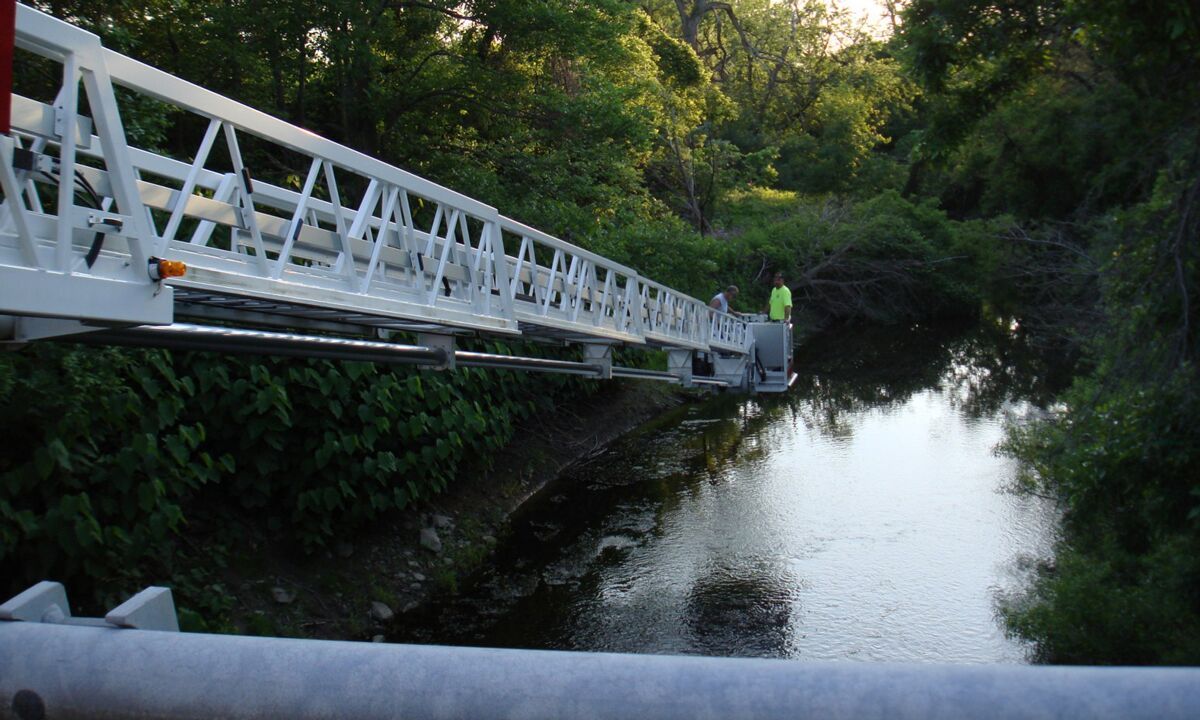

Operate at negative elevations up to -12 degrees. At full extension, you can reach over 11’ below street level and, depending on mid- or rear mount, 94 to 96 feet from the center of the turntable.

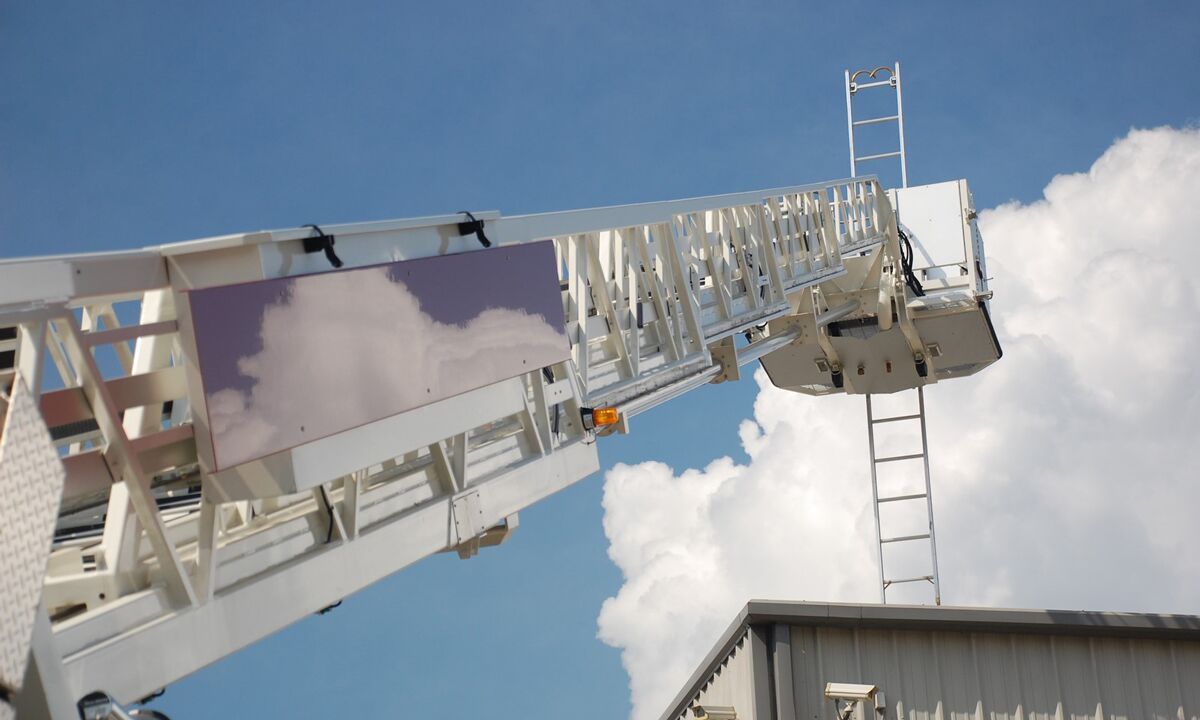

Our optional parapet roof ladder bracket allows you to safely access a parapet roof from our platform, using a standard size roof ladder.

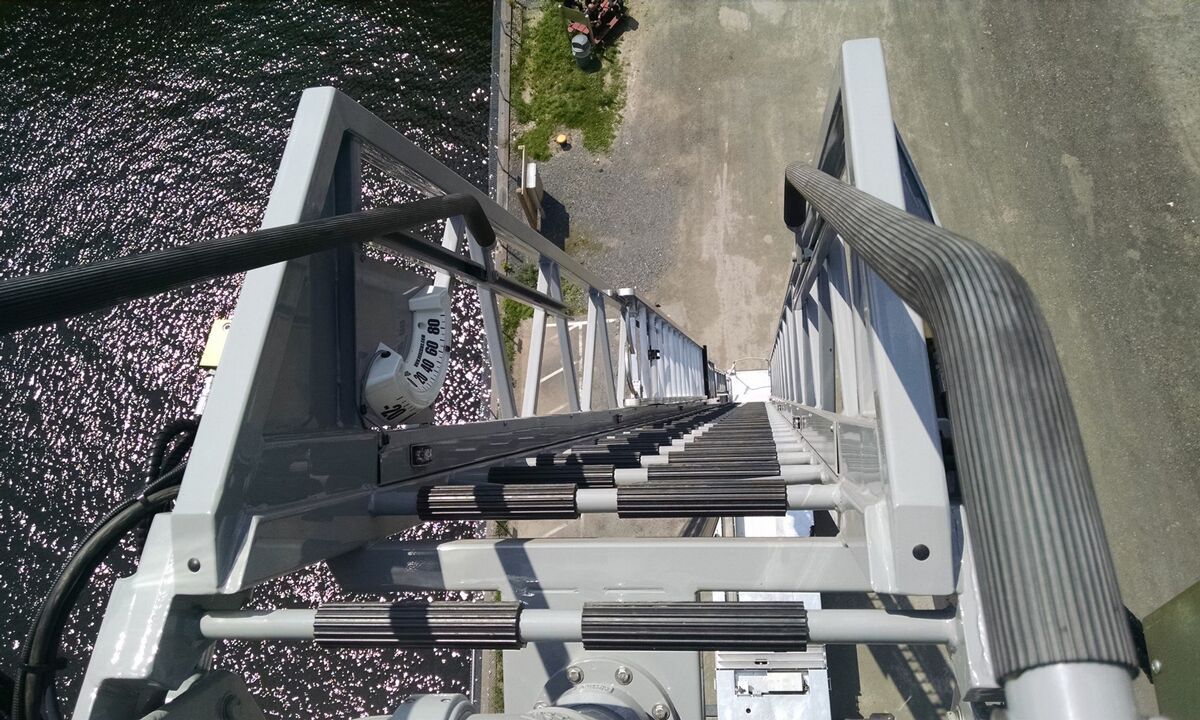

Our NFPA mandated continuous handrails on Ferrara’s platforms are different. They maintain constant contact between the ladder and platform so you have a sure grip for easy ladder-to-platform transition no matter what angle the ladder is positioned.

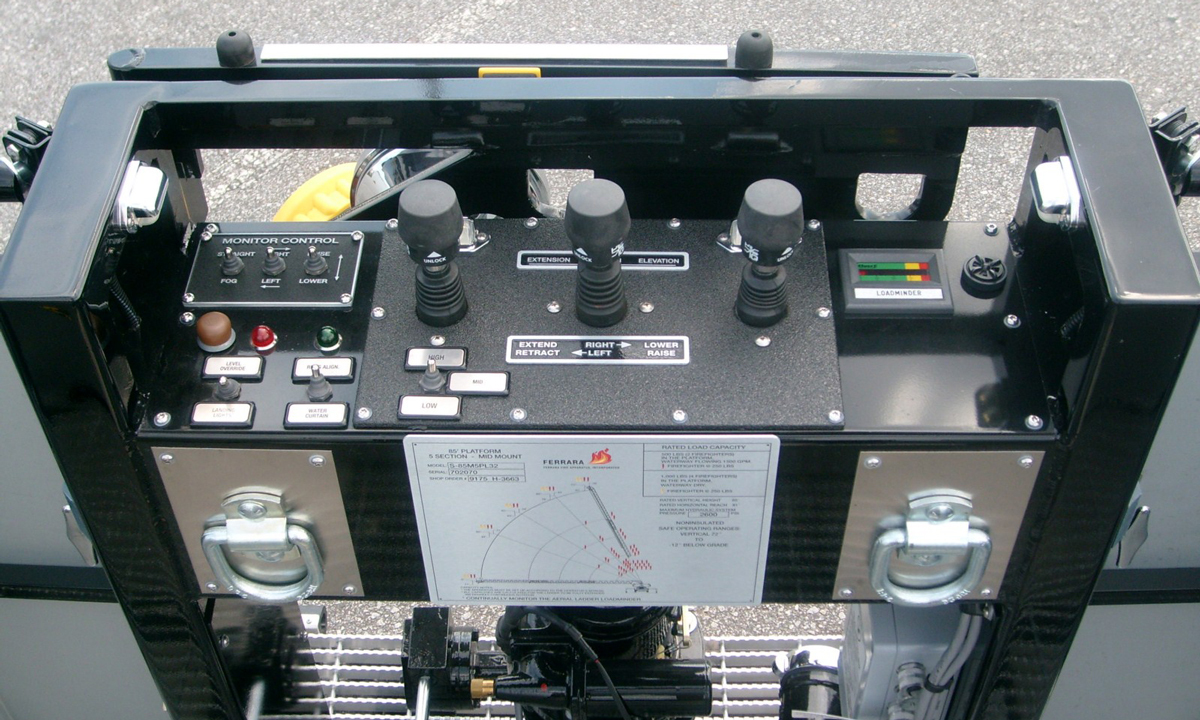

Platform controls are located front-center, giving the operator the best view when positioning the bucket or approaching a structure.

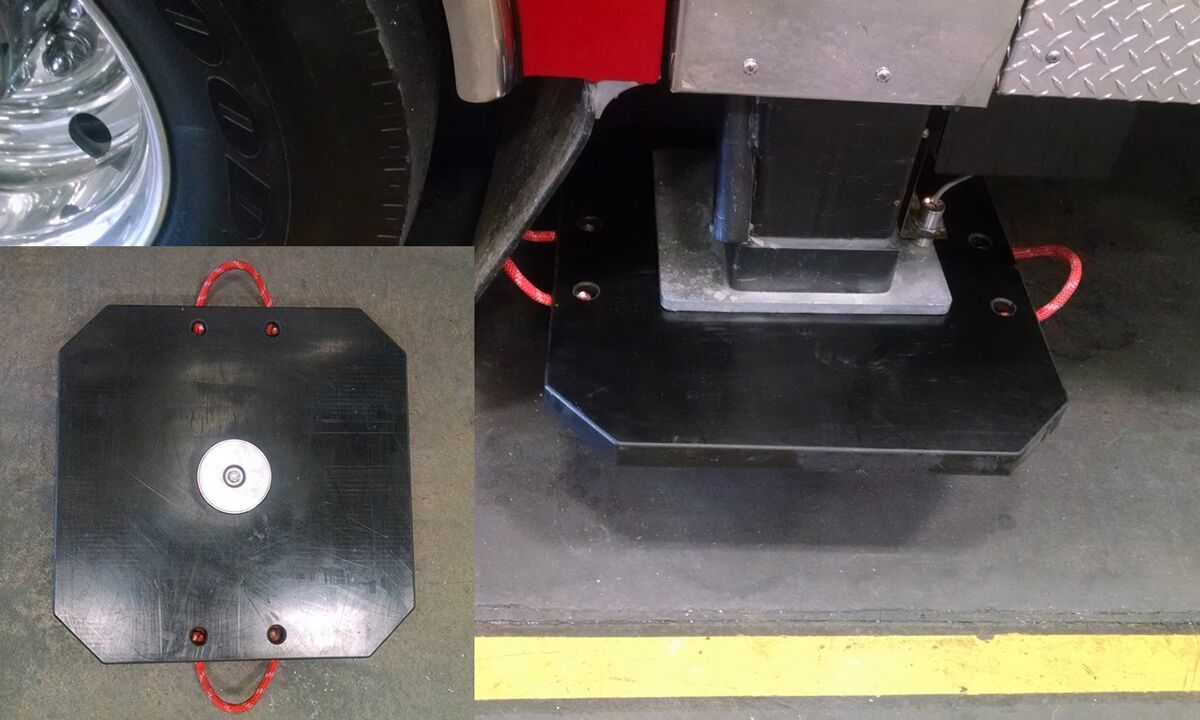

Save set up time and stop guessing where the auxiliary ground pads should be placed. We offer an optional recessed magnet in the auxiliary pad, allowing you to connect to the stabilizer foot pad prior to deployment.

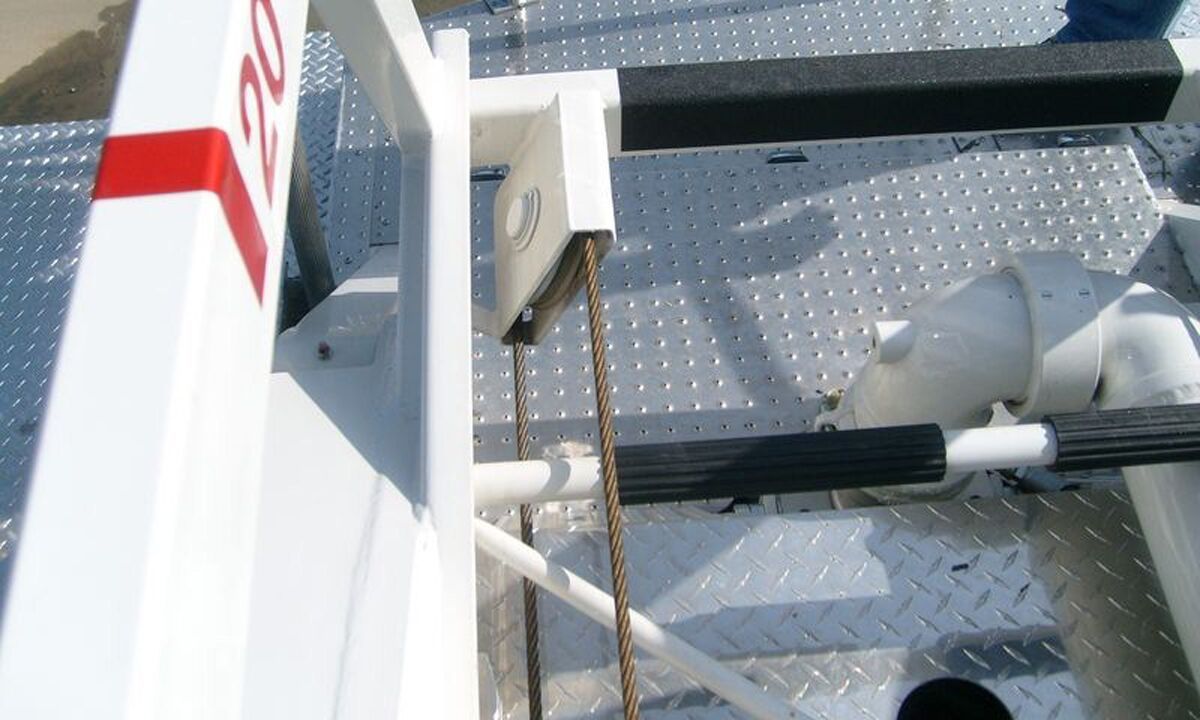

All sheaves are fully enclosed, so you don’t have to worry about getting PPE or other gear caught between the cable and pulley.

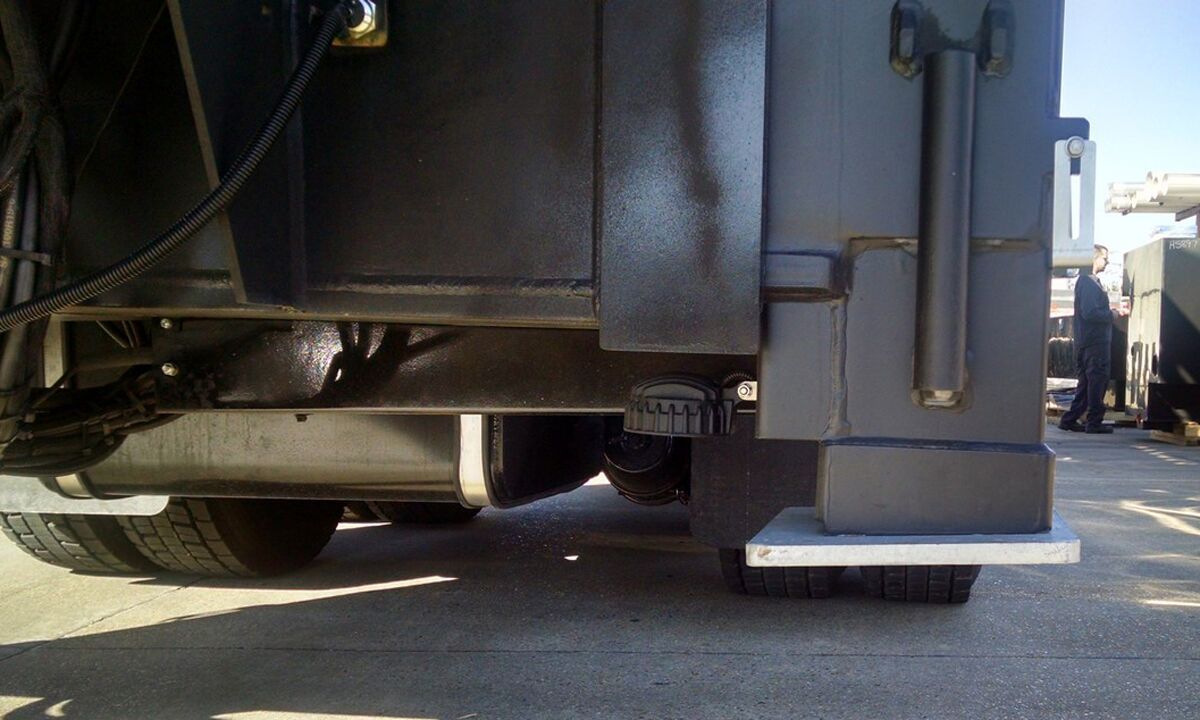

Stabilizer foot pads are angled slightly down toward the middle of the truck.

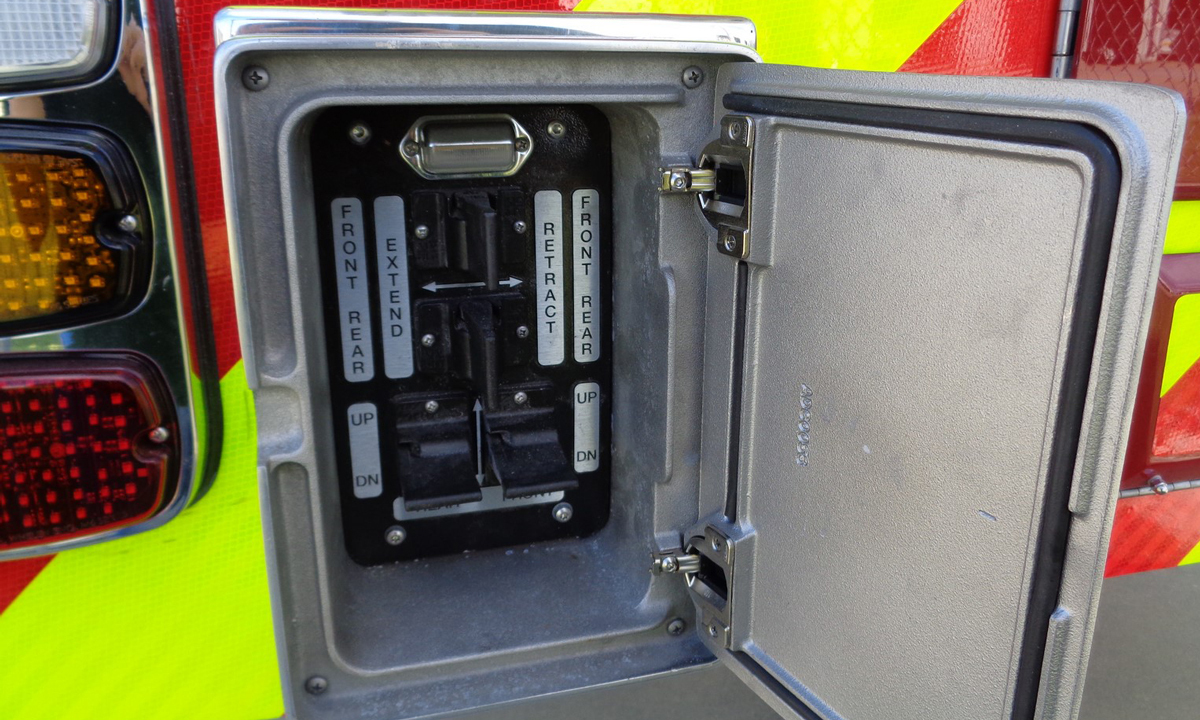

Stabilizers are set using oversized paddle switches. They are easy to operate with a gloved hand, allowing you to keep your eyes on the stabilizer movement instead of the switch.

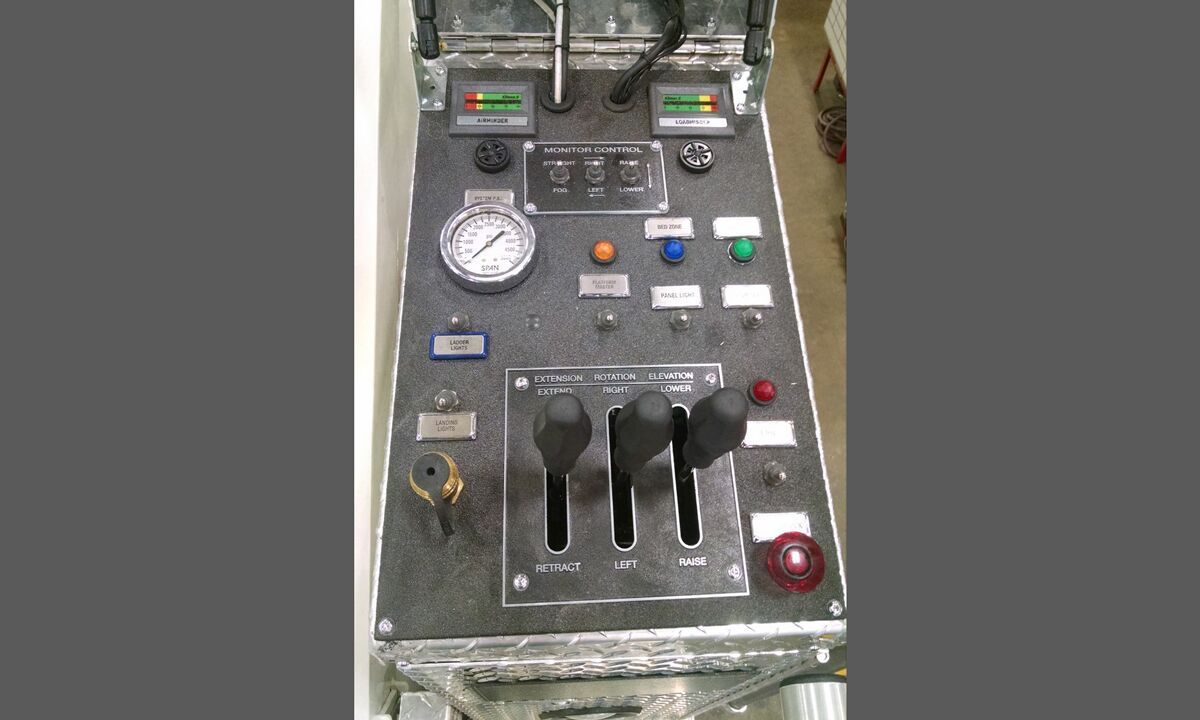

The turntable control console has a clean design with easy to find and read instruments. The ladder controls are direct hydraulic, requiring no manual overrides.

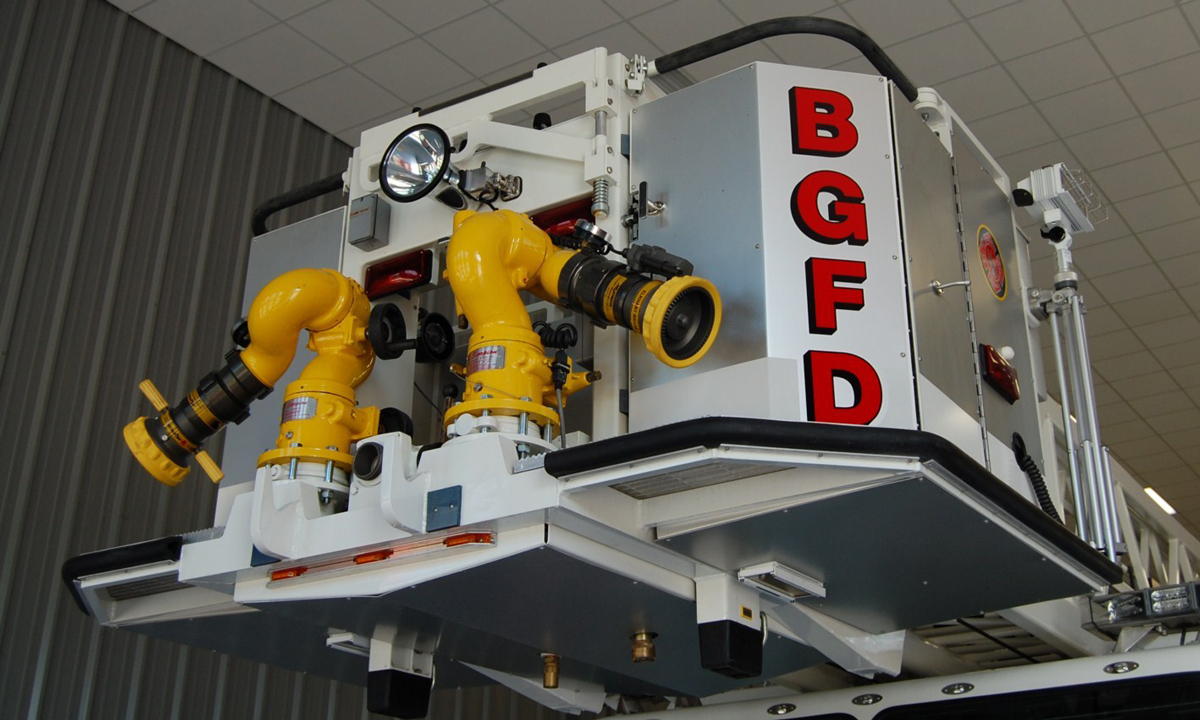

Twin monitors are available both manual, 1 manual and 1 electric or both electric

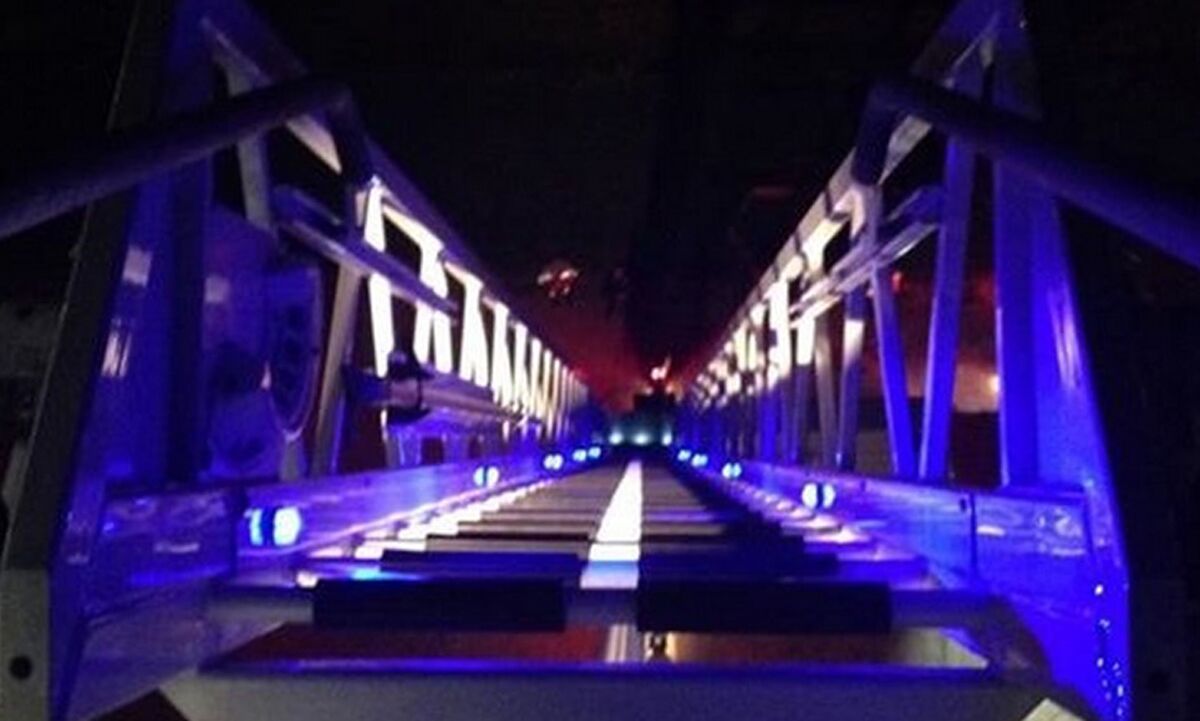

Well-lit ladder rungs for safe and easy night operations
The wide, bi-fold, outward opening gates on our platform are wide enough to accommodate a stair chair, adding an extra dimension to your rescue capability.
Specifications
| Chassis | Inferno up to 605 HP |
| Body | Extruded Aluminum – quint or truck (no pump/tank) |
| Compartments | Quint 1: Left side full height x 24” deep; Right side full height w/EZ-Stack hose bed Quint 2: Left side full height x 24” deep; Right side full height x 24” deep ahead and over wheels; Center hose bed w/right side chute Truck: Left and right side full height, 24” deep lower/transverse upper ahead of aeriall |
| Ladder Storage | Up to 200’ ground ladders enclosed in full length torque box |
| Pump | Up to 3000 gpm pump |
| Tank Size | Up to 400 gallon tank |
| Ladder and Reach | 3-section heavy duty rear mount aerial with -12⁰ to +72⁰ operational envelope Over 180⁰ rotation at -12⁰ 100’ vertical reach at 72⁰ and 98’ horizontal reach at 0⁰ 58’ vertical and 84’ horizontal reach at 30⁰ At -12°, a 95’ horizontal and 11’ 7.5” below street level |
| Platform | 21 square feet interior working area Dual, outward opening, bi-fold gates with 24” clear opening |
| Rated Load Capacity | 1250 pounds dry / 500 pounds flowing 2000 gpm Up to 2250 pounds distributed + 500 pounds in the platform while flowing 2000 gpm No restrictions on aerial or monitor movement or placement while flowing 2000 gpm |
| Warranty | 10 year cab and body structural 25 year aerial structural 10 year waterway and waterway seals 15 year torque box & stabilizer 2 year mechanical, chassis, cab, body and aerial |
