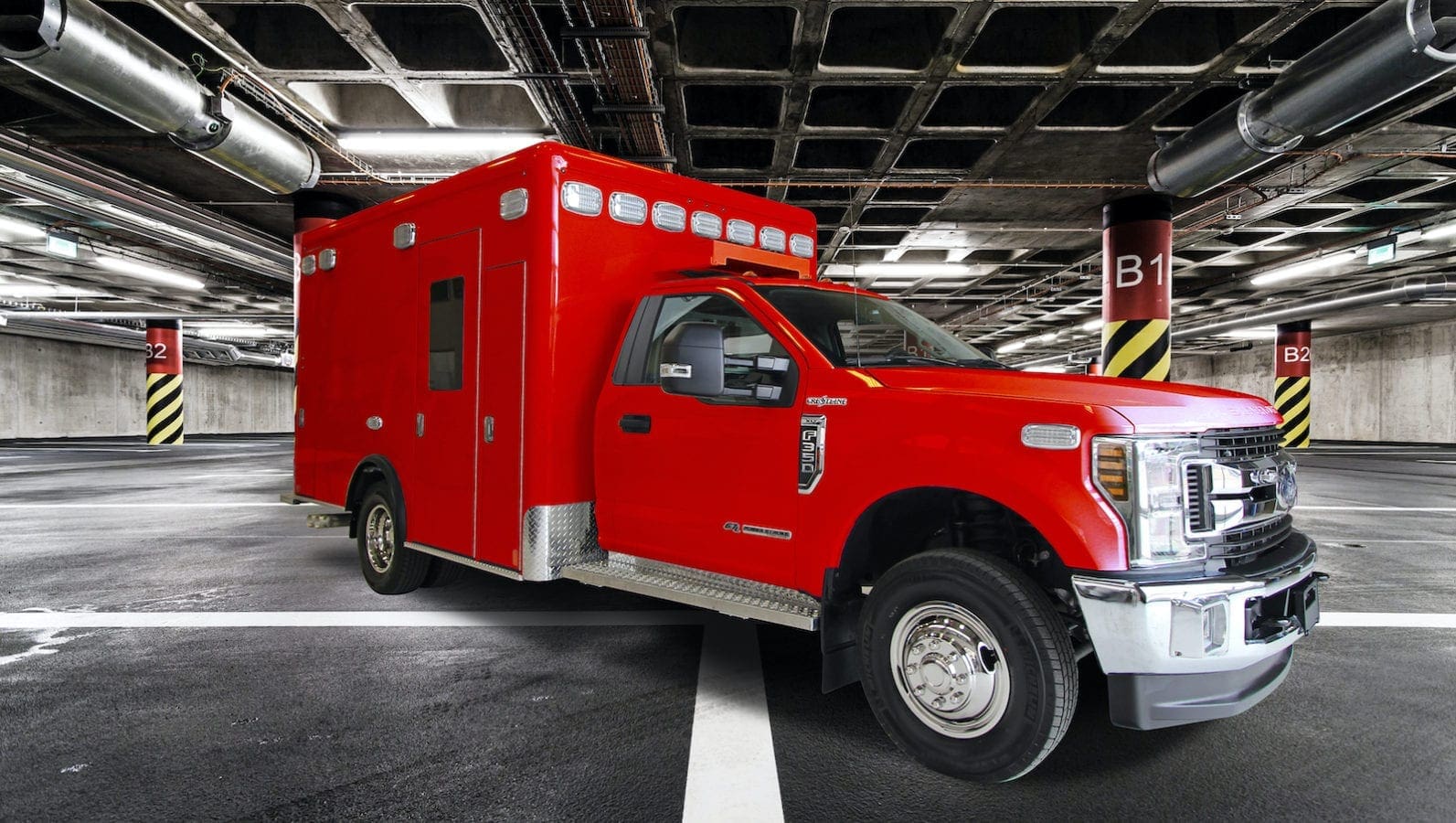

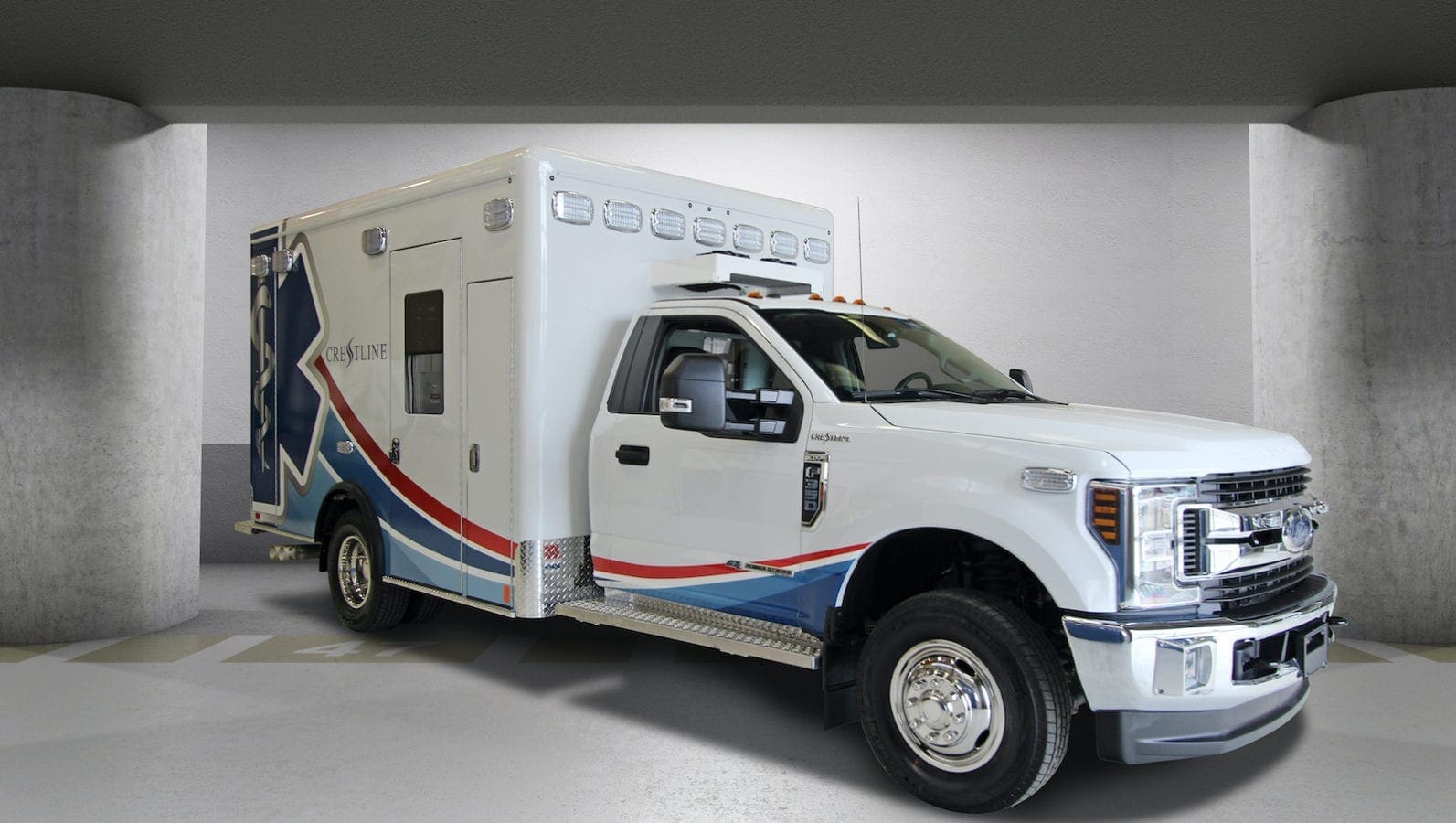

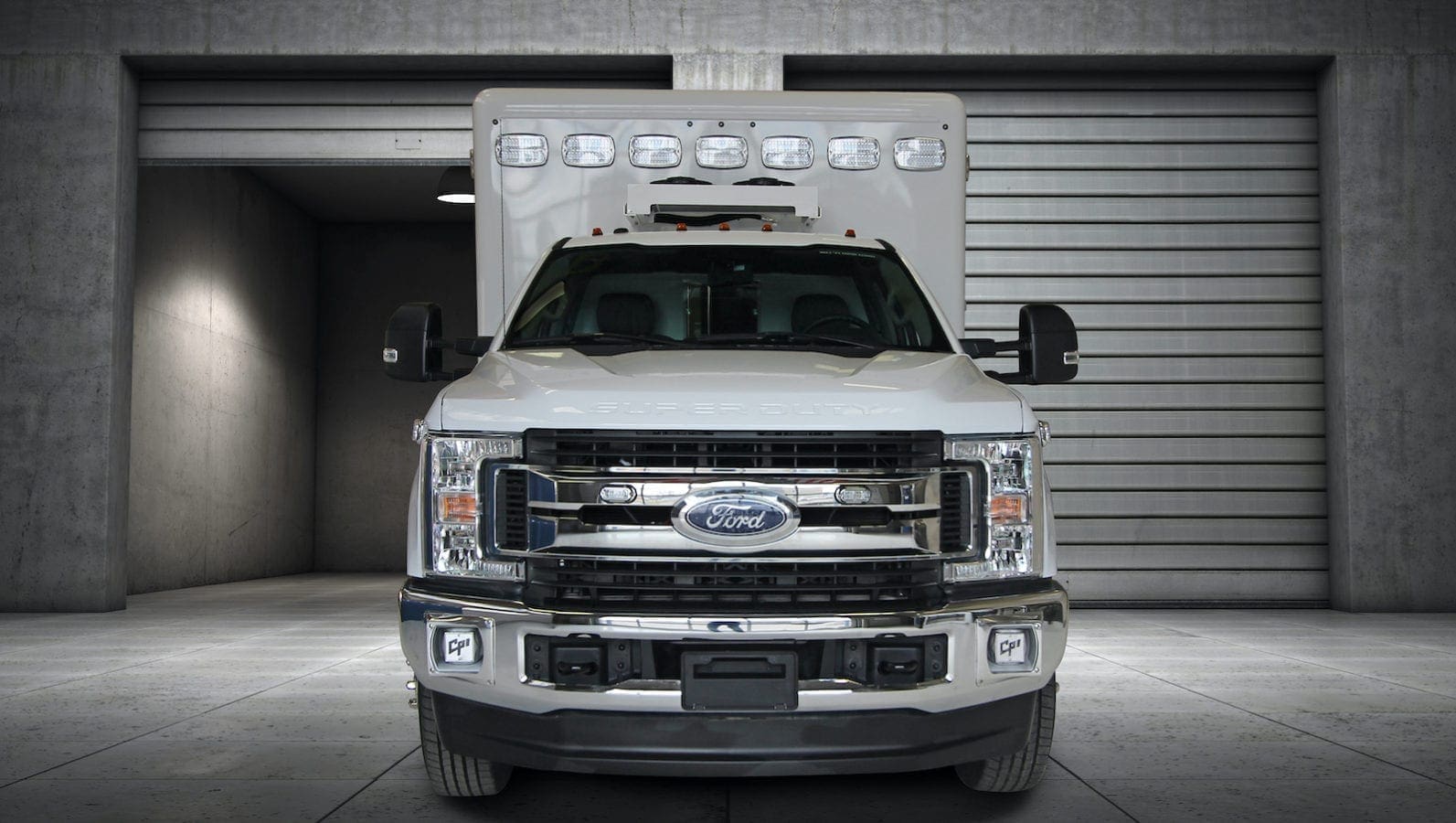

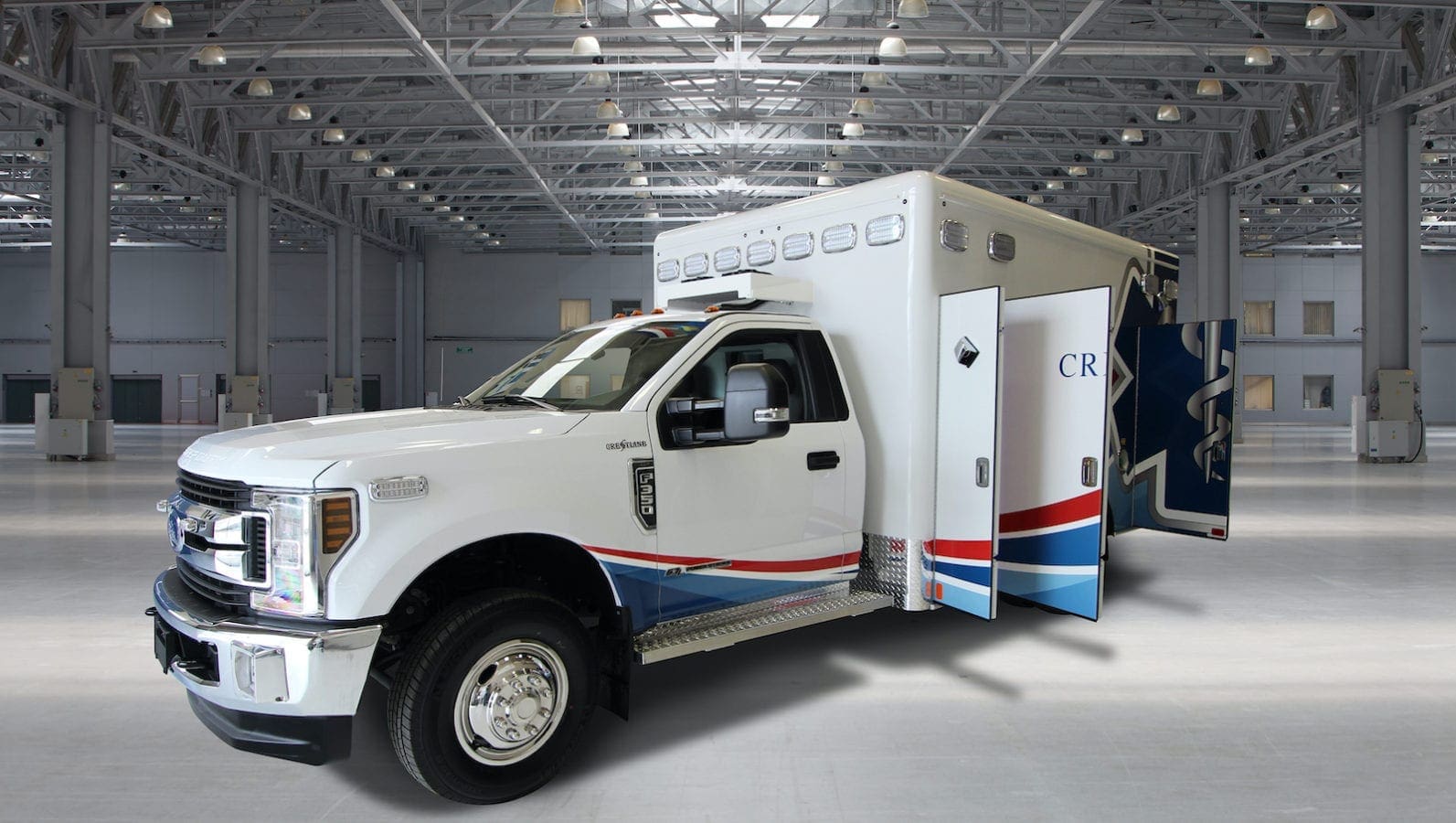

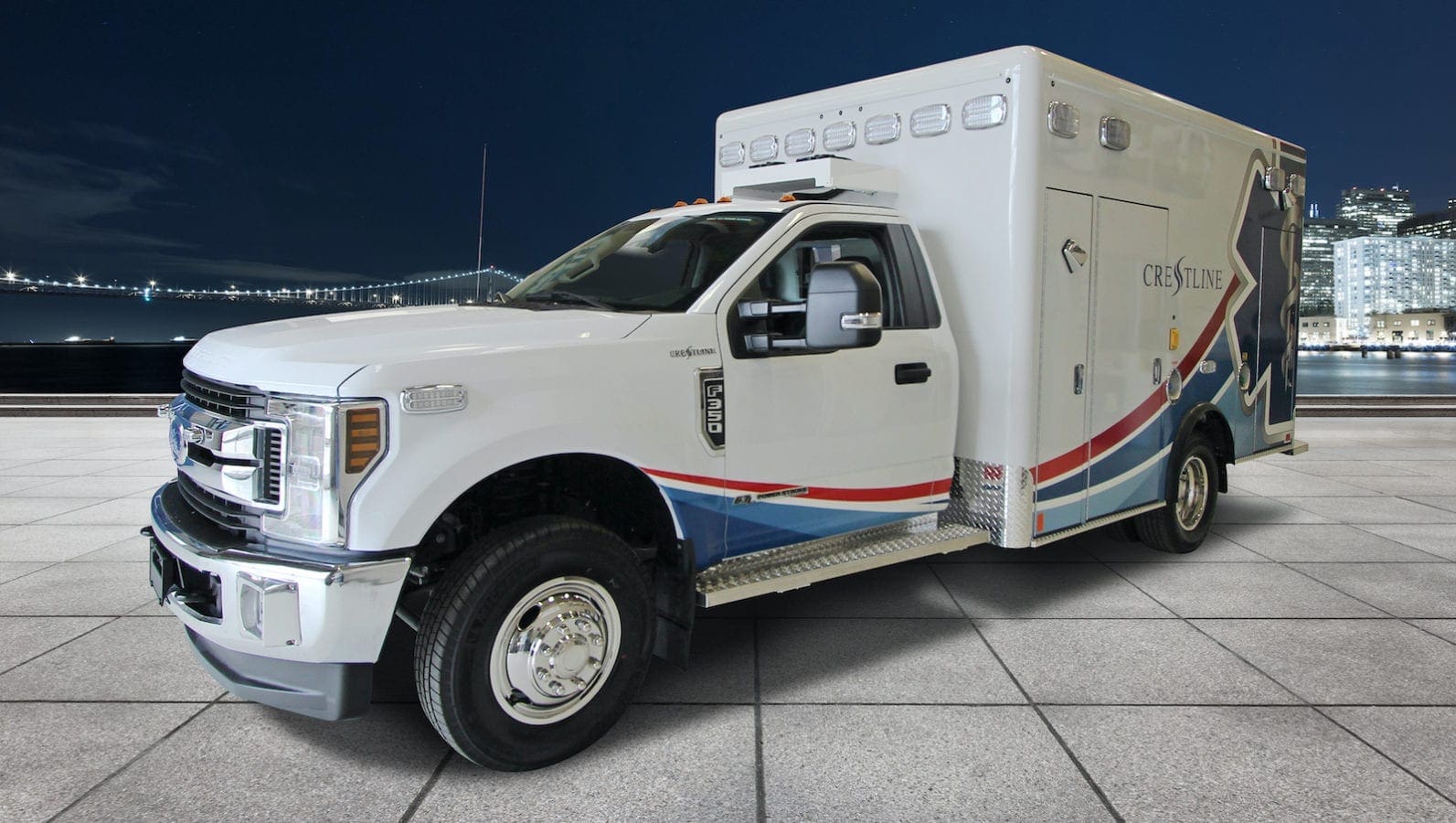

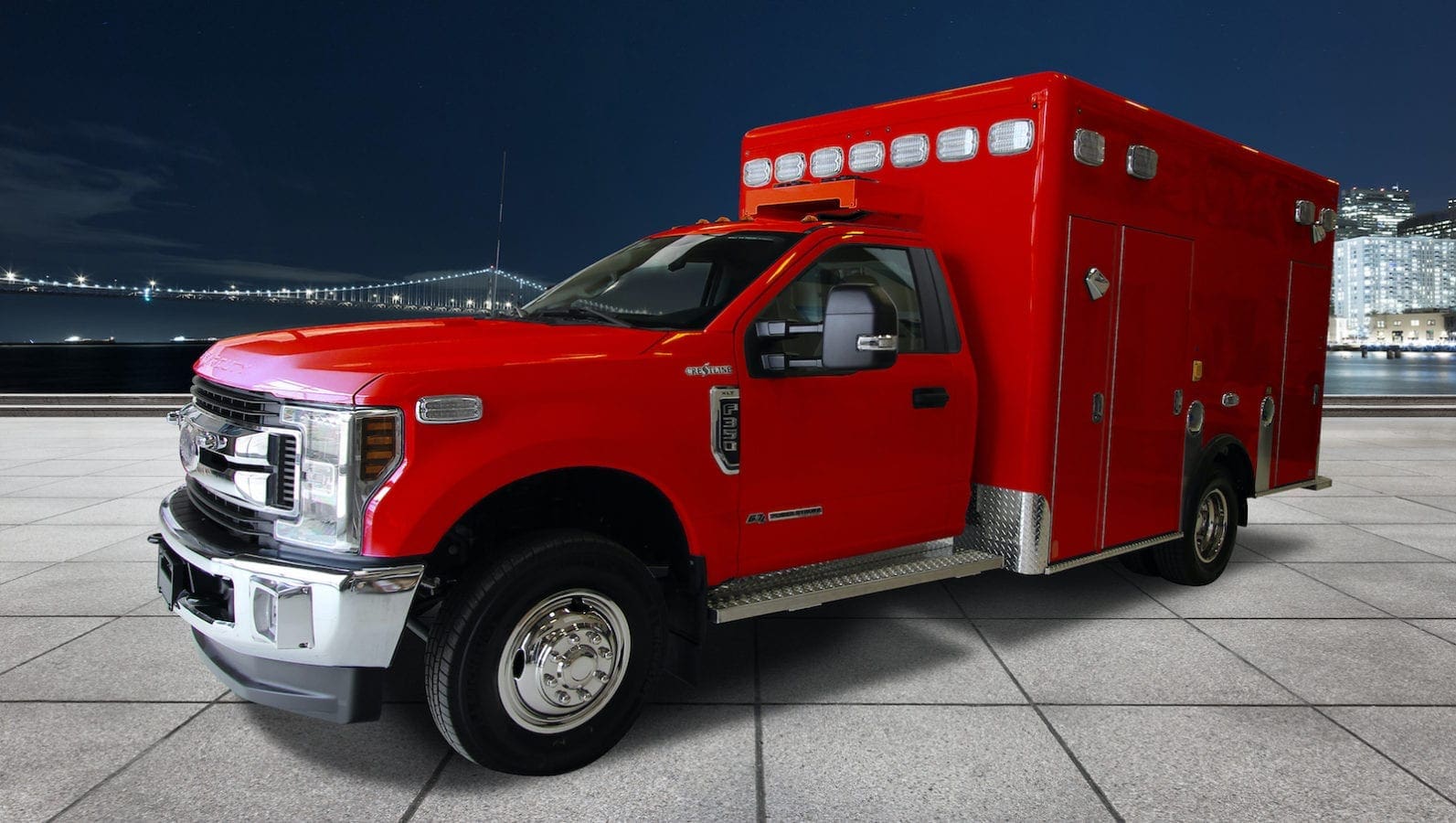

The CCL 150 Type I Ambulance, offering safety, durability, and value, is built to last with increased reliability, lowering the cost of ownership. These Type I ambulances are easy to maintain and remount, and allow quick delivery and volume orders. With a factory-backed Lifetime Paint and Structural Warranty, Aluminum Cabinets, CrestClean Antimicrobial Coating, Multiplex Electrical System, and more, this ambulance can aide you in all your calls.
The Crestline CCL 150 Type I Ambulance Comes with a Multitude of Standard Features!
Aluminum Extruded Body Construction
- 150″ long X 96″ wide body with 72″ interior headroom, with 68″ option available
- Fully certified: meets or exceeds KKK-A-1822F and GVS V2.0 standards, including GVS V2.0 remountable standards
- Lifetime Structural Warranty
- All aluminum extruded body, including cabinetry
- Industry leading payload and available storage space
- Promotes safety, aerodynamics and efficient remount process

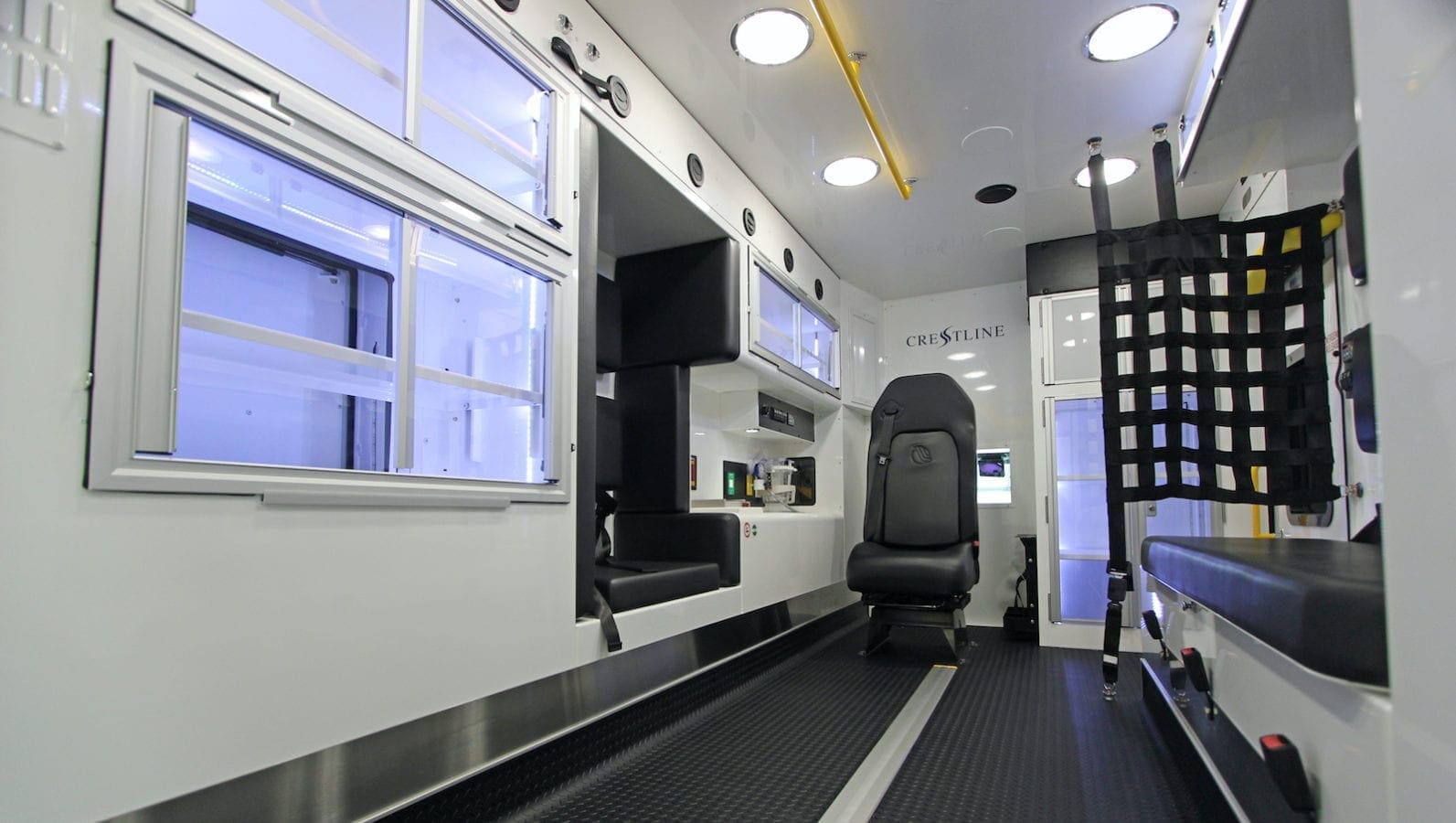

- Design supports efficient workflow and ergonomics for EMS professionals and patients
- Floor construction designed for all cot systems
CrestCoat: Powder Coating Technology
- Lifetime Paint Warranty
- Durable powder coating finish stands up over vehicle lifetime
- Lifetime warranty contributes towards lower cost
- Increases module life for remounting
- Environmentally friendly application
Multiplex Electrical System
- Robust multiplex system that is proven to reduce downtime and lower repair costs
- Supports remote diagnostics and preventative maintenance
- Fleet Operators do not require certified electrical technicians to perform maintenance or troubleshooting

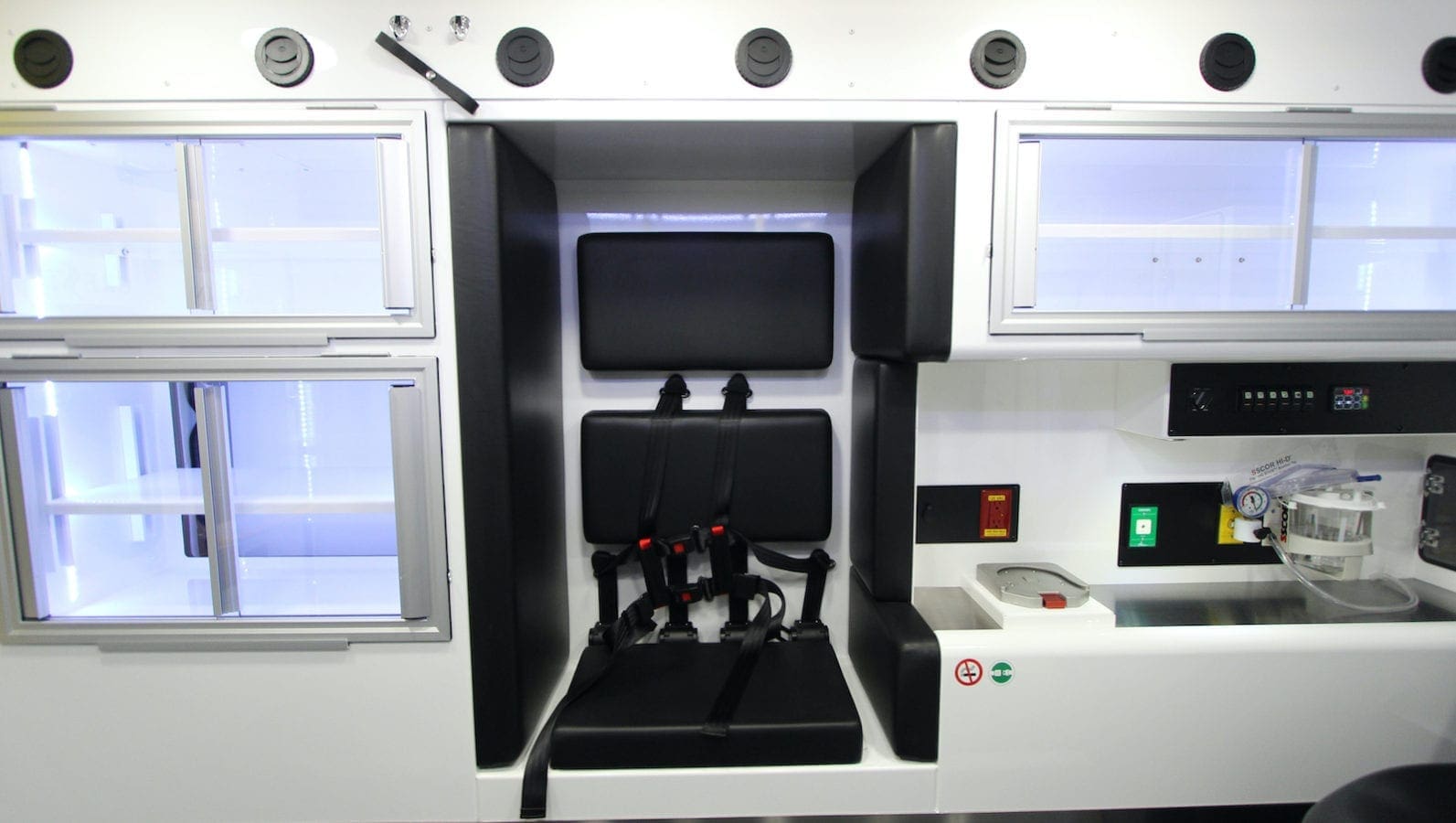

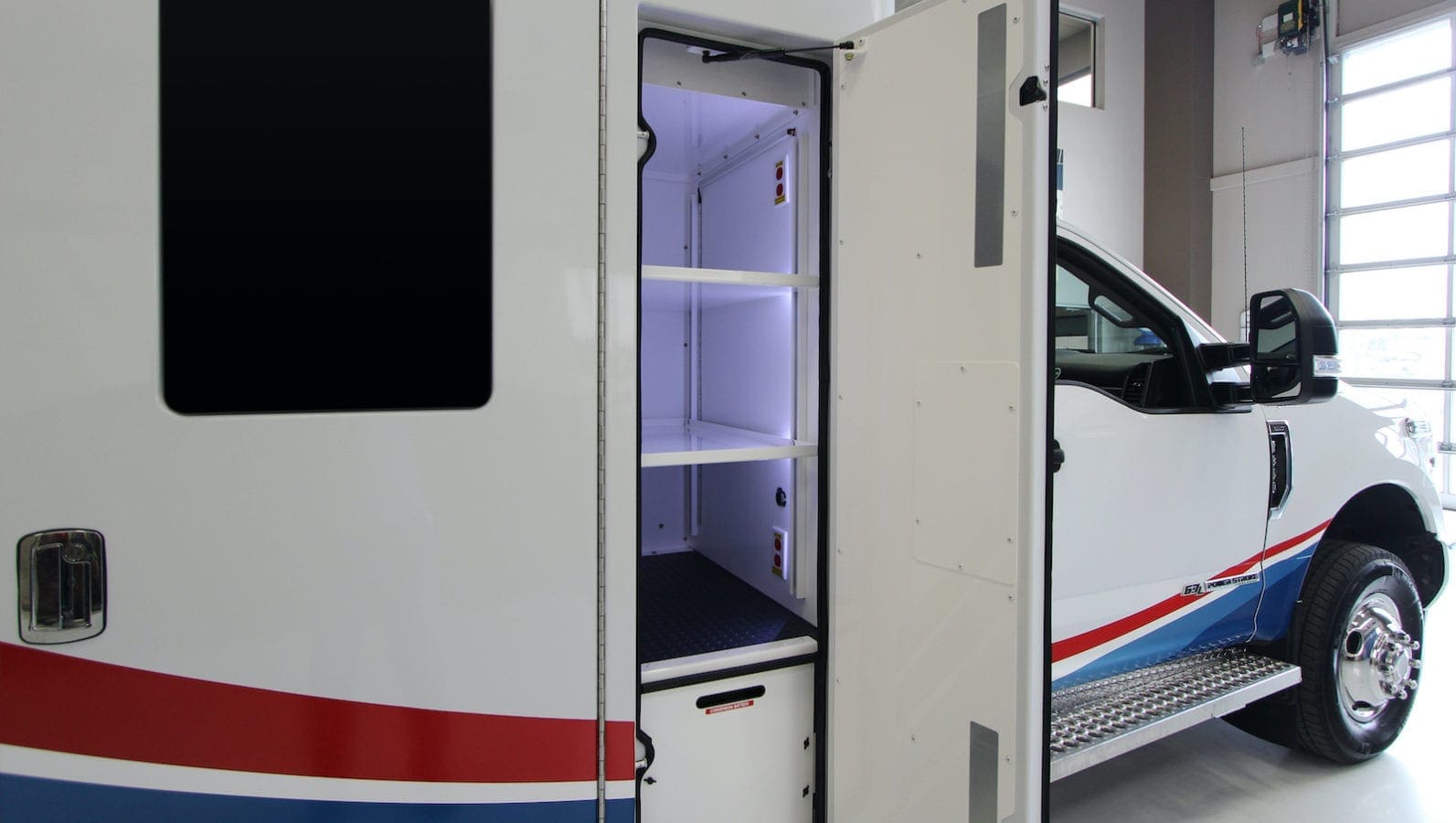

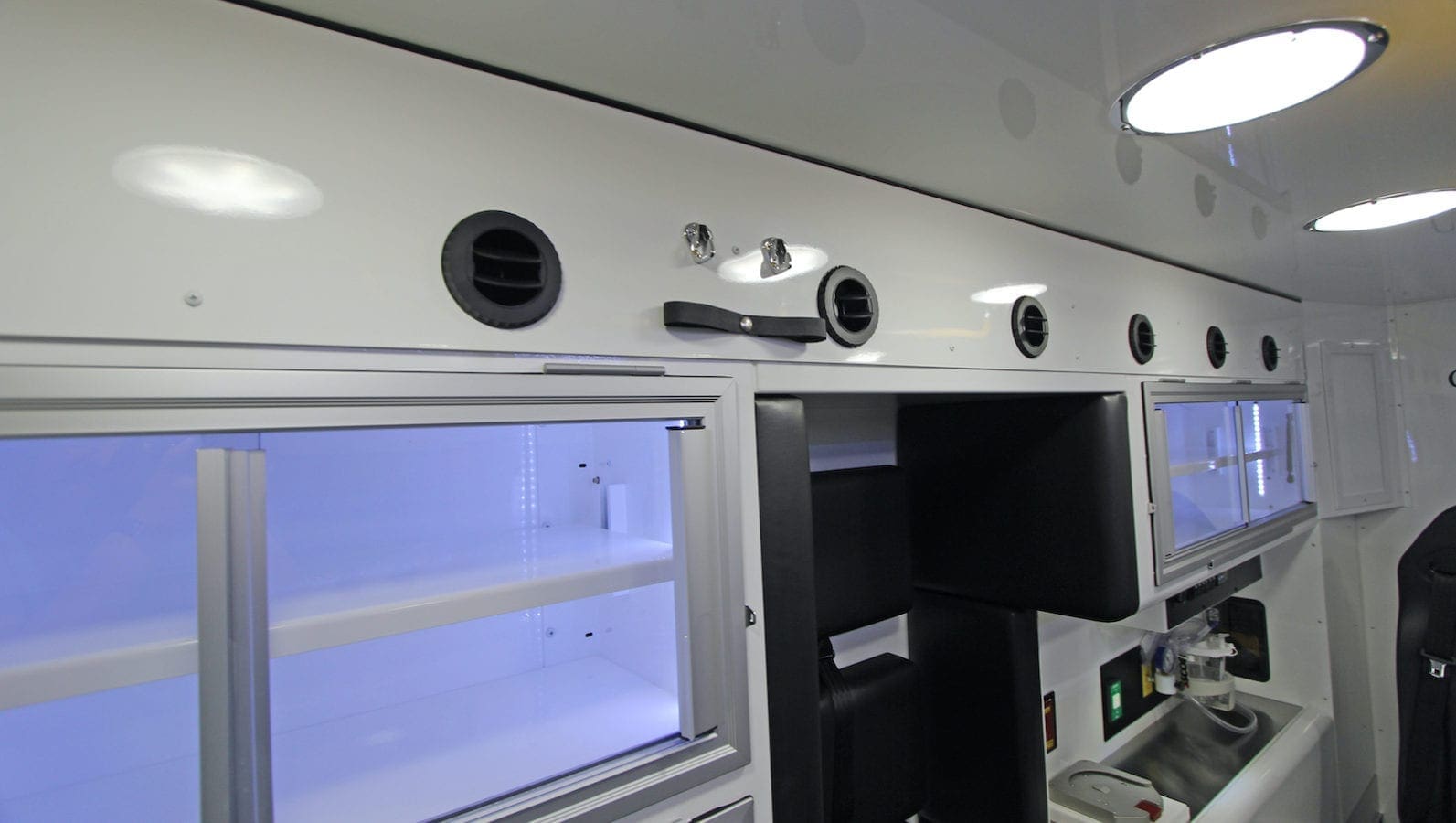

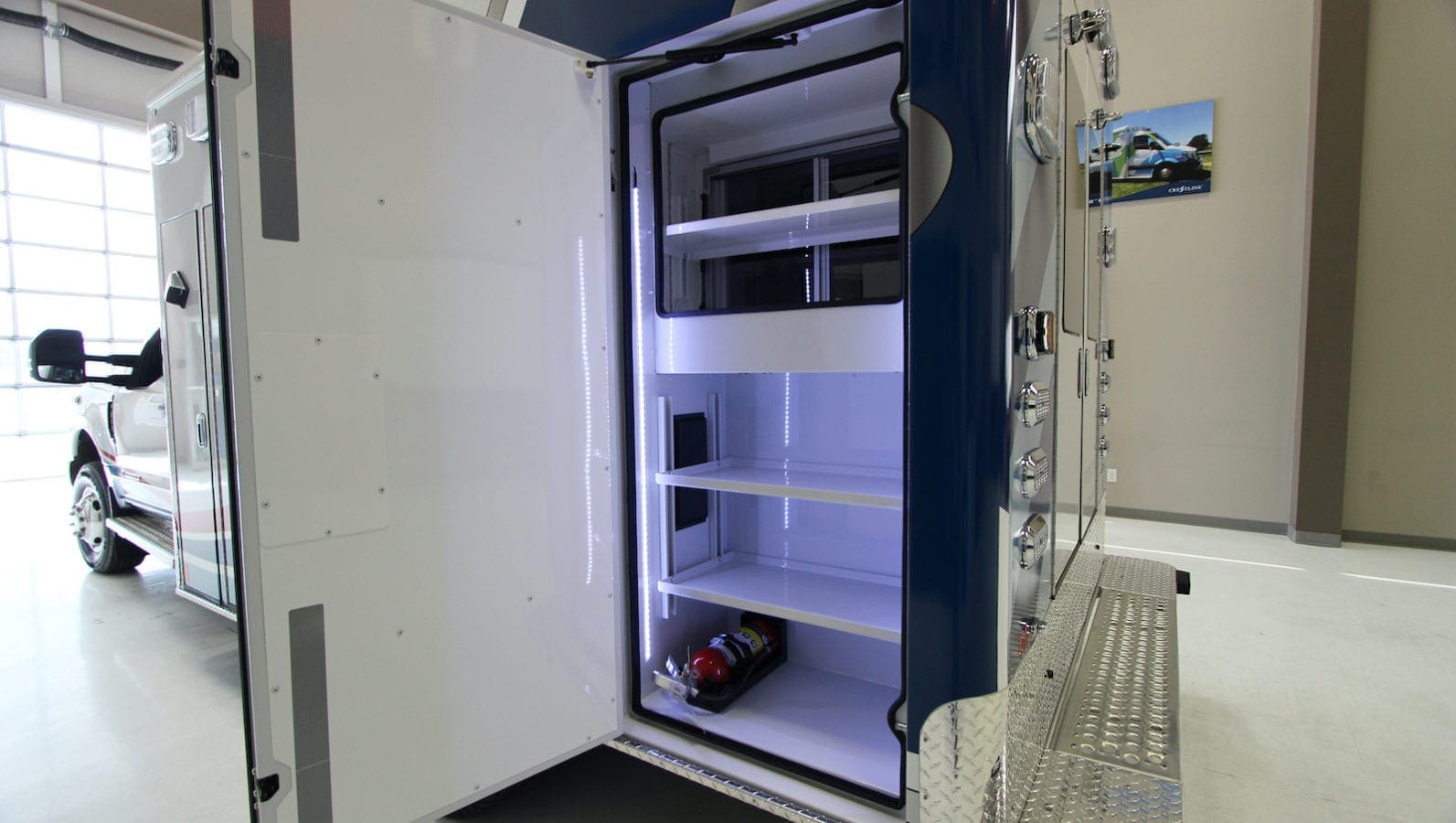

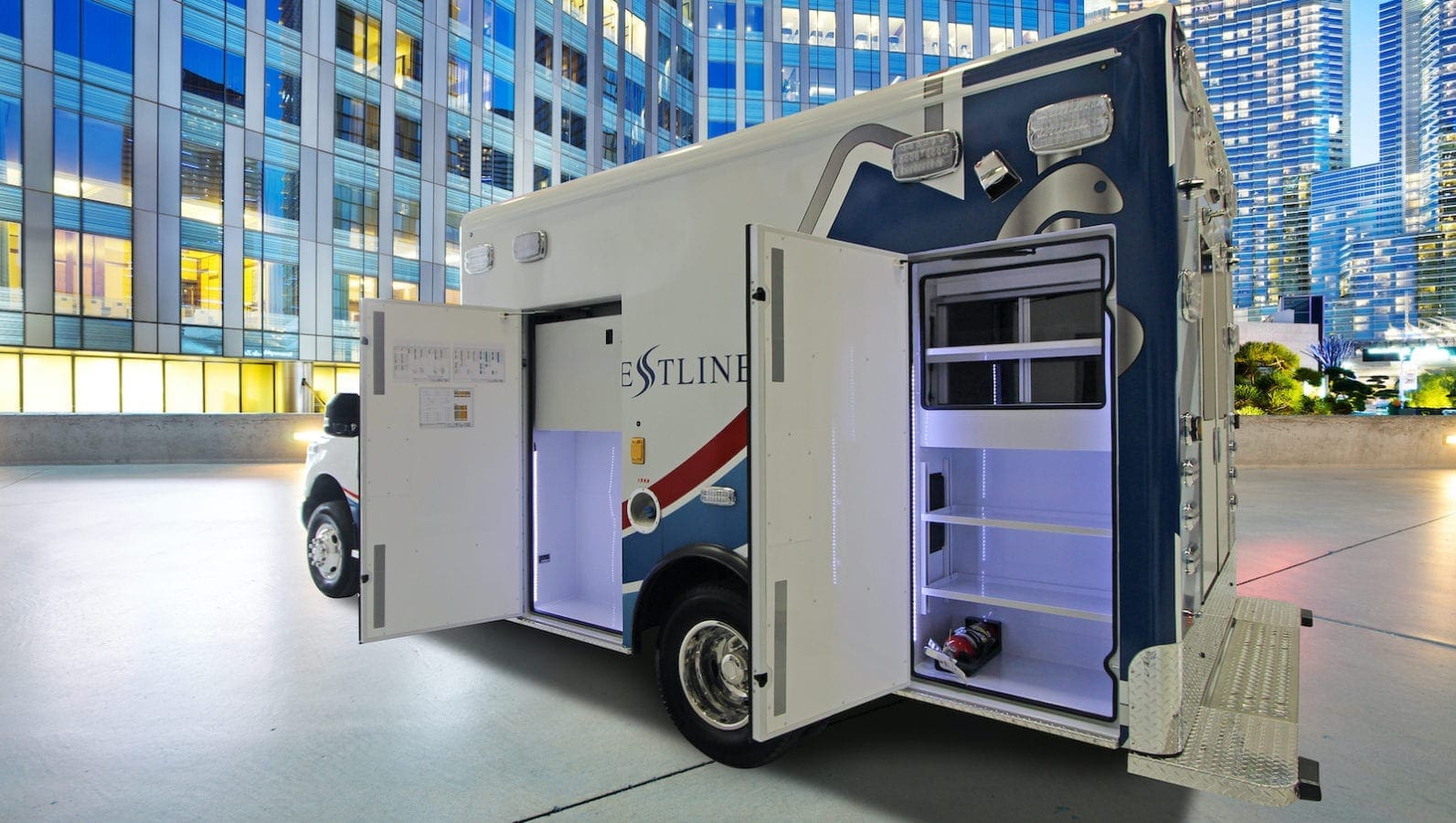

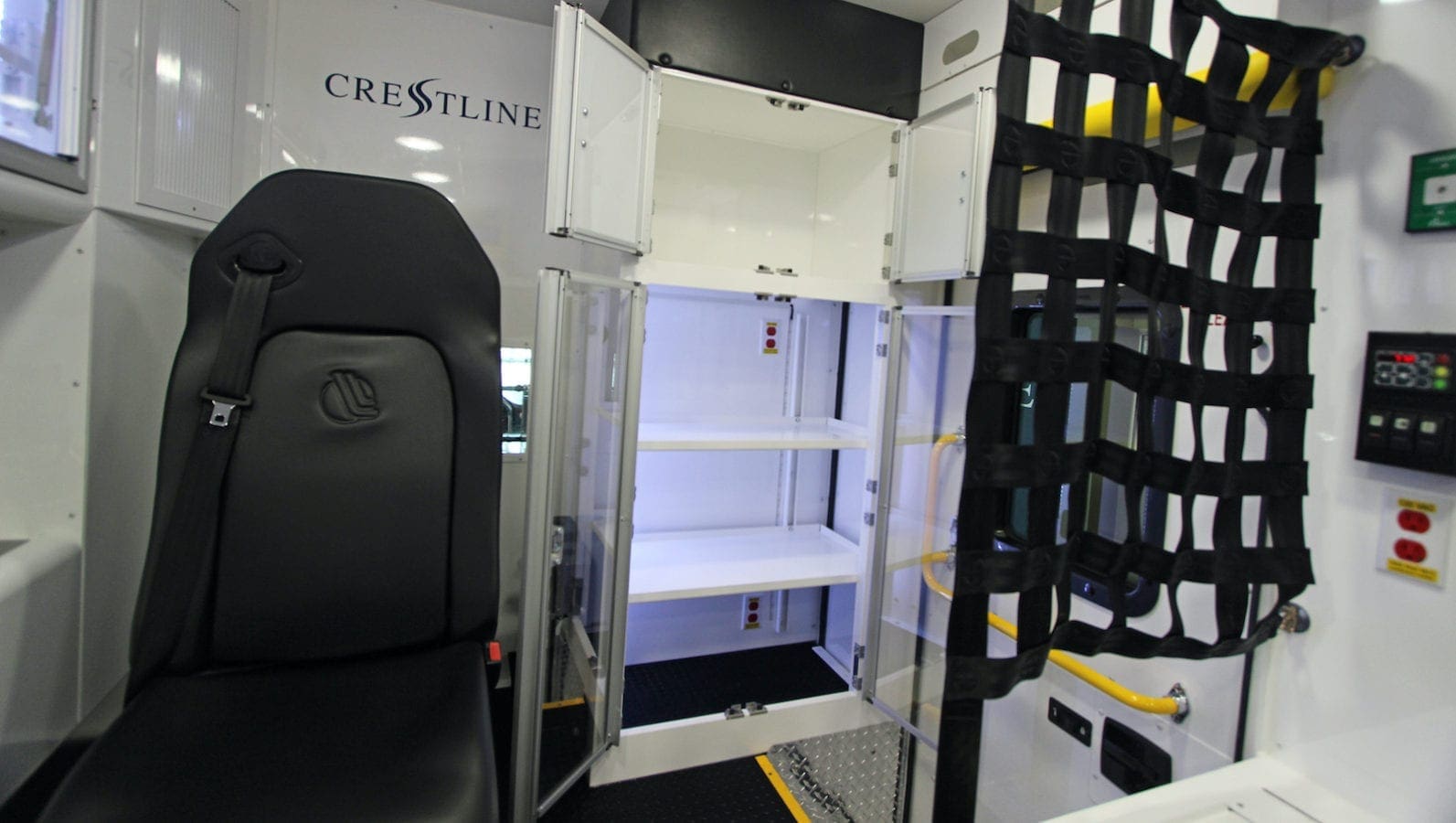

Aluminum Cabinets
- Highly durable and long lasting
- SAE Compliant Hardware
- Lighter than wood reducing overall weight
- Powder coated for durable surfaces and easy cleaning

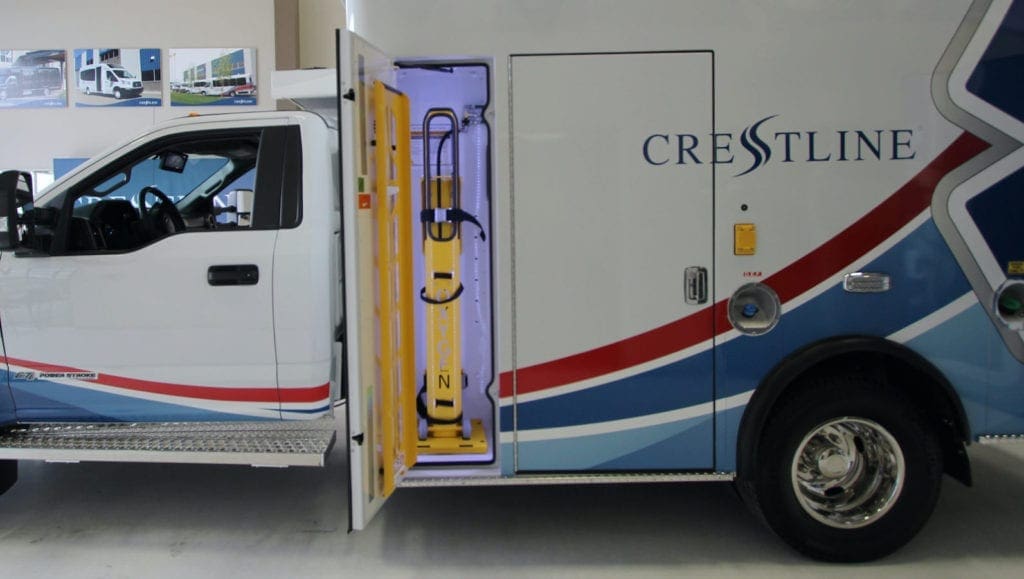

O2 To Go
- Transport oxygen cylinders in a safe and effective manner
- Lightweight and trouble-free with no systems to maintain
- Reduces back injuries by eliminating the need to lift
CrestClean: Antimicrobial Coating
- Antimicrobial coating prevents and protects all interior surfaces from growth of bacteria and destructive microorganisms
- Enhances safety for patients and EMS professionals

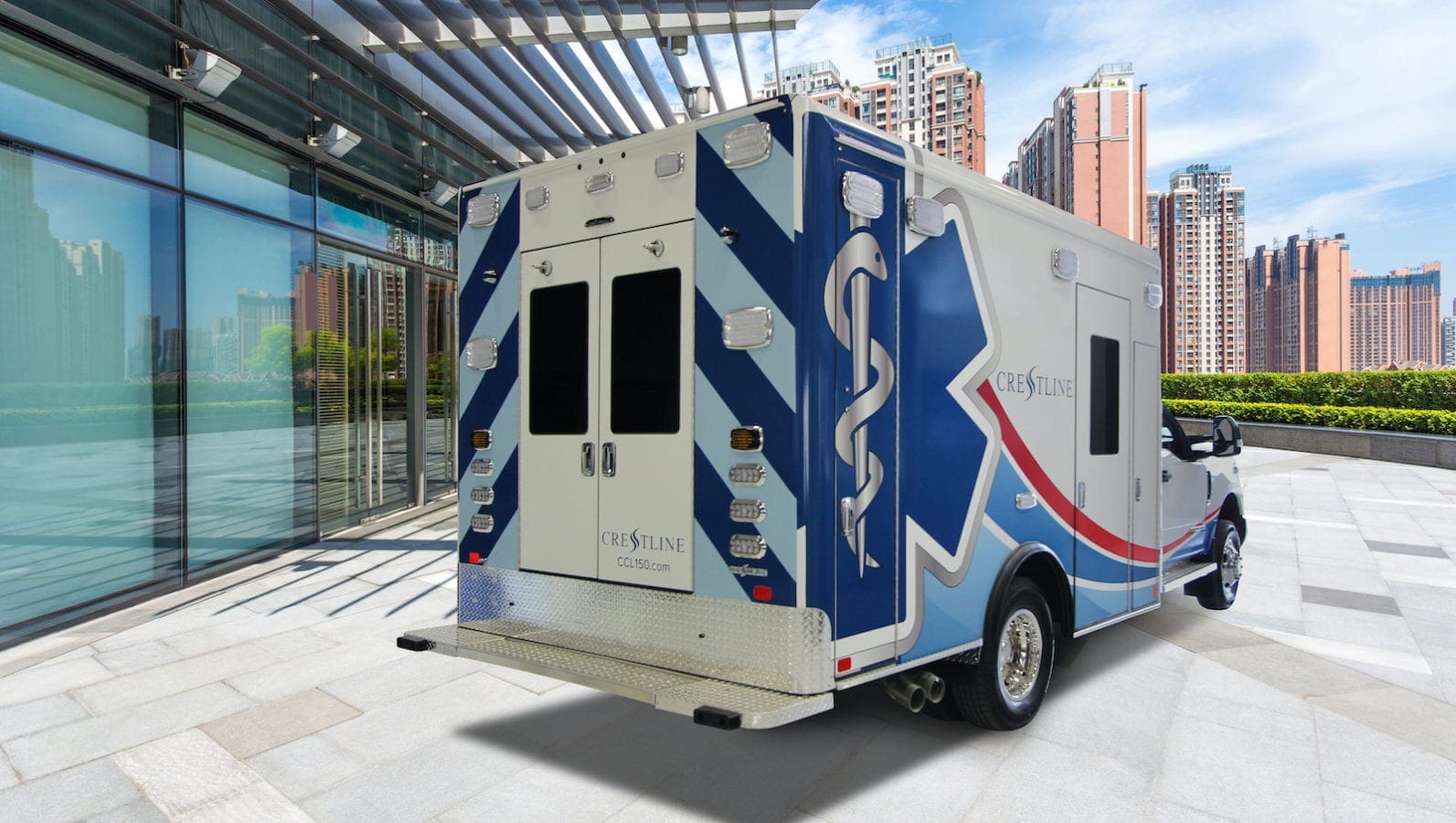

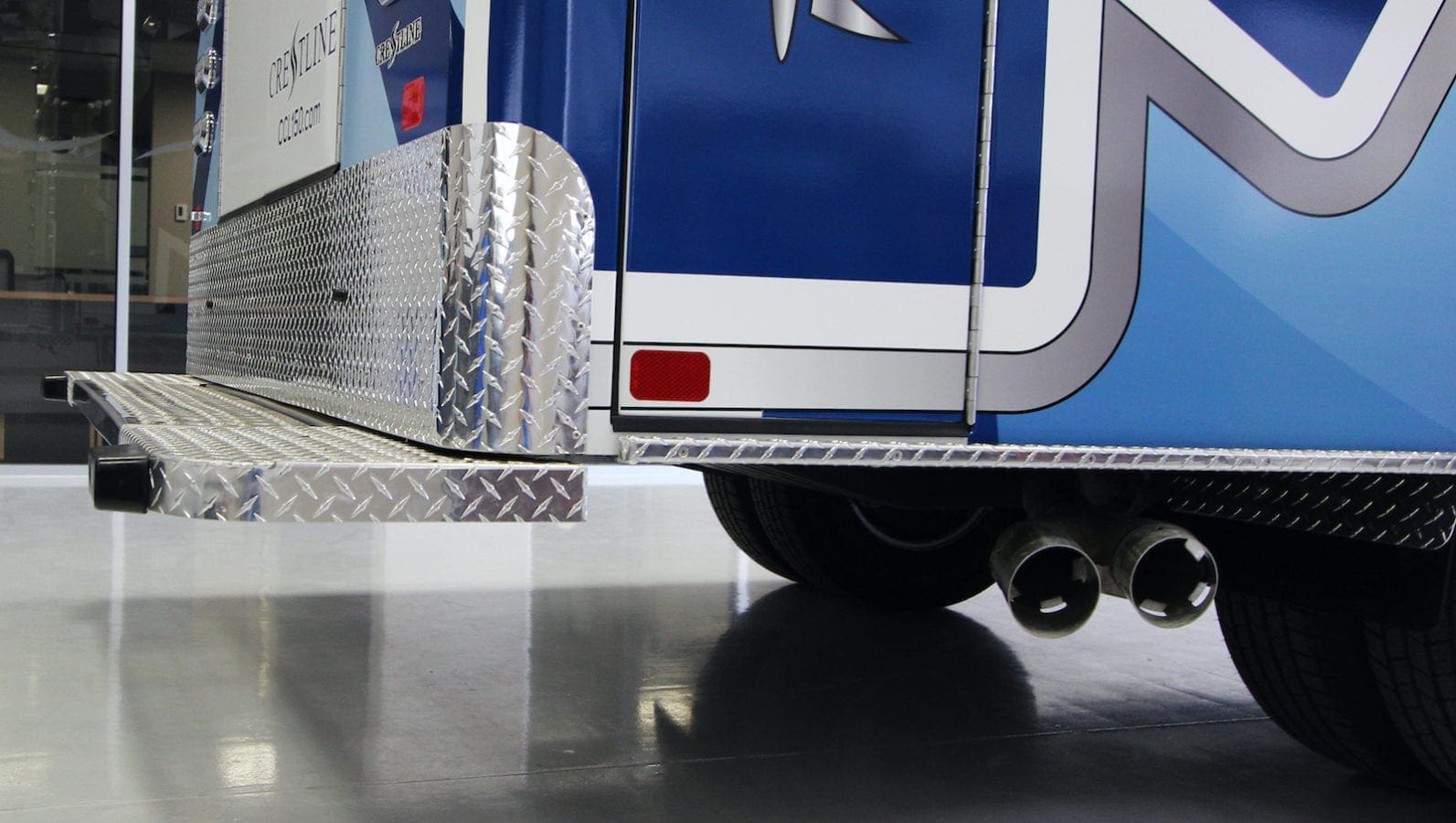

Rear Bumper Design
- Underbody design eliminates damage to module when bumper is impacted, reducing downtime for repair
- Kick-plate protects body from impact damage and road debris, provides protection and reduces corrosion
Remount Advantage
- Remounting the extended life module on a new chassis saves thousands of dollars over purchasing a complete new ambulance
- Minimal vehicle downtime
- Eco-friendly solution
- Crestline Lifetime Structural Warranty applies

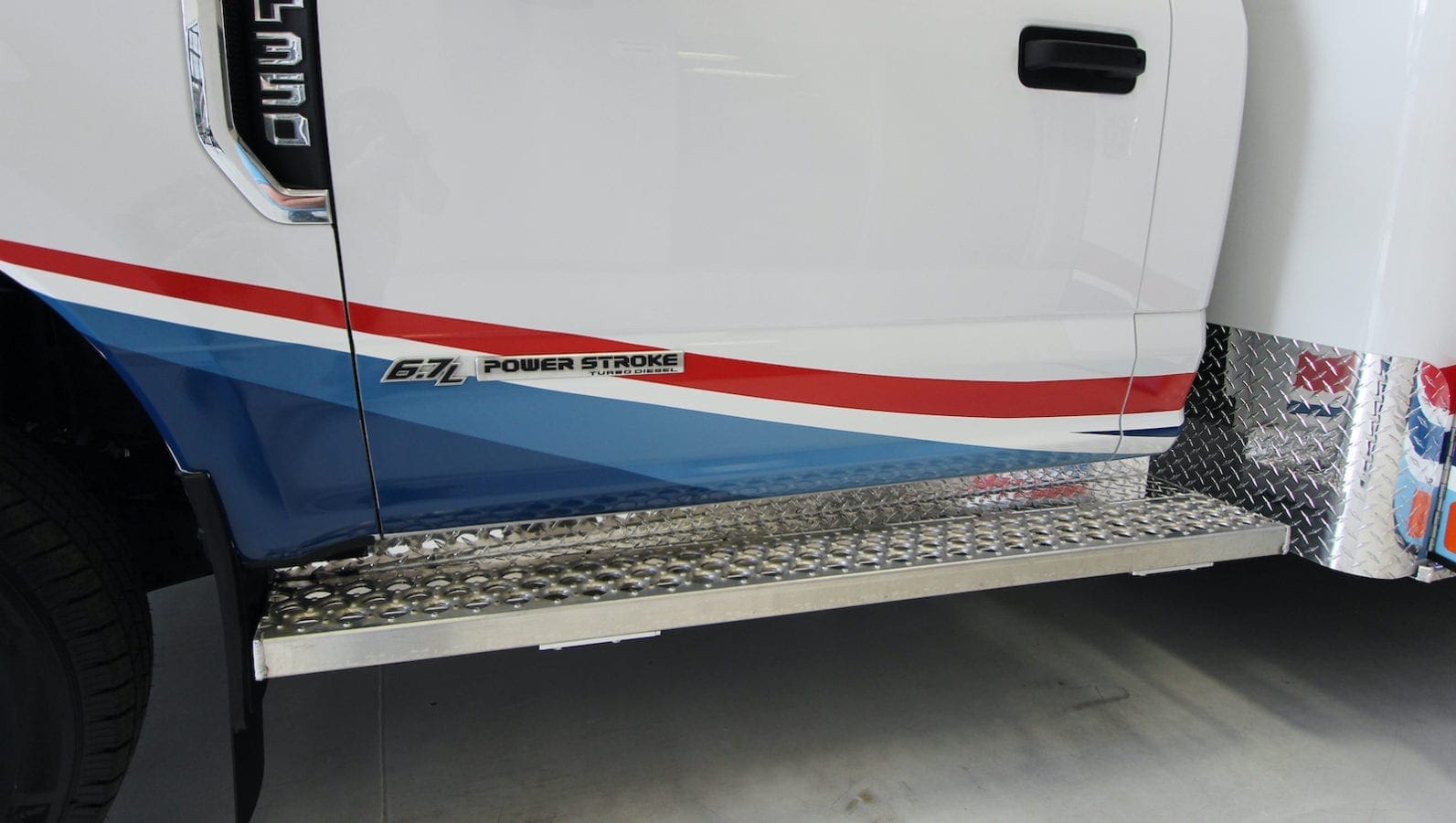

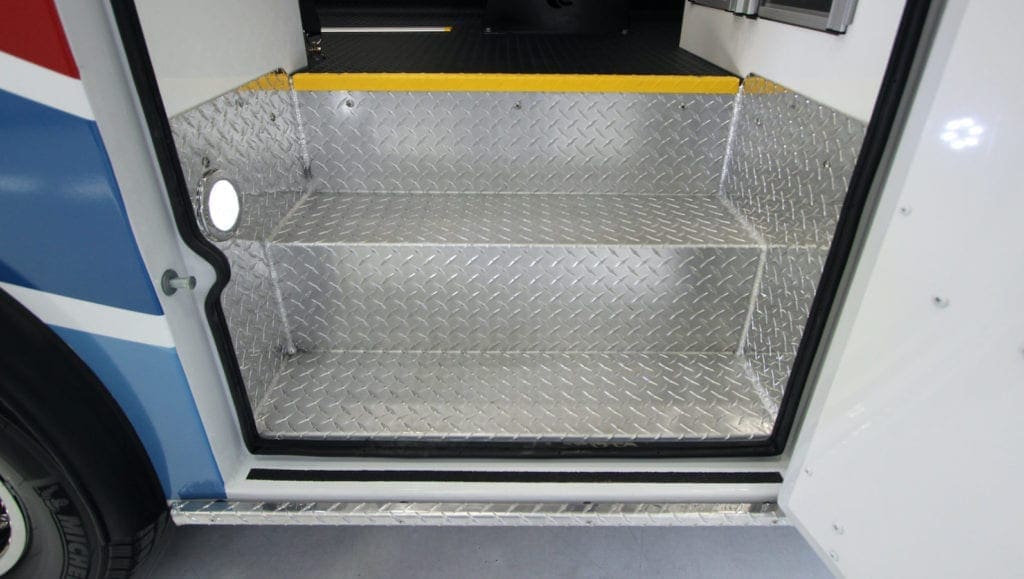

Dual Entry Step
- Safer and easier access with first step lower to ground
- Exclusive ergonomic feature designed for ambulatory patients
- Eliminates repair with no moving parts

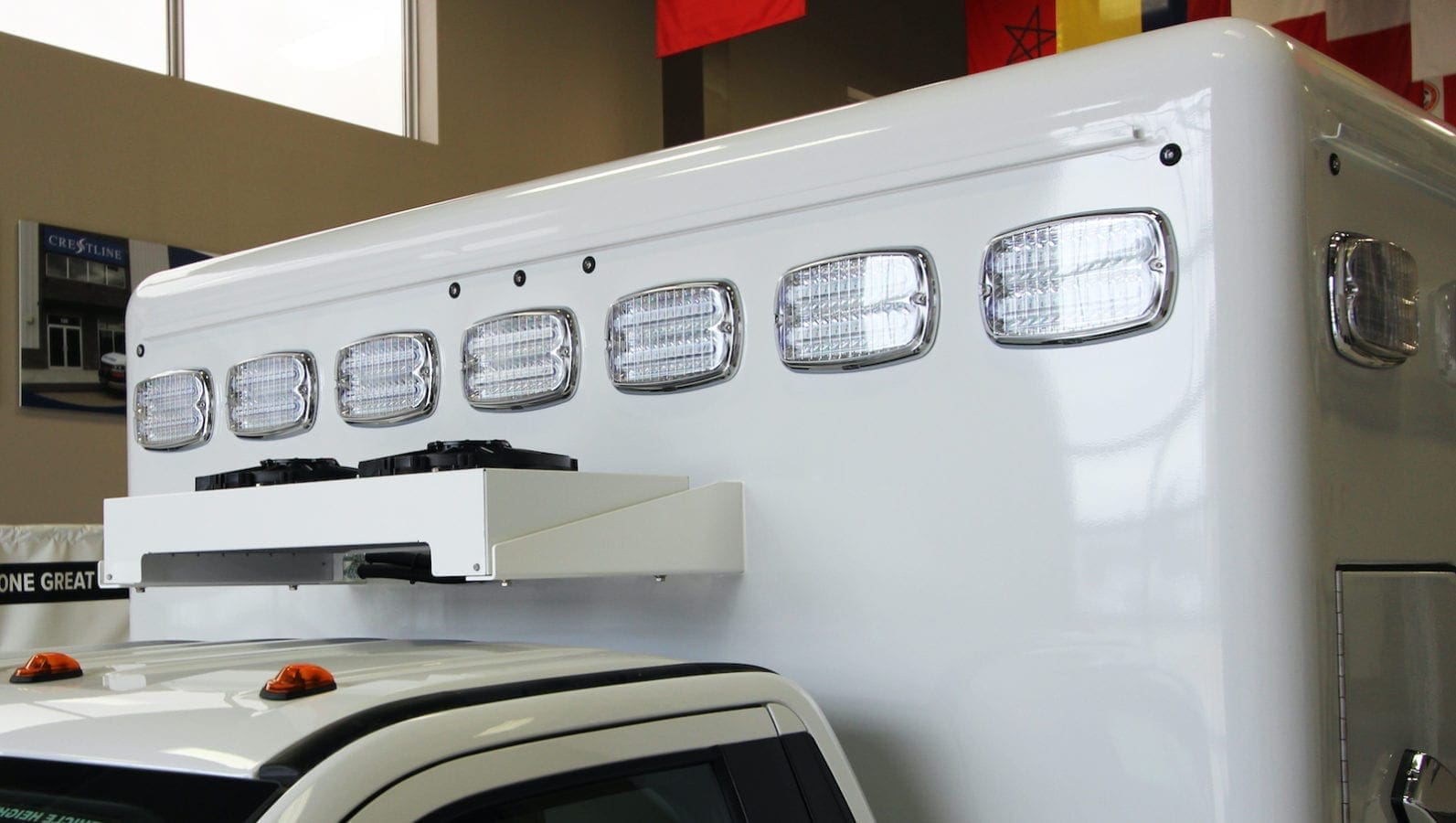

4″ Radius Corners
- Improved aerodynamics, increased fuel efficiency and improved handling

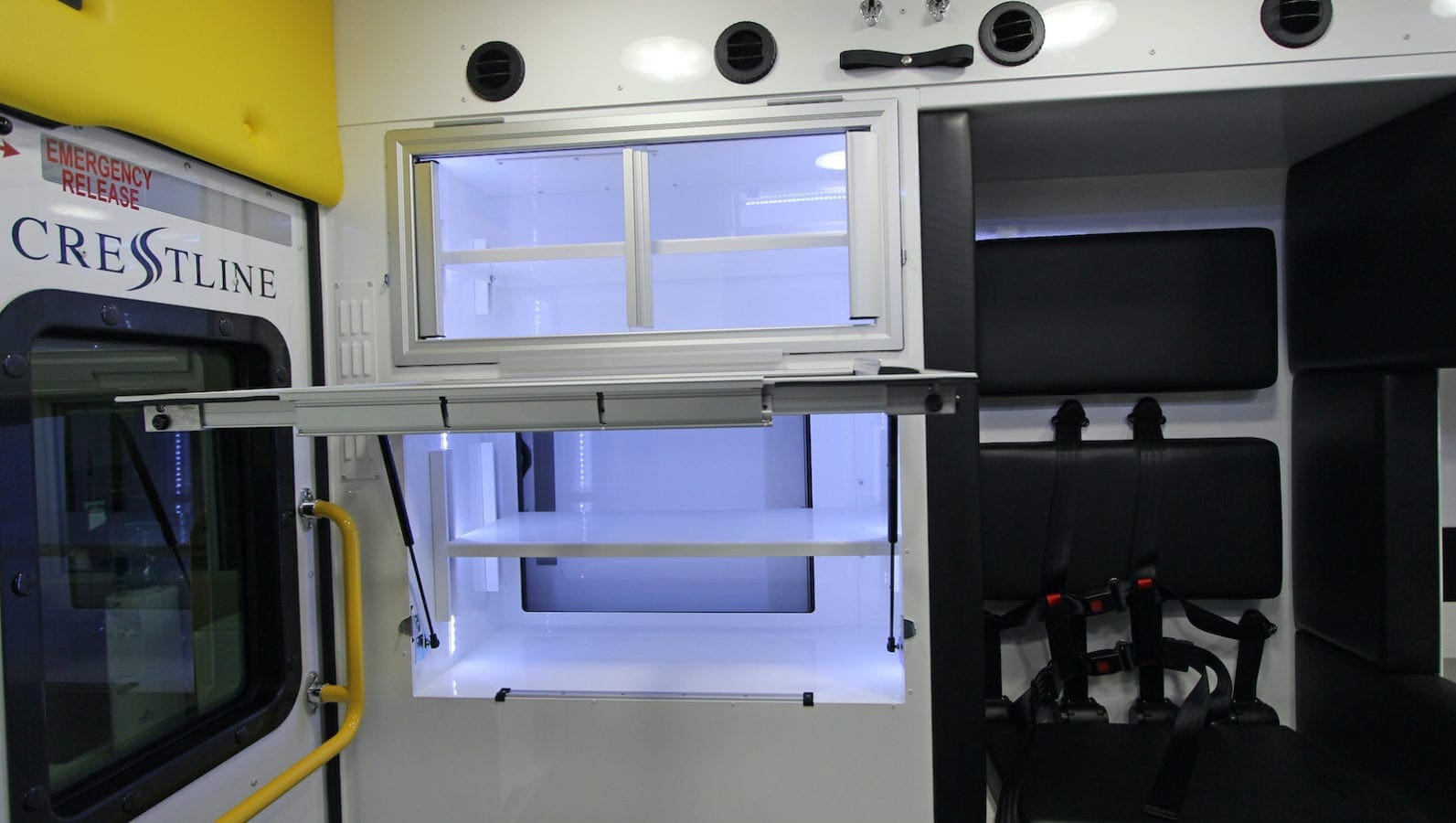

Flush Mount Windows
- Automotive-style windows for better visibility and corrosion resistance
- Lower repair costs
- Prevents leaks
Crestline CCL 150 Type I Ambulance Specifications and Drawings
| Chevrolet 3500 HD 4×4 Cab | Ford F-350 4×4 Cab | |
| Overall Length | 294″ | 291″ |
| Overall Width (with mirrors) | 105″* | 106″ to 113″ (telescopic arms) |
| Overall Height ** | 110″ (optional 105″) | 110″ (optional 106″) |
| Interior Headroom | 72″ (optional 68″) | 72″ (optional 68″) |
| Wheelbase | 171″ | 169″ |
| Average Payload Capacity | 2,800 lbs *** | 2,900 lbs *** |
| Certified GVS V2.0 Standards | Yes | Yes |
| Certified KKK-A-1822F Standards | Yes | Yes |
| Brochure | Download | Download |
| Specifications Sheet | Download | Download |
*Based on GM Body Builder – Subject to change
**4×2 model reduces height by 1-2″
***Payload is dependent on options
4×2 model increases payload by ~400 lbs.
